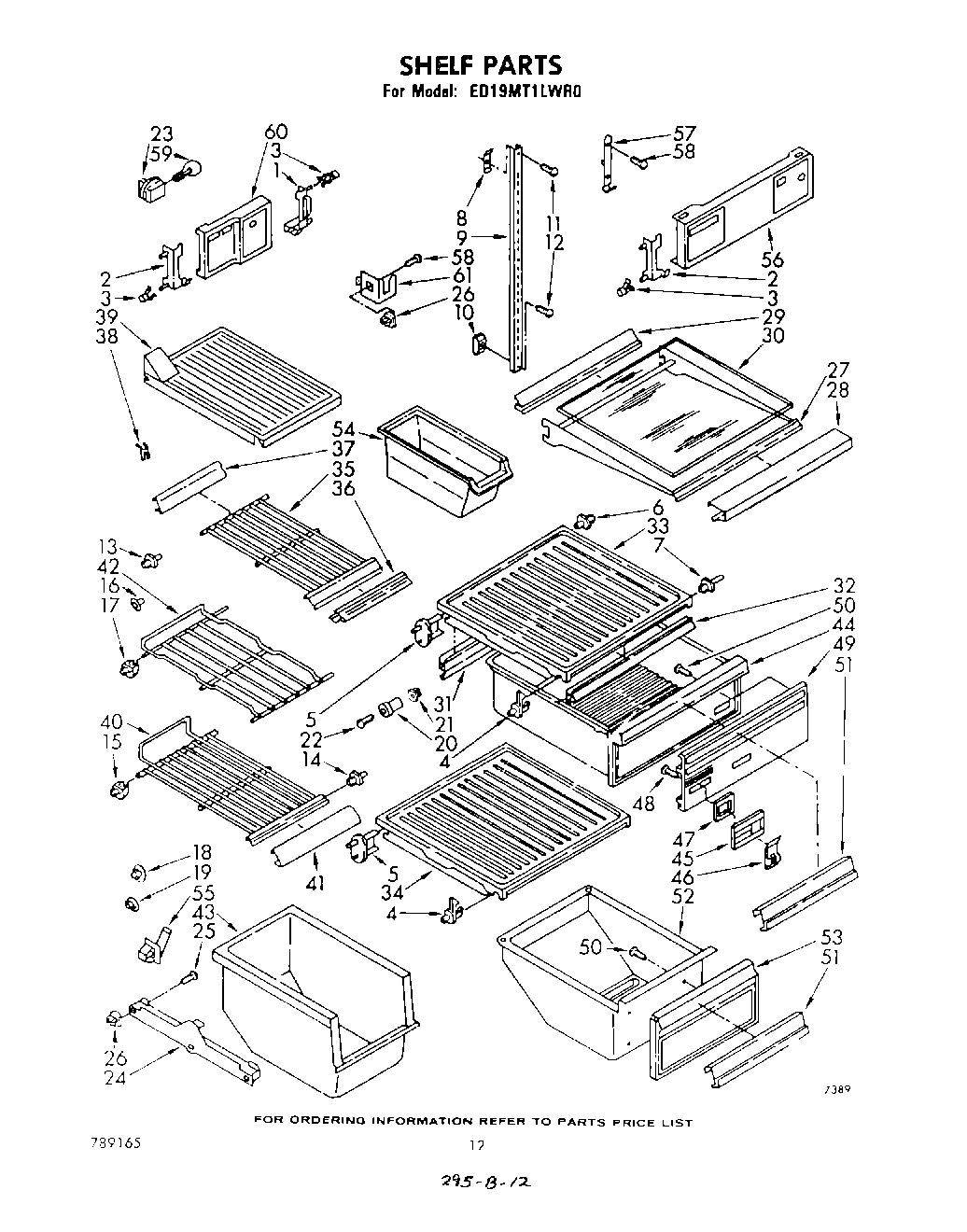

ED19MT1LWR0 07 – SHELF

Products

Position	Product
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Stud, Shelf (2)
5	Shelf Stud (2)
6	Stud (2)
7	Shelf, Stud
8	Screw, Anchor (3)
9	Shelfladder (2)
10	520965 Whirlpool Refrigerator Support
11	Screw, 8 x 1-1/4 (3)
12	Screw, 8-32 x 1-1/4
12	Screw (Repair)
13	Shelf, Stud (2)
14	Stud, Shelf (2)
15	Shelf Support
16	Grommet
17	Shelf Stud Saddle (R.S.)
17	Shelf Stud, Saddle
18	Hole, Plug
19	Retainer Stud
20	Stud
21	Screw Grommet
22	Screw
23	4387478 Whirlpool Refrigerator Light Socket
24	Slide, Freezer Bin
25	Screw, 8 x 1
26	Grommet
27	WPL 936796
28	Trim, Shelf Front
29	Reflector, Cantilever Shelf
30	Shelf, Glass Cantilever
31	Crisper Gasket Rear
32	Crisper Gasket Front
33	Pan Slide & Cover (Crisper)
34	Pan Slide & Cover (For Platinum Model Only)
34	Pan Slide & Cover
35	Shelf, Freezer
37	Shelf, Reflector
38	Clip, Reflector
39	Solid Shelf
39	Solid, Shelf
40	Shelf, Ice Cube Pan
41	Trim, Shelf Front
42	Shelf, Ice Cube
43	WPL 935319
43	Bin, Freezer (For Platinum Model
44	Pan Crisper
45	Housing, Humidity Control
46	Slide, Humidity Control
47	Seal, Humidity Control
48	Screw, 6-19 x 7/16
49	Front Cover, Crisper (For Platinum Model Only)
49	Front Cover, Crisper
50	WP488729 Whirlpool Refrigerator Door Screw
50	Screw (Repair)
51	Overlay, Front Cover
52	Pan (Meat)
53	Front Cover, Meat Pan
53	Front Cover, Meat (For Platinum Model Only)
54	WP982704 Whirlpool Refrigerator Container
55	Retainer, Plug
56	Light Lens
57	Support, Light Lens
58	W11624204 Whirlpool Screw
59	RANGE ONLY 40W 120V APPL BULB
60	Light Lens, Freezer
61	Bracket, Receptacle
