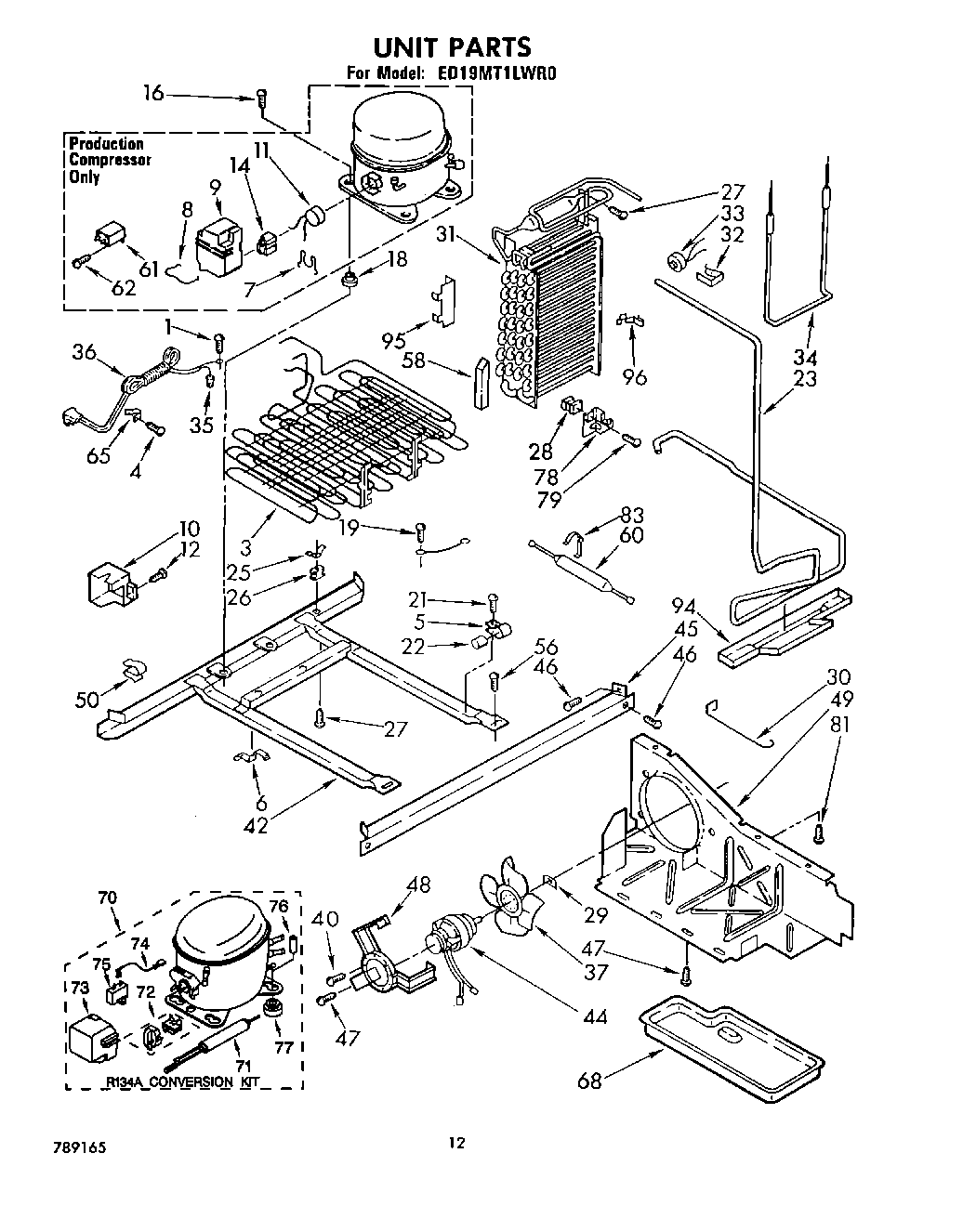

ED19MT1LWR0 08 – UNIT

Products

Position	Product
1	Screw, 8-32 x 3/8
3	Condenser & Precooler
5	Clamp Tube
6	Clip (2)
7	Spring, Overload
8	case spring
9	relay case
10	Box, Junction
11	Overload
12	WP488729 Whirlpool Refrigerator Door Screw
14	Relay
18	876811 Whirlpool Grommet
19	303776 Whirlpool Dishwasher Screw
22	Dampener (2)
23	Exchanger, Heat
25	Clamp (4)
26	Grommet (4)
27	W11624204 Whirlpool Screw
28	Grommet, Screw (2)
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
37	Fan, Blade
40	Screw, 8-36 x 3/8 (3)
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
61	WPW10662129 Whirlpool Refrigerator Run Capacitor
62	WPW10141625 Whirlpool Refrigerator Screw Assembly
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
78	Support, Evaporator
79	SCREW
81	Screw, 8-32 x 1/2
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	VALVE, ACCESS (5/8“)
96	876764 Whirlpool Refrigerator Primary Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	Heater, Clamp (4)
96	VALVE, ACCESS (1/2“)
96	978027 Whirlpool Refrigerator Primary Valve
96	WP978025 Whirlpool Refrigerator Valve
96	978030 Whirlpool Refrigerator Valve
