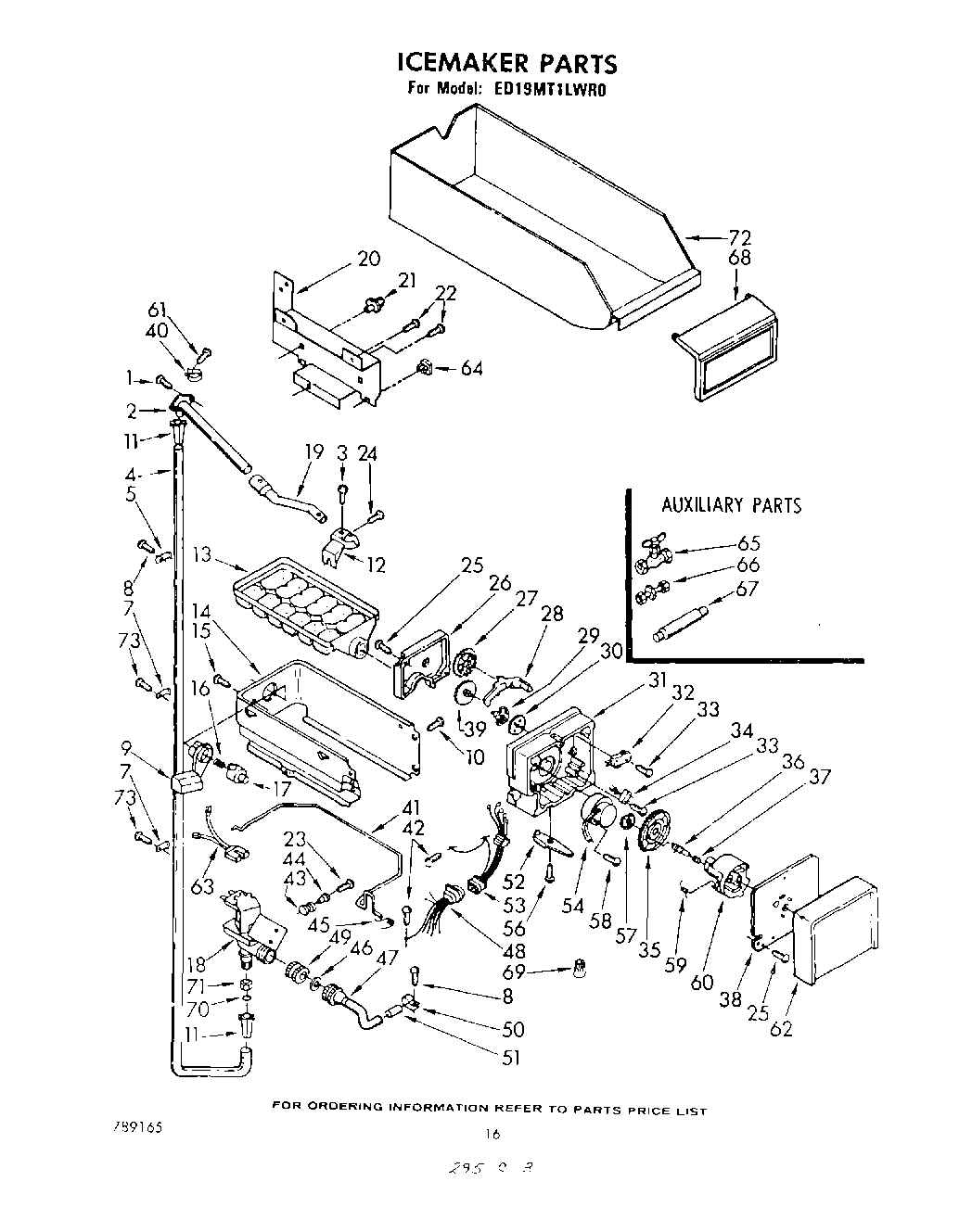

ED19MT1LWR0 09 – ICEMAKER

ED19MT1LWR0 09 – ICEMAKER

Written by

in

ED19MT1LWR0 09 – ICEMAKER

Products

Position	Product
1	WP98165 Whirlpool Screw
2	WP2196157 Whirlpool Fill Tube
4	W10823511 Whirlpool Refrigerator Water Tube
5	WPL 836077
7	Clamp, Water Line (2)
8	W11624204 Whirlpool Screw
9	Support & Cam
10	Screw, 8-18 x 5/8 (4)
11	4387491 Whirlpool Refrigerator Insert
12	Collar, Inlet
13	627711 Whirlpool Refrigerator Ice Flex Tray
14	Frame
15	Screw, 8-18 x 1/2
16	Spring, Bearing
17	Bearing
18	4318047 Whirlpool Water Valve
19	Tube, Water Inlet
20	Bracket, Mounting (Ice Maker)
21	Stud, Frame Mounting (2)
22	Screw, 8 x 3/8
23	WP488163 Whirlpool Refrigerator Screw
24	WP488729 Whirlpool Refrigerator Door Screw
25	W11693756 Whirlpool Screw Assembly
26	Cover, Gear
27	Gear & Cam
28	Lever, Cam
29	Cam & Pinion
30	Gear
31	Housing, Control
32	627512 Whirlpool Refrigerator MICR Switch
33	Screw, 4-24 x 3/4
34	Switch, Water Valve
35	Gear, Drive
36	Pin, Drive
37	Spring, Drive Pin
38	Plate
39	Gear & Pinion
40	WP488878 Whirlpool Refrigerator Tube Clamp
41	Arm, Shutoff
42	Screw, Ground
43	Grommet (2)
44	Spacer (2)
45	Spring, Shutoff Arm
46	WP16123 Whirlpool Washer
47	Tube, Inlet
48	Harness (Cabinet)
49	Nut, Valve
50	Clamp Tube
51	WP2158826 Whirlpool Refrigerator Dampener
52	Lever, Shutoff
53	Harness (Ice Maker)
54	Motor
56	WP488787 Whirlpool Refrigerator Screw
57	Gear, Timer
58	Screw, 6-20 x 3/8 (2)
59	Spring, Cam
60	Cam (Includes Illus. 37 & 59)
61	WP965173 Whirlpool Dishwasher Screw
62	Cover, Front
62	Cover, Front
63	Wiring Assembly (Water Valve)
64	Grommet (2)
65	Valve, Shut-Off
66	Union, 1/4“ x 3/16“
67	Filter Kit
68	WPL 1101204
68	Front, Ice Compartment
69	Wire Connector
70	“O“ Ring Seal (4)
71	WP627018 Whirlpool Refrigerator Nut
72	WPL 1101205
72	WPL 942233
73	WP489069 Whirlpool Compactor Screw
