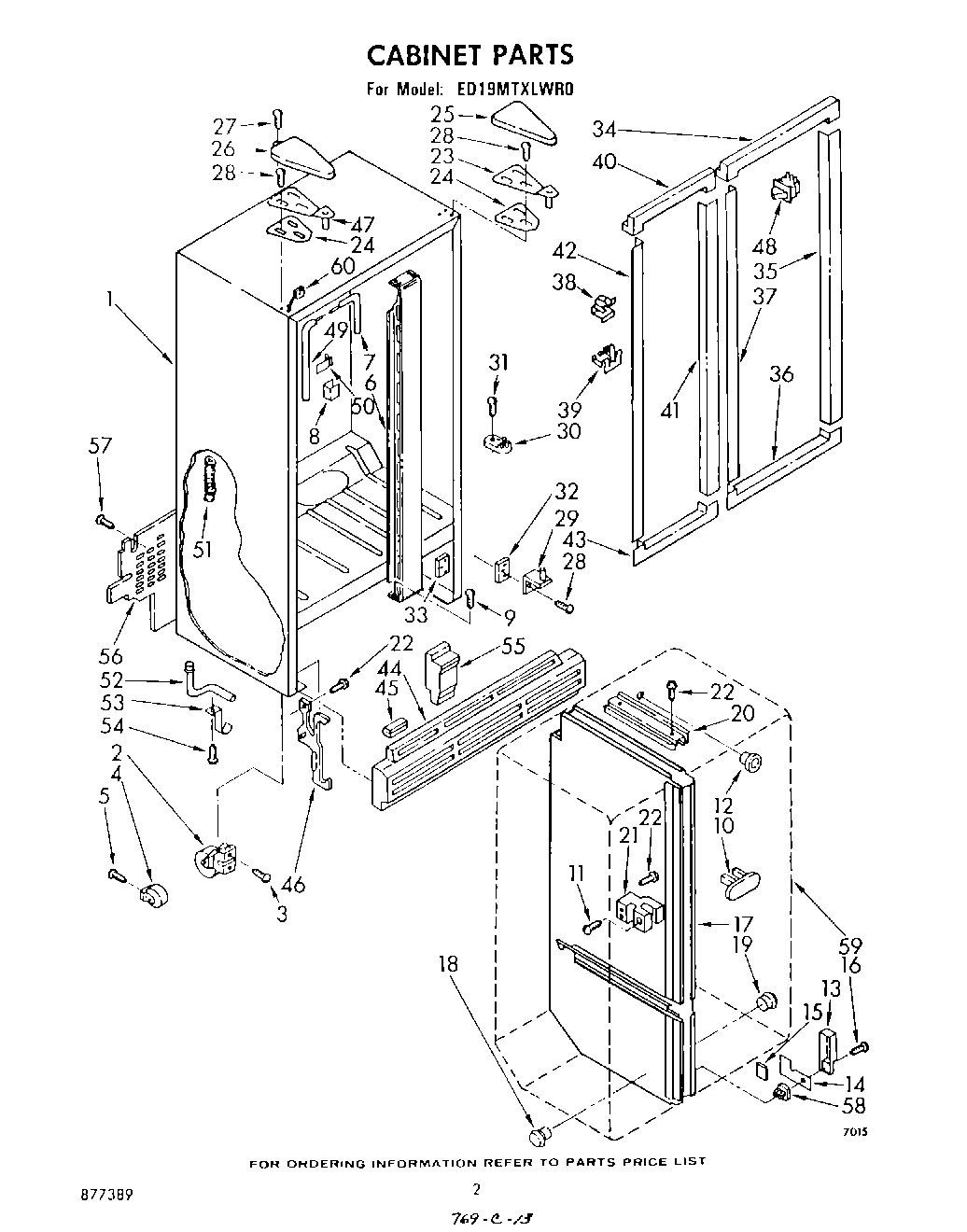

ED19MTXLWR0 02 – CABINET

ED19MTXLWR0 02 – CABINET

Written by

in

ED19MTXLWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail & Bracket Assembly (Coffee)
6	Center Rail & Bracket Assembly (Golden Harvest)
6	Center Rail & Bracket Assembly (White)
6	Center Rail & Bracket Assembly (New Avocado)
6	Center Rail & Bracket Assembly (Almond)
7	WPL 851874
8	Clip, Heater (2)
9	WP308685 Whirlpool Microwave Screw
9	Screw, 8 x 3/8
10	WPL 836080
11	Screw (2)
12	Grommet, Wiring
13	Escutcheon Meat
14	Slide, Meat Pan Control
15	Pad, Foam
16	Screw, 8-15 x 1/2 (4)
17	Divider, Mullion
18	Retainer, Hole Insert
19	Insert, Hole
20	WPL 842435
21	WPL 836079
22	W11624204 Whirlpool Screw
23	Hinge, Top
24	Shim, Hinge
25	1119787 Whirlpool Refrigerator Hinge Cover
25	Hinge Cover (Golden Harvest)
25	Hinge Cover (New Avocado)
25	Hinge, Cover (Coffee)
26	Hinge Cover (Coffee)
26	Hinge Cover (New Avocado)
26	WP1129262 Whirlpool Refrigerator Cover
26	Hinge Cover (Golden Harvest)
27	Screw, 6-32 x 1/2
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	Hinge Bottom (L.H)
29	Hinge Bottom (R.H)
30	WPW10329686 Whirlpool Door Cam Black
31	WP486579 Whirlpool Air Conditioner Screw
31	Screw (Repair)
32	Shim, Bottom Hinge
33	Tap Plate
34	WPL 843335
35	WPL 842178
36	WPL 836446
37	WPL 836213
38	Breaker, Clip
39	Clip, Breaker Retainer (2)
40	WPL 843334
41	WPL 836108
42	WPL 836174
43	WPL 836447
44	Exterior Grille (New Avocado)
44	Exterior Grille (White)
44	Exterior Grille (Coffee)
44	Exterior Grille (Almond)
44	Exterior Grille (Golden Harvest)
45	Bumper, Grille
46	WPL 844614
47	Hinge, Top Freezer
48	W11384469 Whirlpool Door Switch
49	Heater, Stile
50	WPL 935663
51	WPL 836068
52	Extension, Drain Fitting
53	Cup, Drain Extension
54	Screw, 8-15 x 3/8
55	WPL 836372
56	WPL 850457
58	Grommet
59	WPL ARI25682A3
60	Connector, Plug
