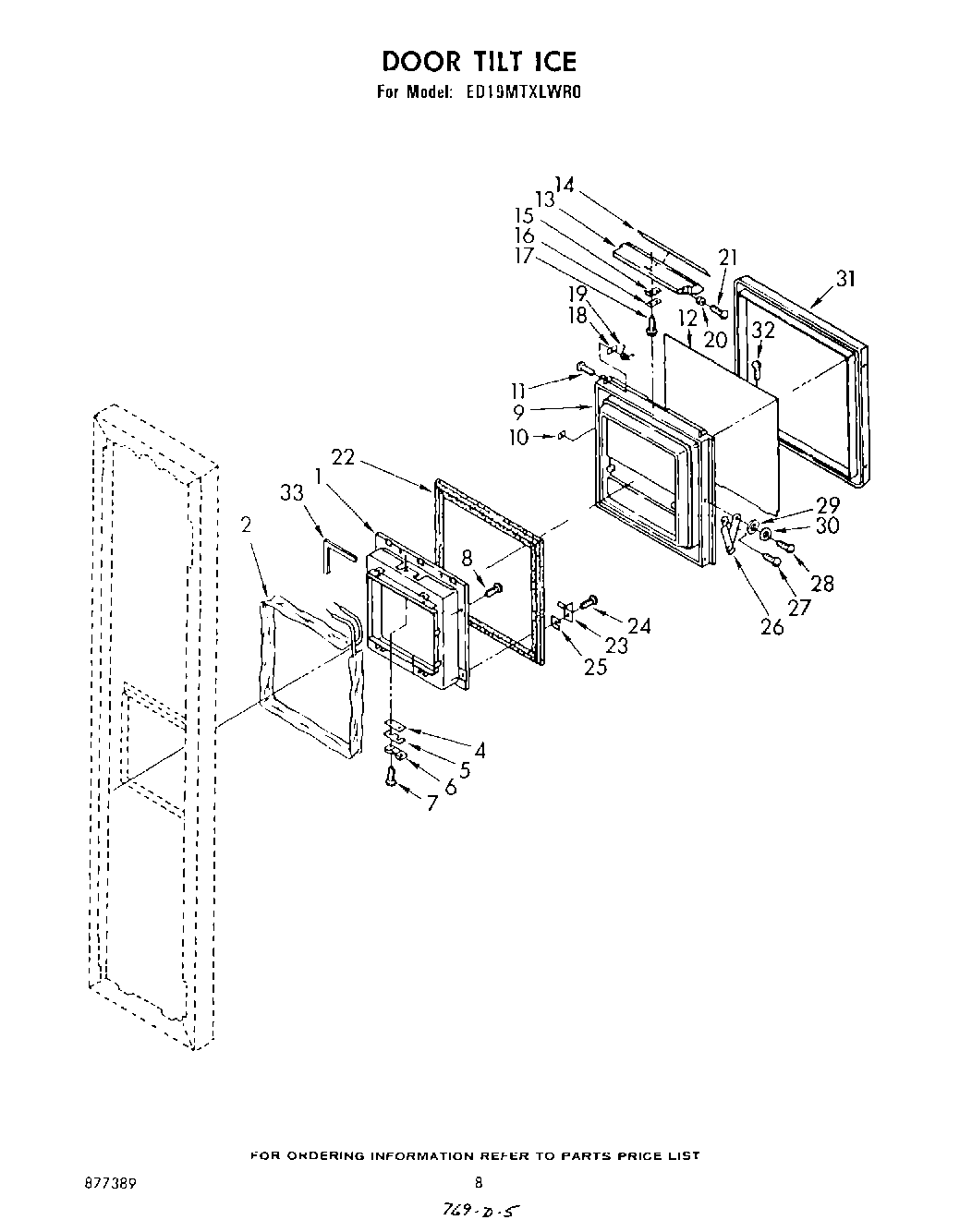

ED19MTXLWR0 05 – DOOR TILT ICE

Products

Position	Product
1	Housing, Tilt Ice
2	Heater, Housing
4	Retainer, Strike
5	Shim, Latch Strike
6	WPL 988649
7	WP488787 Whirlpool Refrigerator Screw
9	Door, Tilt Ice
11	W11693756 Whirlpool Screw Assembly
11	Screw
12	Overlay, Door
13	WPL 988629
14	WPL 988663
15	WPL 988647
16	WPL 988725
17	WP488627 Whirlpool Refrigerator Screw
18	WPL 988650
19	WPL 988727
19	WPL 988726
20	WPL 988730
22	Gasket Door
23	WPL 936910
24	WP488163 Whirlpool Refrigerator Screw
25	WPL 988728
26	WPL 988658
27	WPL 488953
28	WP488729 Whirlpool Refrigerator Door Screw
29	WPL 488944
30	WPL 488945
31	Front, Cover Housing (Almond)
31	WPL 935056
31	WPL 935055
31	Front, Cover Housing (White)
32	WPL 487820
33	Seal
