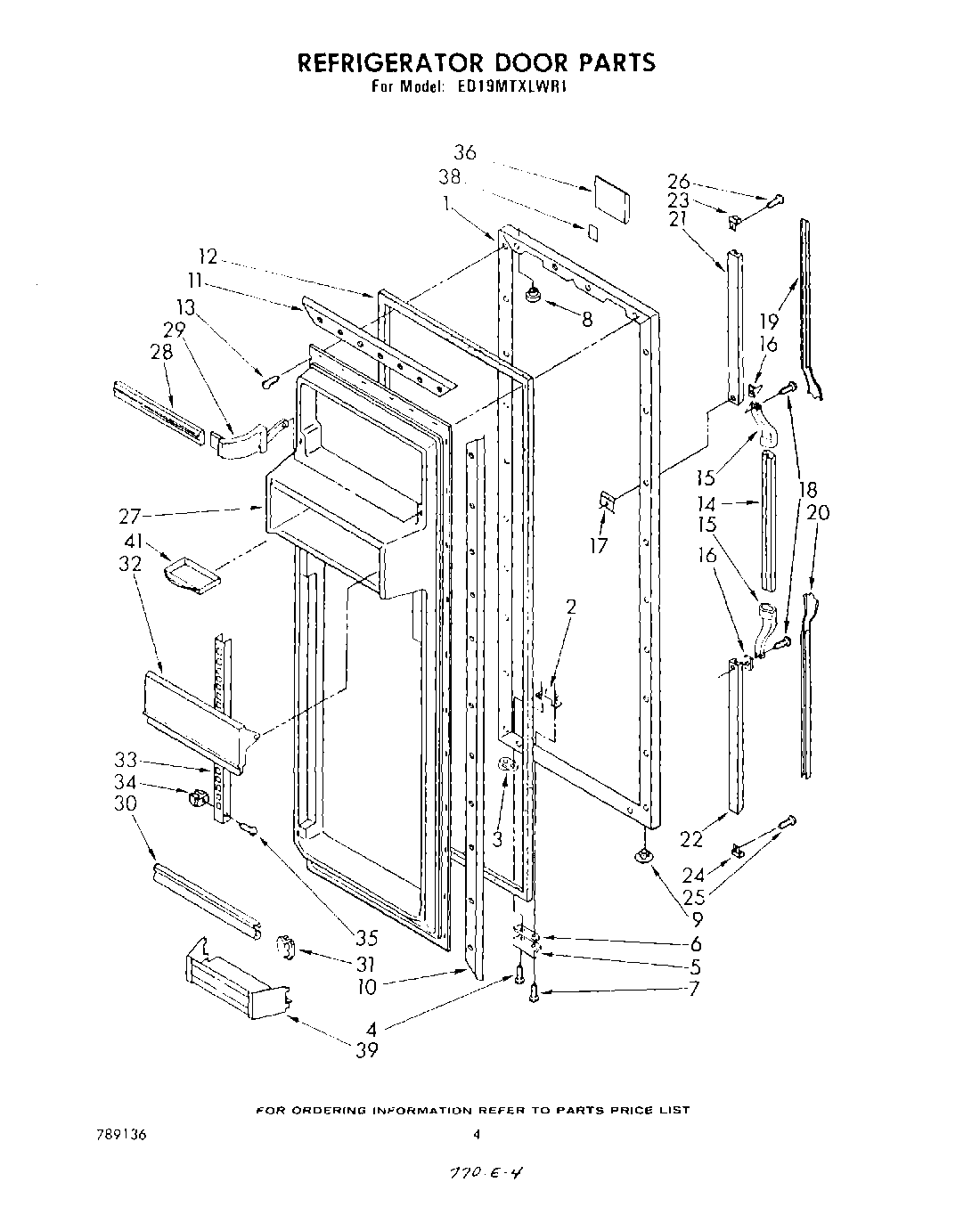

ED19MTXLWR1 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Avocado)
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (Coffee)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	SCREW
14	Handle Center (Avocado)
14	Handle Center (Golden Harvest)
14	Handle Center (White & Coffee)
14	Handle, Center (Almond)
14	Handle Center (Toast)
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Insert, Handle
20	Insert, Handle
21	Retainer Insert
22	Retainer, Insert
23	End Cap
24	End Cap, Retainer
25	Screw, 6-32 x 1/2
26	Screw
27	Insert Door, Panel
28	WPL 988746
29	WP839904 Whirlpool Refrigerator Endcap Trim
30	Trim Door Shelf
31	Retainer Door Trim
32	WPL 935352
33	Shelf Ladder
34	Expansion Clip
36	Escut
38	Tape Strip
39	Shelf, Door Cantilever
