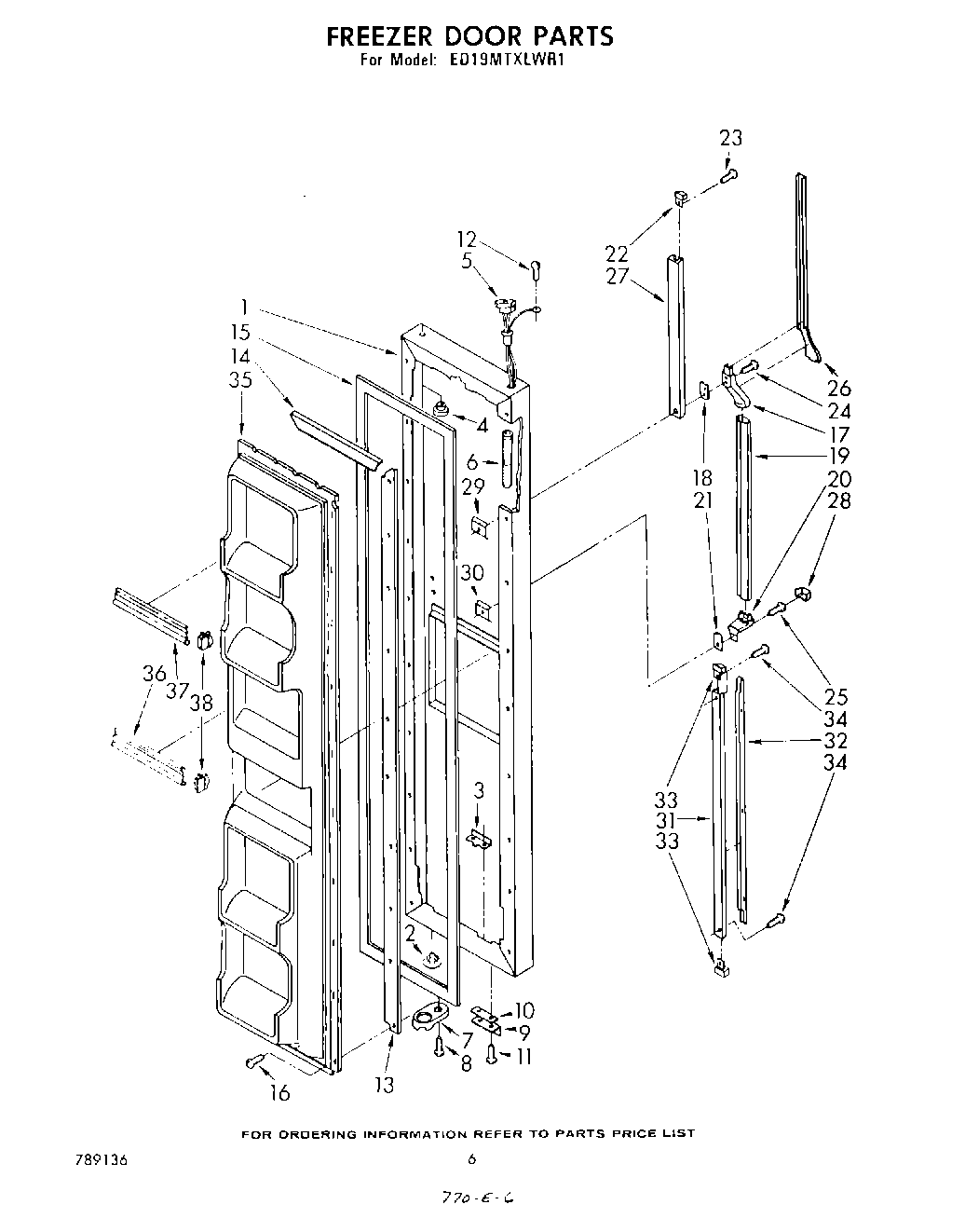

ED19MTXLWR1 04 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond)
1	Freezer, Door Panel (Avocado)
1	Freezer, Door Panel (Golden Harvest)
1	Freezer, Door Panel (Toast)
1	Freezer, Door Panel (Coffee)
2	Hole Plug (2)
3	Tap Plate
4	Cap, Hinge Sleeve (2)
5	Wire, Assembly Cross Over
6	Tube, Door Wiring
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP489069 Whirlpool Compactor Screw
9	Bracket, Door Stop
10	Shim
11	Screw, 89 x 5/8
11	Screw (Repair)
12	WP488234 Whirlpool Air Conditioner Screw
13	Retainer Side, Gasket
14	Retainer, Top & Bottom Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
16	SCREW
17	Center End Cap, Handle
18	Shim
19	Handle Center (White & Coffee)
19	Handle Center (Toast)
19	Handle Center (Avocado)
19	Handle Center (Almond)
19	Handle Center (Golden Harvest)
20	Handle End,
21	Shim, Handle
22	End Cap
23	Screw
25	WP488729 Whirlpool Refrigerator Door Screw
26	Insert, Handle
27	Retainer Insert
28	Cover, End Cap
29	Screw Anchor (2)
30	WP939101 Whirlpool Refrigerator Plate
31	WPL 935880
32	WPL 935890
33	End Cap, Retainer
34	Screw, 6-32 x 1/2
35	Interior, Door Panel
36	Trim, Door Shelf
37	Trim, Door Shelf
38	WP839904 Whirlpool Refrigerator Endcap Trim
