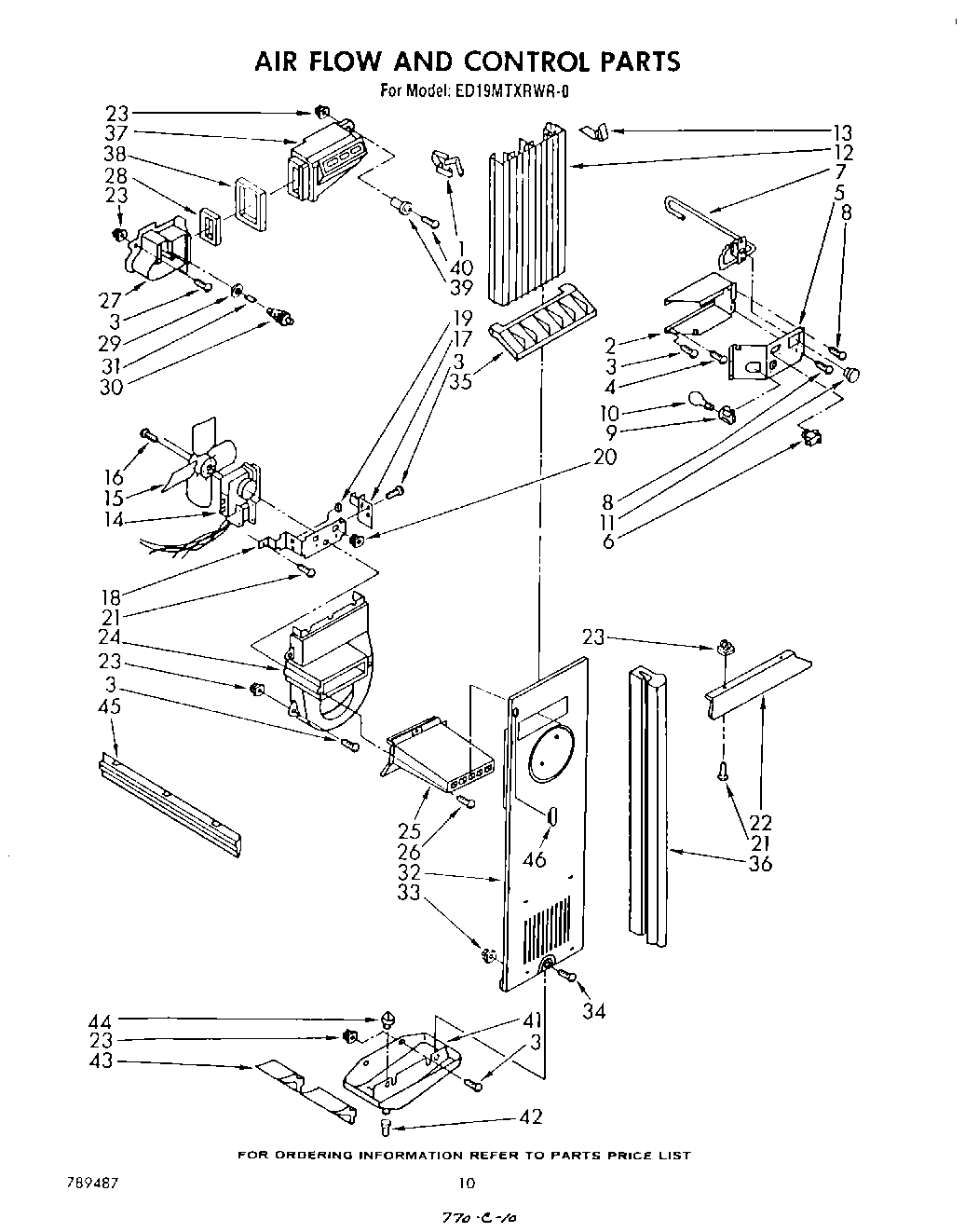

ED19MTXRWR0 06 – AIRFLOW AND CONTROL , LIT/OPTIONAL

ED19MTXRWR0 06 – AIRFLOW AND CONTROL , LIT/OPTIONAL

Written by

in

ED19MTXRWR0 06 – AIRFLOW AND CONTROL , LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
Toast
Paint, Spray (13 Oz.) (Platinum)
WPL LIT1109130
WPL LIT1110292
WPL LIT789487
350956 Whirlpool Spray Assembly
WPL LIT946693
12215823 Whirlpool Refrigerator Clip
2Box, Control
3W11624204 Whirlpool Screw
4Screw, 8-32 x 3/8
5Control Box Front
6WP938213 Whirlpool Refrigerator Power Switch
7WP4317800 Whirlpool Refrigerator Thermostat
8WP489128 Whirlpool Refrigerator Screw
94387478 Whirlpool Refrigerator Light Socket
10RANGE ONLY 40W 120V APPL BULB
11Knob, Temperature Control
12Air Duct
13Baffle, Air
14482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
15Blade, Fan
16WP487887 Whirlpool Refrigerator Screw
17Fan, Bracket Double
18Fan Bracket, Single
19Grommet (3)
20Screw Grommet
21WP489069 Whirlpool Compactor Screw
22Baffle, Liner Top
23Grommet
24Scroll, Fan
25Air, Duct Extension
26WP488729 Whirlpool Refrigerator Door Screw
27Air Scoop Assembly
28Gasket, Air Scoop
29Retainer, Damper
30Control Knob
31Knob, Retainer
32Cover, Evaporator
33Screw, Grommet
35End Cap, Evaporator
36Gasket, Evaporator Cover
37Air Diffuser Assembly
38Gasket, Air Diffuser
39836667 Whirlpool Refrigerator Spacer
40Screw, 8 x 1-1/4 (3)
41Drain Pan
42Fitting, Drain Pan
43Gasket, Drain Pan
44Cap, Drain
45Cover, Exchanger
46Leveler (Thinner)
46799344 Whirlpool Refrigerator Paint
46Hole Plug
46606755 Whirlpool Refrigerator Bag
46511873 Whirlpool Refrigerator Paint
46350942 Whirlpool Spray Paint
46212643 Whirlpool Refrigerator Permagum Sealer
4672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46WP72107 Whirlpool Touchup
46Platinum (Uncut)
46Enamal, Toast (1 Qt. Uncut)
46Golden Harvest (Uncut)
46Almond (Uncut)
46WPL 72112
46Kit, Evaporator Repair (Aluminum Epoxy)
46Silicone (Spray)
4672032 Whirlpool Touch Up Paint Black
46Enamel, Black (1 Qt. Uncut)
46Transformer (115-230 Volt)
46285006 Whirlpool Spray
46WPL 876029
46WPL 799832
46CEMENT, ALUMILASTIC (1 1/4 OZ.)
46TAPE, VINYL (3/4 X 108“)
46WP542638 Whirlpool Refrigerator Grease
46WP505587 Whirlpool Refrigerator Sealer
46WP503695 Whirlpool Refrigerator Sealer
46876370 Whirlpool Refrigerator Insulation
46833938 Whirlpool Refrigerator Terminal
4672017 Whirlpool Appliance Touch-Up Paint White
