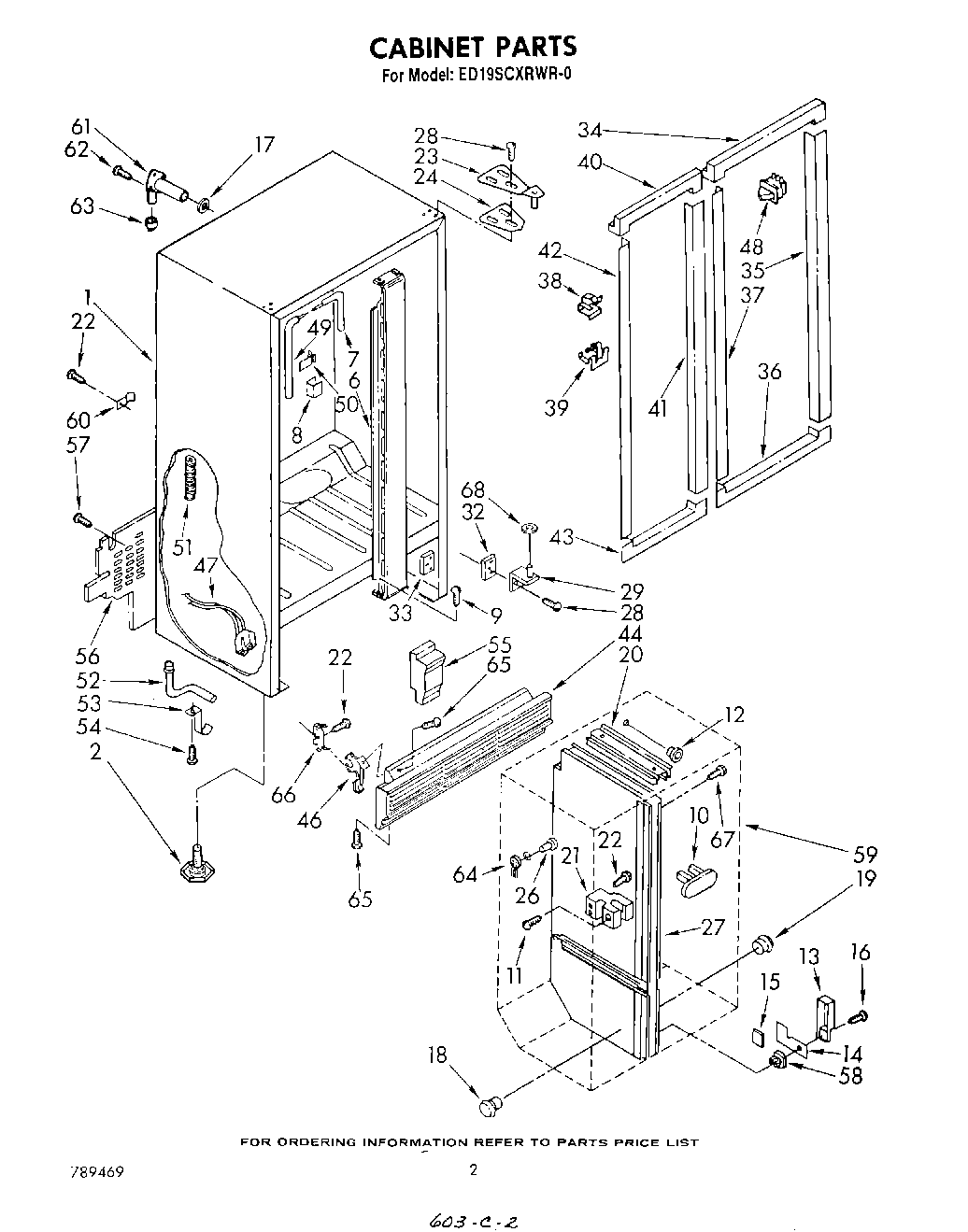

ED19SCXRWR0 02 – CABINET

Products

Position	Product
NI	Screw, 1/4-28 x 1/2 (2)
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
6	Center Rail & Bracket Assembly (White)
7	WPL 851874
8	Clip, Heater (2)
9	WP308685 Whirlpool Microwave Screw
9	Screw, 8 x 3/8
10	WPL 836080
11	Screw (2)
12	Grommet, Wiring
13	Escutcheon, Meat Pan Control
14	Slide, Meat Pan Control
15	Pad, Foam
16	Screw, 8-15 x 1/2 (4)
17	WP1106508 Whirlpool Refrigerator Gasket
18	Retainer, Hole Insert
19	Insert, Hole
20	WPL 842435
21	WPL 836079
22	W11624204 Whirlpool Screw
23	Hinge, Top
24	WPL 836151
26	Receptacle Cap
27	Divider Mullion Assembly
28	Screw (Repair)
28	WP999367 Whirlpool Refrigerator Screw
29	WPL 836687
29	Hinge (Bottom)
32	Shim, Bottom Hinge
33	Tap Plate
34	WPL 843335
35	WPL 842178
36	WPL 836446
37	WPL 836213
38	Breaker, Clip
39	Clip, Breaker Retainer (2)
40	Breaker, Trim Top (Freezer)
41	WPL 836108
42	WPL 836174
43	WPL 836447
44	Exterior Grille
46	WP944224 Whirlpool Refrigerator Support
47	WPL 548734
48	W11384469 Whirlpool Door Switch
49	Heater, Stile
50	WPL 935663
51	WPL 836068
52	Extension, Drain Fitting
53	Cup, Drain Extension
54	Screw, 8-15 x 3/8
55	WPL 836372
56	WPL 850457
58	Grommet
59	Liner (Not A Serviceable Pa
60	WPL 836077
61	Fitting, Water Tube
62	WP98165 Whirlpool Screw
63	WP487996 Whirlpool Refrigerator Cap Tube
64	Wiring, Ice Maker
65	WPL 489085
66	WPL 989068
67	WP489069 Whirlpool Compactor Screw
68	WP487802 Whirlpool Refrigerator Washer
