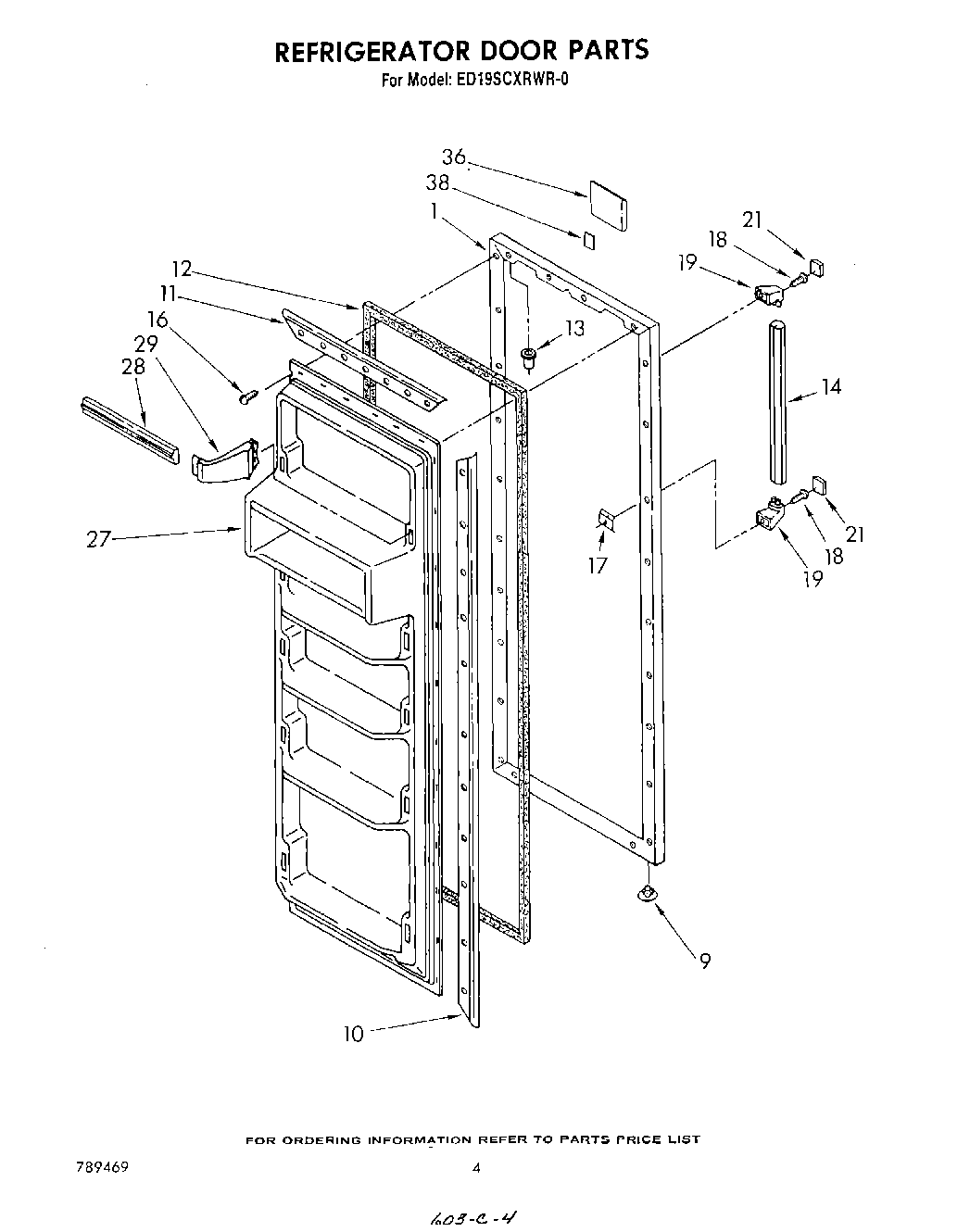

ED19SCXRWR0 03 – REFRIGERATOR DOOR

ED19SCXRWR0 03 – REFRIGERATOR DOOR

Written by

in

ED19SCXRWR0 03 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator, Door Panel (White)
9Hole Plug (2)
10Retainer Side, Gasket
11Retainer, Top & Bottom
122188404A Whirlpool Refrigerator Door Gasket
13Cap, Hinge Sleeve (2)
14Handle
16WP489069 Whirlpool Compactor Screw
17WP939101 Whirlpool Refrigerator Plate
18Screw, 8-15 x 1-5/8
19End, Handle (2) (White)
21Cover, End Door Handle (2)
27Panel, Interior
28Trim, Door Shelf (5)
29WP986540 Whirlpool Refrigerator Endcap Trim
36Nameplate
38Tape Strip
