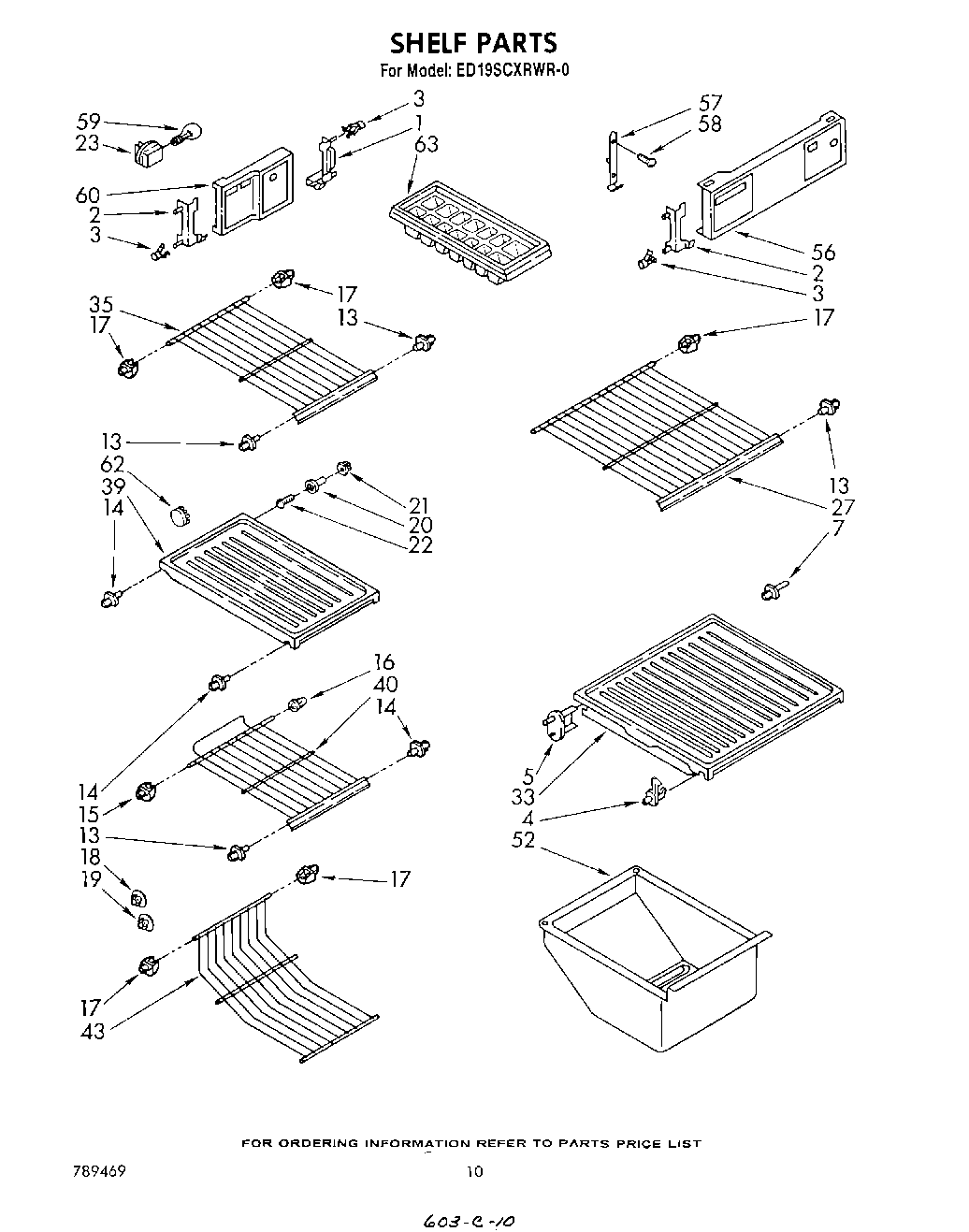

ED19SCXRWR0 06 – SHELF

Products

Position	Product
NI	Grommet
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Stud, Shelf (2)
5	Stud, Shelf (2)
7	Shelf, Stud
13	Shelf, Stud (2)
14	Stud, Shelf (2)
15	Shelf Support
16	Grommet
17	Shelf Stud Saddle (R.S.)
17	Shelf Stud, Saddle
18	Hole, Plug
19	Retainer Stud
20	Stud
21	Screw Grommet
22	Screw
23	4387478 Whirlpool Refrigerator Light Socket
27	Wire, Shelf (3)
33	Slide & Cover
35	Shelf (2)
39	Shelf, Solid
40	Shelf, Ice Pan (2)
43	Trivet
52	Pan, Meat
56	Light Lens
57	Support, Light Lens
58	W11624204 Whirlpool Screw
59	RANGE ONLY 40W 120V APPL BULB
60	Light Lens, Freezer
62	Hole, Plug
63	WP841180A Whirlpool Microwave Glass Turntable Tray
