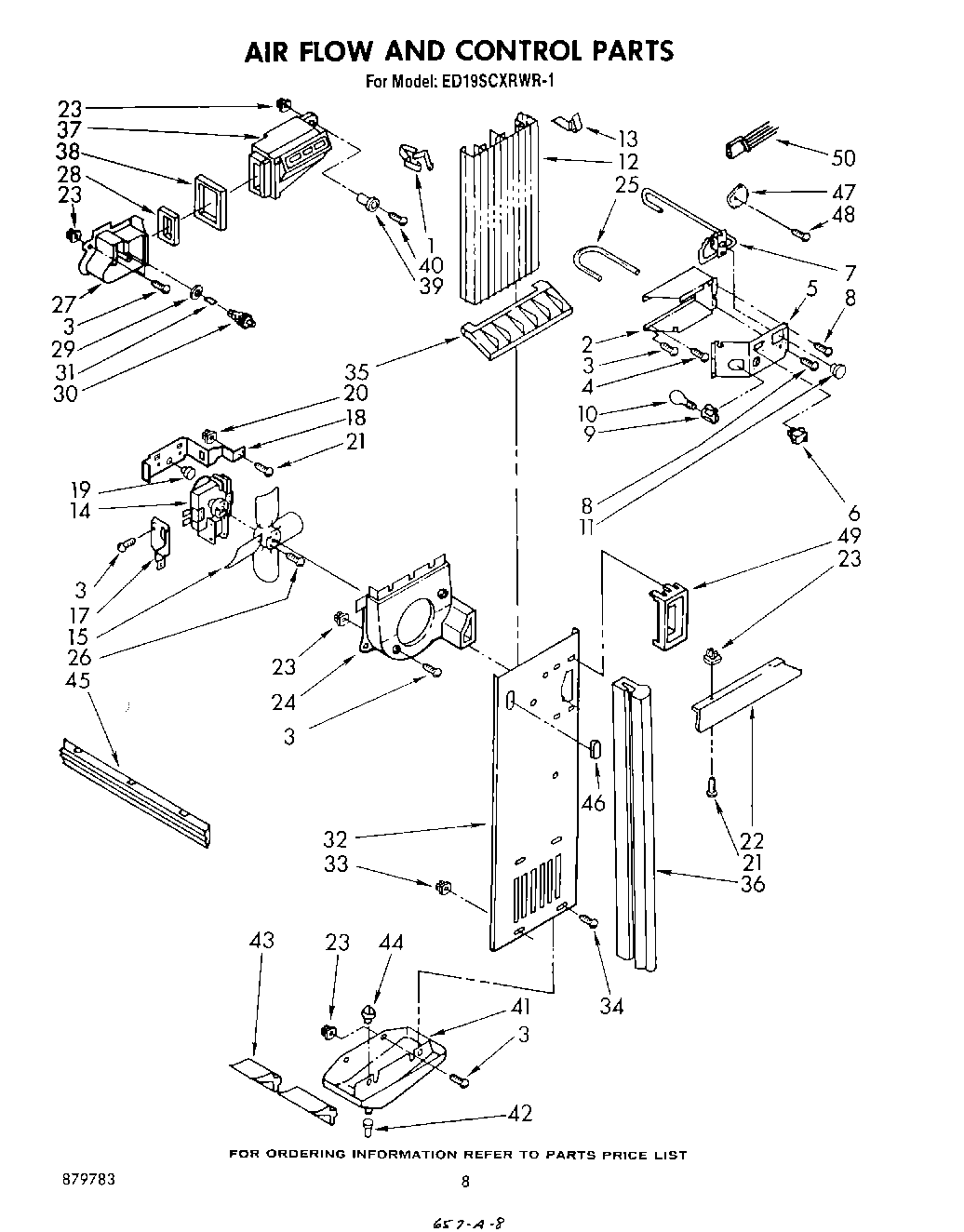

ED19SCXRWR1 05 – AIR FLOW AND CONTROL

Products

Position	Product
1	2215823 Whirlpool Refrigerator Clip
2	Box, Control
3	W11624204 Whirlpool Screw
4	Screw, 8-32 x 3/8
5	Control Box Front
6	WP938213 Whirlpool Refrigerator Power Switch
7	WP819470 Whirlpool Refrigerator Thermostat
8	WP489128 Whirlpool Refrigerator Screw
9	4387478 Whirlpool Refrigerator Light Socket
10	RANGE ONLY 40W 120V APPL BULB
11	Knob, Temperature Control
12	Duct, Air
13	Baffle, Air
14	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
15	Blade, Fan
17	Fan, Bracket Double
18	Bracket, Fan Mounting (Single)
19	Grommet (3)
20	Screw Grommet
21	WP489069 Whirlpool Compactor Screw
22	Baffle, Liner Top
23	Grommet
24	Scroll Fan
25	WP2196003 Whirlpool Refrigerator Bar Riser
26	WP487887 Whirlpool Refrigerator Screw
27	Air Scoop Assembly
28	Gasket, Air Scoop
29	Retainer, Damper
30	Control Knob
31	Knob, Retainer
32	Cover, Evaporator
33	Grommet
34	WP488729 Whirlpool Refrigerator Door Screw
35	End Cap, Evaporator
36	Gasket (2)
37	Air Diffuser Assembly
38	Gasket, Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Drain Pan
42	Fitting, Drain Pan
43	Gasket, Drain Pan
44	Cap, Drain
45	Cover, Exchanger
46	Hole Plug, Evaporator
47	Defrost Timer
48	WP3388228 Whirlpool Screw
49	Grille, Freezer
50	Liner Wiring (Defrost Timer)
