ED19SKXRWR1 07 – UNIT , LIT/OPTIONAL

ED19SKXRWR1 07 – UNIT , LIT/OPTIONAL

Written by

in

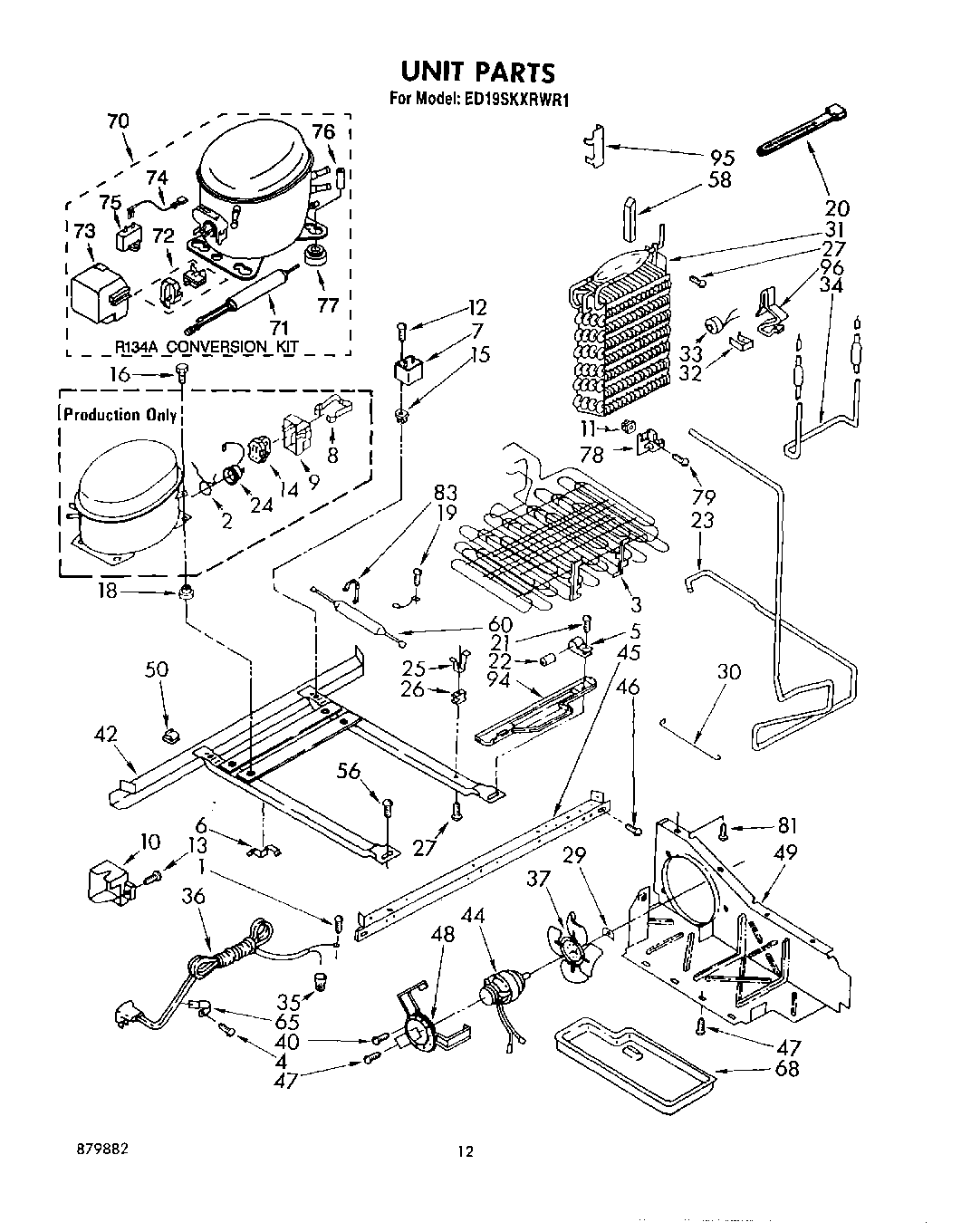

ED19SKXRWR1 07 – UNIT , LIT/OPTIONAL

Products

Position	Product
	WPL LIT1118655
	Torx Key
	WPL LIT879882
	WPL LIT1114013
	WPL LIT1116314
1	Screw, 8-32 x 3/8
2	Overload Spring
3	Condenser & Precooler
5	Clamp Tube
6	Clip (2)
7	WPW10662129 Whirlpool Refrigerator Run Capacitor
8	Strap
9	Terminal Cover
10	WPL 549947
11	Grommet, Screw (2)
12	W11693756 Whirlpool Screw Assembly
13	WP488729 Whirlpool Refrigerator Door Screw
14	WP2262181 Whirlpool Refrigerator Start Relay
15	Screw Grommet
18	876811 Whirlpool Grommet
19	303776 Whirlpool Dishwasher Screw
20	Strap
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Heat, Exchanger
24	Overload
25	Clamp (4)
26	Grommet (4)
27	W11624204 Whirlpool Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
40	681390 Whirlpool Refrigerator Screw
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
70	876765 Whirlpool Primary Mounting Kit Refrigerator
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
78	Support, Evaporator
79	SCREW
81	Screw, 8-32 x 1/2
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	978030 Whirlpool Refrigerator Valve
96	Leveler (Thinner)
96	Transformer (115-230 Volt)
96	TAPE, VINYL (3/4 X 108“)
96	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96	CEMENT, ALUMILASTIC (1 1/4 OZ.)
96	72113 Whirlpool Touch-Up Paint
96	978027 Whirlpool Refrigerator Primary Valve
96	WP978025 Whirlpool Refrigerator Valve
96	350956 Whirlpool Spray Assembly
96	WP72107 Whirlpool Touchup
96	WPL 799833
96	Almond (Uncut)
96	VALVE, ACCESS (5/8“)
96	Heater, Clamp (4)
96	799344 Whirlpool Refrigerator Paint
96	72017 Whirlpool Appliance Touch-Up Paint White
96	350930 Whirlpool White Spray Paint
96	WP542638 Whirlpool Refrigerator Grease
96	Enamel, Black (1 Qt. Uncut)
96	285006 Whirlpool Spray
96	VALVE, ACCESS (1/2“)
96	212643 Whirlpool Refrigerator Permagum Sealer
96	72032 Whirlpool Touch Up Paint Black
96	511873 Whirlpool Refrigerator Paint
96	606755 Whirlpool Refrigerator Bag
96	876764 Whirlpool Refrigerator Primary Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	833938 Whirlpool Refrigerator Terminal
96	876370 Whirlpool Refrigerator Insulation
96	WPL 72112
96	Platinum (Uncut)
96	Golden Harvest
96	350942 Whirlpool Spray Paint
96	WPL 799832
96	Golden Harvest (Uncut)
96	Silicone (Spray)
96	Toast
96	Paint, Spray (13 Oz.) (Platinum)
96	Enamal, Toast (1 Qt. Uncut)
96	WPL 876029
96	WP505587 Whirlpool Refrigerator Sealer
96	WP503695 Whirlpool Refrigerator Sealer
