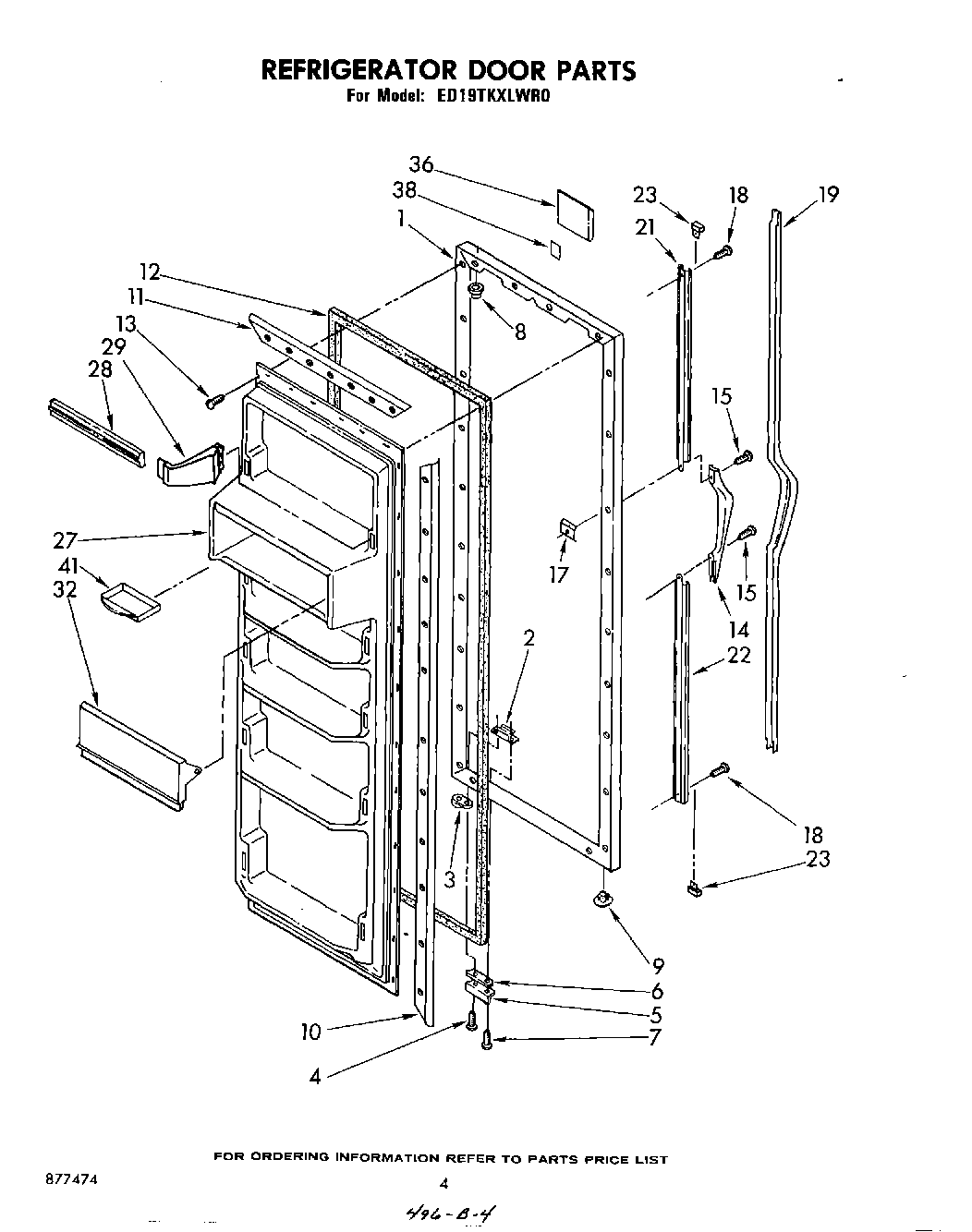

ED19TKXLWR0 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Coffee)
1	Door, Refrigerator (Almond)
1	Door, Refrigerator (New Avocado)
1	Door, Refrigerator (Golden Harvest)
1	Door, Refrigerator (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2) (Coffee)
9	Hole Plug (2) (Almond)
9	Hole Plug (2) (Golden Harvest)
9	Hole Plug (2) (New Avocado)
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	SCREW
14	Handle
15	W11624204 Whirlpool Screw
17	WP939101 Whirlpool Refrigerator Plate
18	Screw, 10-32 x 5/8
19	Insert, Handle
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
27	Panel, Interior
28	Trim, Door Shelf
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Door, Compartment
36	WPL 945117
38	Tape Strip
