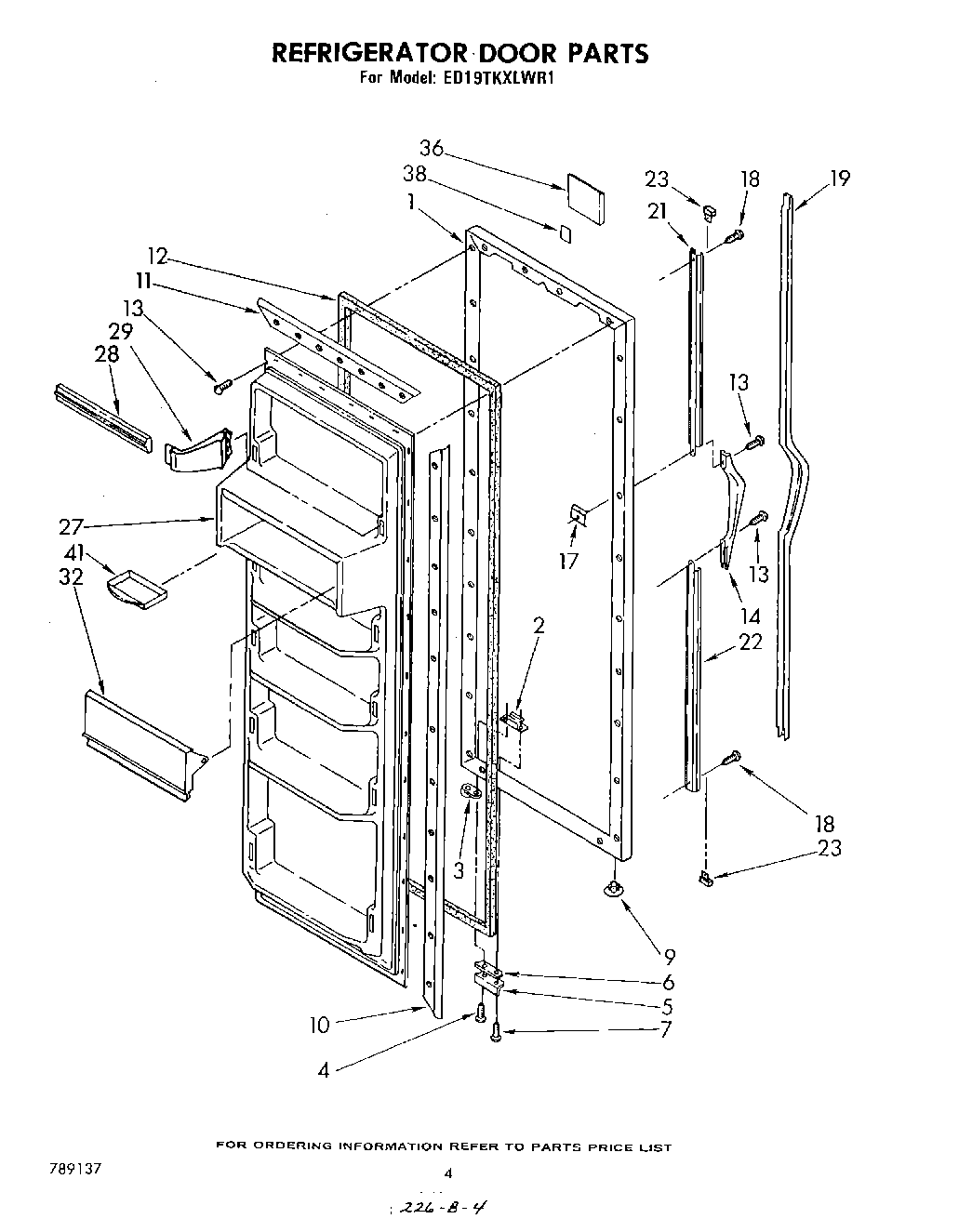

ED19TKXLWR1 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Coffee)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Platinum)
1	Refrigerator, Door Panel (New Avocado)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	SCREW
13	W11624204 Whirlpool Screw
14	Handle
17	WP939101 Whirlpool Refrigerator Plate
18	Screw, 10-32 x 5/8
19	Insert, Handle
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
27	Panel, Interior
28	Trim, Door Shelf
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Door, Compartment
36	WPL 945117
38	Tape Strip
