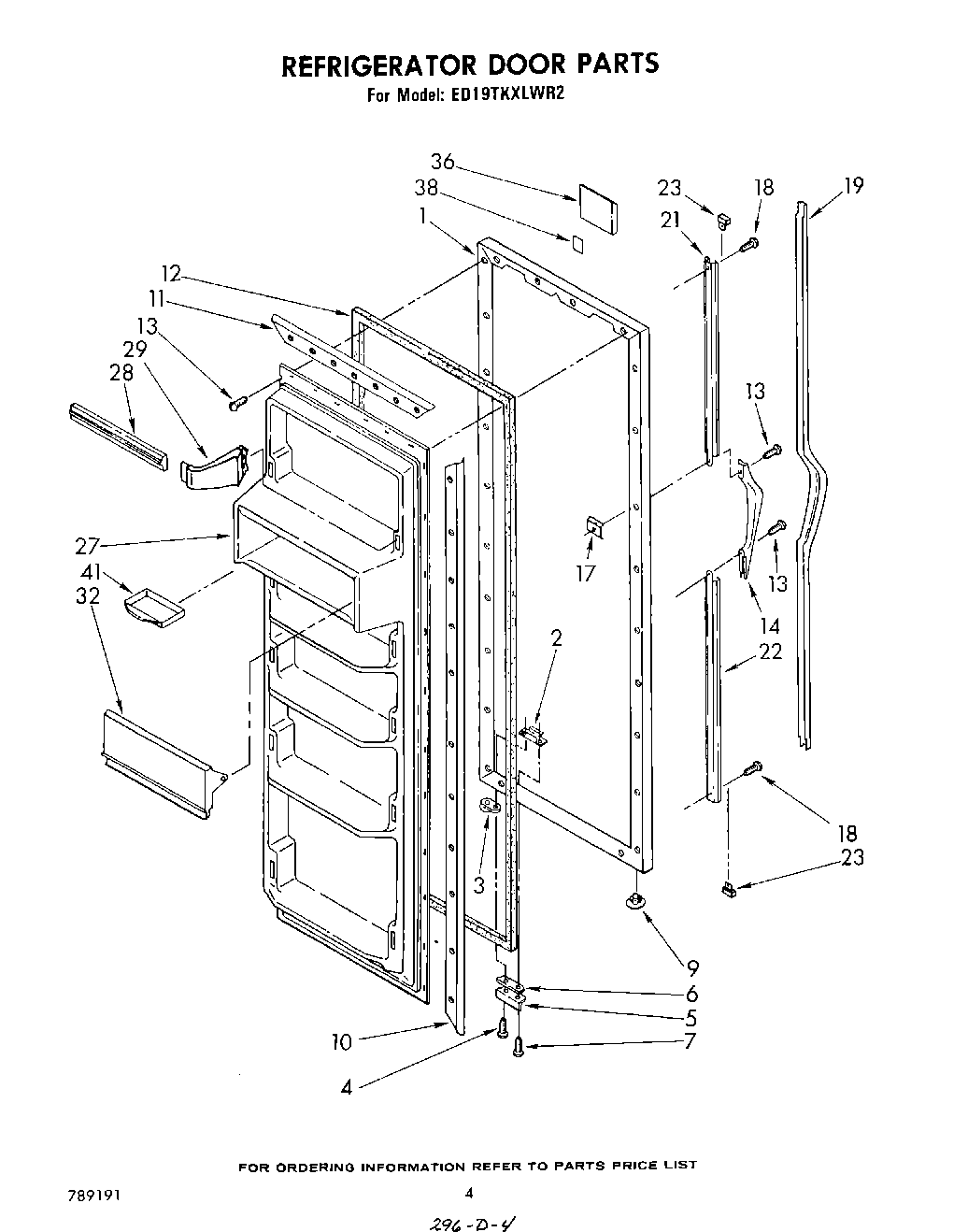

ED19TKXLWR2 03 – REFRIGERATOR DOORadmin2025-04-26T11:50:28+00:00ED19TKXLWR2 03 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator, Door Panel (Coffee) |
| 1 | Refrigerator, Door Panel (Almond) |
| 1 | Refrigerator, Door Panel (Toast) |
| 1 | Refrigerator, Door Panel (Platinum) |
| 1 | Refrigerator, Door Panel (New Avocado) |
| 1 | Refrigerator, Door Panel (Golden Harvest) |
| 1 | Refrigerator, Door Panel (White) |
| 2 | Tap Plate |
| 3 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 4 | WP489069 Whirlpool Compactor Screw |
| 5 | Bracket, Door Stop |
| 6 | Shim |
| 7 | Screw, 89 x 5/8 |
| 9 | Hole Plug (2) |
| 10 | Retainer Side, Gasket |
| 11 | Retainer, Top & Bottom |
| 12 | 2188404A Whirlpool Refrigerator Door Gasket |
| 13 | SCREW |
| 13 | W11624204 Whirlpool Screw |
| 14 | Handle |
| 17 | WP939101 Whirlpool Refrigerator Plate |
| 18 | Screw, 10-32 x 5/8 |
| 19 | Insert, Handle |
| 21 | Retainer, Top |
| 22 | Retainer, Bottom |
| 23 | Cap, Handle (2) |
| 27 | Panel, Interior |
| 28 | Trim, Door Shelf |
| 29 | WP849996 Whirlpool Refrigerator Endcap Trim |
| 32 | Door, Compartment |
| 36 | WPL 945117 |
| 38 | Tape Strip |
