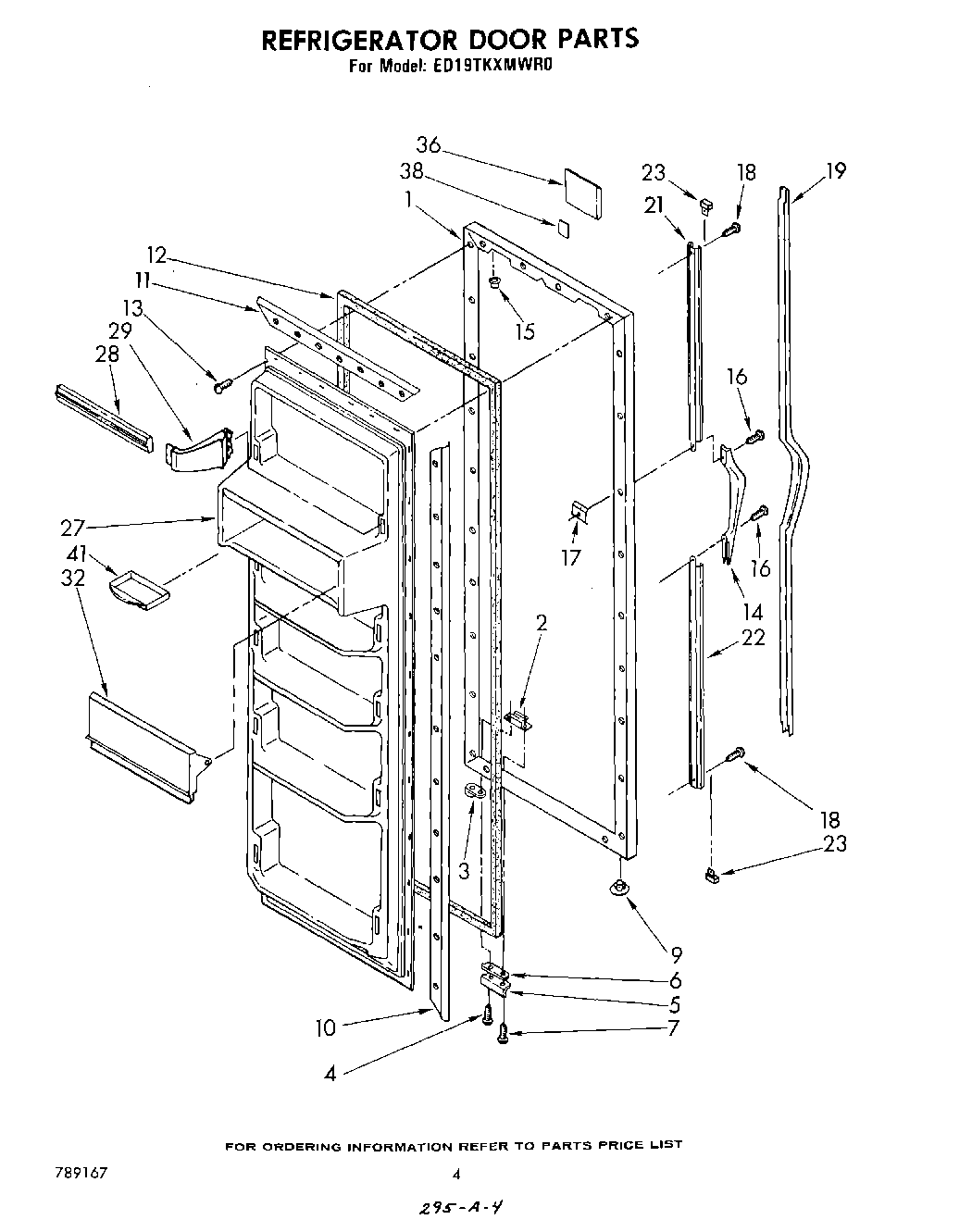

ED19TKXMWR0 03 – REFRIGERATOR DOOR

ED19TKXMWR0 03 – REFRIGERATOR DOOR

Written by

in

ED19TKXMWR0 03 – REFRIGERATOR DOOR

Products

PositionProduct
1Door, Refrigerator (White)
1Door, Refrigerator (Almond)
1Door, Refrigerator (New Avocado)
1Door, Refrigerator (Golden Harvest)
1Refrigerator, Door Panel (Toast)
1Door, Refrigerator (Coffee)
1Refrigerator, Door Panel (Platinum)
2Tap Plate
34318165 Whirlpool Refrigerator Door Closure Cam Kit
4WP489069 Whirlpool Compactor Screw
5Bracket, Door Stop
6Shim
7Screw, 89 x 5/8
9Hole Plug (2)
10Retainer Side, Gasket
11Retainer, Top & Bottom
122188404A Whirlpool Refrigerator Door Gasket
13SCREW
14Handle
15Cap, Hinge Sleeve (2)
16W11624204 Whirlpool Screw
17WP939101 Whirlpool Refrigerator Plate
18Screw, 10-32 x 5/8
19Insert, Handle
21Retainer, Top
22Retainer, Bottom
23Cap, Handle (2)
27Panel, Interior
28Trim, Door Shelf
29WP849996 Whirlpool Refrigerator Endcap Trim
32Compartment Door
36WPL 945117
38Tape Strip
