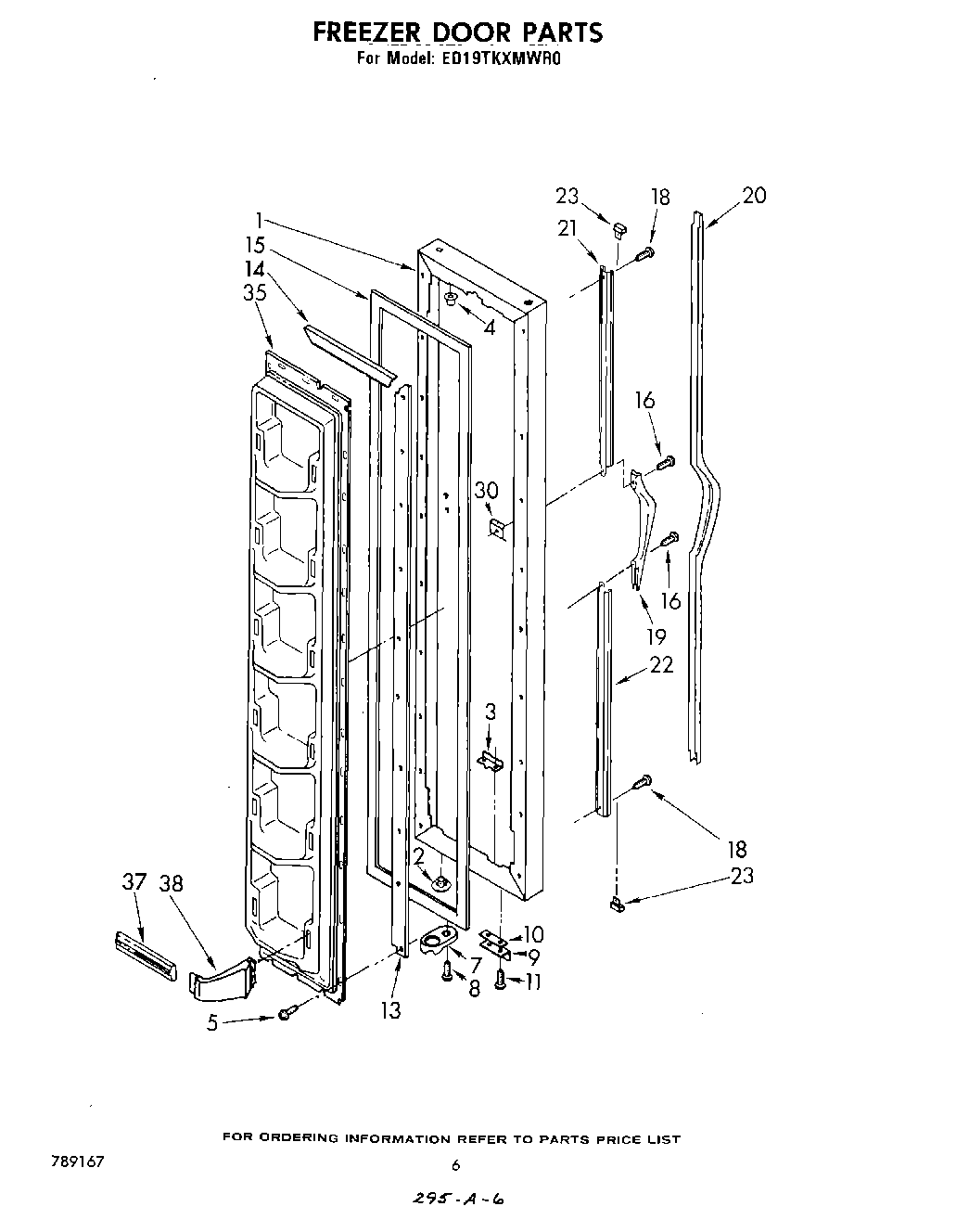

ED19TKXMWR0 04 – FREEZER DOOR

ED19TKXMWR0 04 – FREEZER DOOR

Written by

in

ED19TKXMWR0 04 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Toast)
1Freezer, Door Panel (Platinum)
1Door, Freezer (White)
1Door, Freezer (Coffee)
1Door, Freezer (Almond)
1Door, Freezer (Golden Harvest)
1Door, Freezer (New Avocado)
2Hole Plug (2)
3Tap Plate
4Cap, Hinge Sleeve (2)
74318165 Whirlpool Refrigerator Door Closure Cam Kit
8WP489069 Whirlpool Compactor Screw
9Bracket, Door Stop
10Shim
11Screw, 89 x 5/8
11Screw (Repair)
13Retainer Side, Gasket
14Retainer, Top & Bottom Gasket
152188405A Whirlpool Refrigerator Door Gasket
16SCREW
16W11624204 Whirlpool Screw
18Screw, 10-32 x 5/8
19Handle
20Insert, Handle
21Retainer, Top
22Retainer, Bottom
23Cap, Handle (2)
30WP939101 Whirlpool Refrigerator Plate
35Panel, Interior
37Trim, Door Shelf
38WP849996 Whirlpool Refrigerator Endcap Trim
