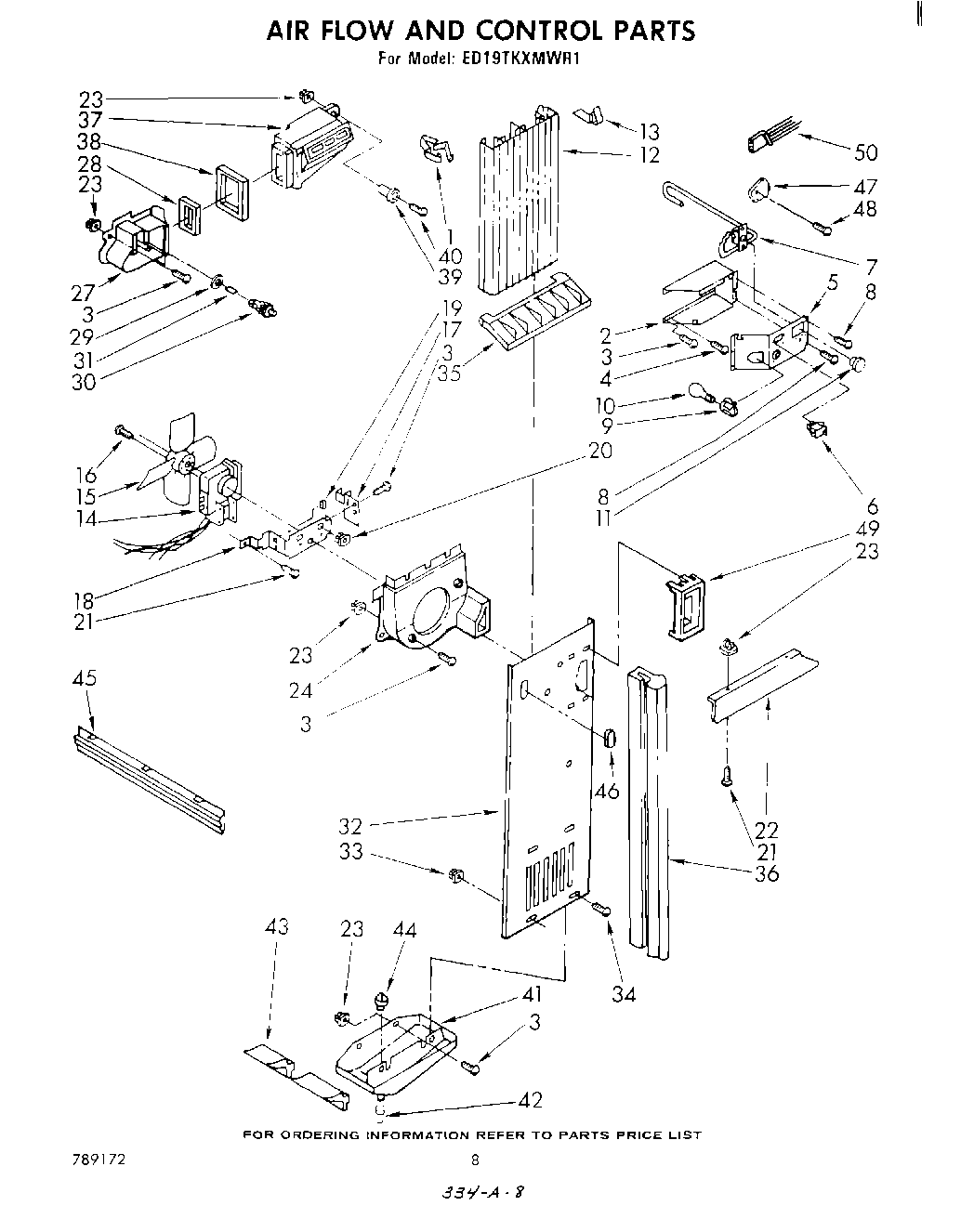

ED19TKXMWR1 05 – AIR FLOW AND CONTROL , LIT/OPTIONAL

ED19TKXMWR1 05 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Written by

in

ED19TKXMWR1 05 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	2215823 Whirlpool Refrigerator Clip
2	Box, Control
3	W11624204 Whirlpool Screw
4	Screw, 8-32 x 3/8
5	Control Box Front
6	WP938213 Whirlpool Refrigerator Power Switch
7	WP4317800 Whirlpool Refrigerator Thermostat
8	WP489128 Whirlpool Refrigerator Screw
9	4387478 Whirlpool Refrigerator Light Socket
10	RANGE ONLY 40W 120V APPL BULB
11	Knob, Temperature Control
12	Duct, Air
13	Baffle, Air
14	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
15	Blade, Fan
16	WP487887 Whirlpool Refrigerator Screw
17	Fan, Bracket Double
18	Bracket, Fan Mounting (Single)
19	Grommet (3)
20	Screw Grommet
21	WP489069 Whirlpool Compactor Screw
22	Baffle, Liner Top
23	Grommet
24	Scroll Fan
27	Air Scoop Assembly
28	Gasket, Air Scoop
29	Retainer, Damper
30	Control Knob
31	Knob, Retainer
32	Cover, Evaporator
33	Grommet
34	WP488729 Whirlpool Refrigerator Door Screw
35	End Cap, Evaporator
36	Gasket (2)
37	Air Diffuser Assembly
38	Gasket, Air Diffuser
39	836667 Whirlpool Refrigerator Spacer
40	Screw, 8 x 1-1/4 (3)
41	Drain Pan
42	Fitting, Drain Pan
43	Gasket, Drain Pan
44	Cap, Drain
45	Cover, Exchanger
46	Hole Plug, Evaporator
47	Defrost Timer
48	WP3388228 Whirlpool Screw
49	Grille, Freezer
50	Enamal, Toast (1 Qt. Uncut)
50	Almond (Uncut)
50	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
50	Golden Harvest
50	Golden Harvest (Uncut)
50	Kit, Evaporator Repair (Aluminum Epoxy)
50	Platinum (Uncut)
50	Paint, Spray (13 Oz.) (Platinum)
50	WPL 799351
50	Toast
50	WPL 789172
50	72113 Whirlpool Touch-Up Paint
50	Consumer Checklist
50	WPL 945934
50	WPL 945511
50	WPL 944001
50	350930 Whirlpool White Spray Paint
50	350956 Whirlpool Spray Assembly
50	72017 Whirlpool Appliance Touch-Up Paint White
50	799344 Whirlpool Refrigerator Paint
50	WP72107 Whirlpool Touchup
50	Leveler (Thinner)
50	WPL 72112
50	212643 Whirlpool Refrigerator Permagum Sealer
50	350942 Whirlpool Spray Paint
50	Enamel, New Avocado (1 Qt. Uncut)
50	Enamel, Coffee (1 Qt. Uncut)
50	Enamel, Black (1 Qt. Uncut)
50	WPL 799832
50	WPL 876029
50	285006 Whirlpool Spray
50	72109 Whirlpool Dacor Avocado Touch-Up Paint
50	Paint, Touch-Up 1/2 Oz. (Coffee)
50	paint, spray 13 oz. (coffee)
50	Paint, Spray 13 Oz. (Avocado)
50	CEMENT, ALUMILASTIC (1 1/4 OZ.)
50	TAPE, VINYL (3/4 X 108“)
50	511873 Whirlpool Refrigerator Paint
50	606755 Whirlpool Refrigerator Bag
50	833938 Whirlpool Refrigerator Terminal
50	876370 Whirlpool Refrigerator Insulation
50	Transformer (115-230 Volt)
50	WP503695 Whirlpool Refrigerator Sealer
50	WP505587 Whirlpool Refrigerator Sealer
50	Silicone (Spray)
50	WP542638 Whirlpool Refrigerator Grease
50	72032 Whirlpool Touch Up Paint Black
50	Liner Wiring (Defrost Timer)
