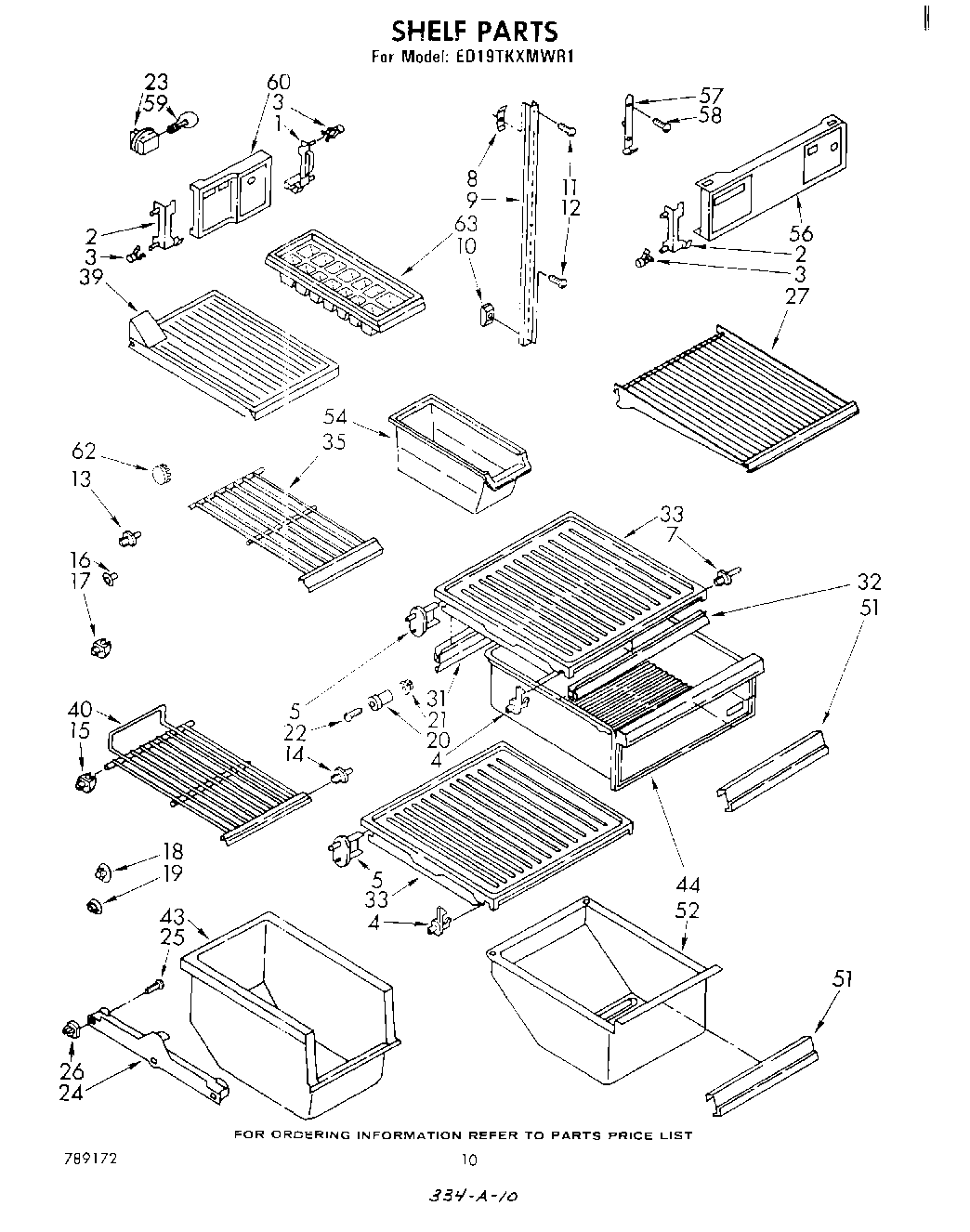

ED19TKXMWR1 06 – SHELF

Products

Position	Product
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Stud, Shelf (2)
5	Stud, Shelf (2)
7	Shelf, Stud
8	Screw, Grommet
9	Shelfladder (2)
10	520965 Whirlpool Refrigerator Support
11	Screw, 8 x 1-1/4 (3)
12	Screw, 8-32 x 1-1/4
12	Screw (Repair)
13	Shelf, Stud (2)
14	Stud, Shelf (2)
15	Shelf Support
16	Grommet
17	Shelf Stud, Saddle
17	Shelf Stud Saddle (R.S.)
18	Hole, Plug
19	Retainer Stud
20	Stud
21	Screw Grommet
22	Screw
23	4387478 Whirlpool Refrigerator Light Socket
24	Slide, Freezer Bin
25	Screw, 8 x 1
26	Grommet
27	Shelf Cantilever
31	Crisper Basket, Rear
32	Crisper Gasket Front
33	Slide & Cover
35	Shelf, Freezer
39	Shelf, Solid
40	Shelf, Ice Cube Pan
43	Bin, Freezer
44	Pan, Crisper
51	Overlay Pan
52	Pan, Meat
54	WP982704 Whirlpool Refrigerator Container
56	Light Lens
57	Support, Light Lens
58	W11624204 Whirlpool Screw
59	RANGE ONLY 40W 120V APPL BULB
60	Light Lens, Freezer
62	Hole, Plug
63	WP841180A Whirlpool Microwave Glass Turntable Tray
