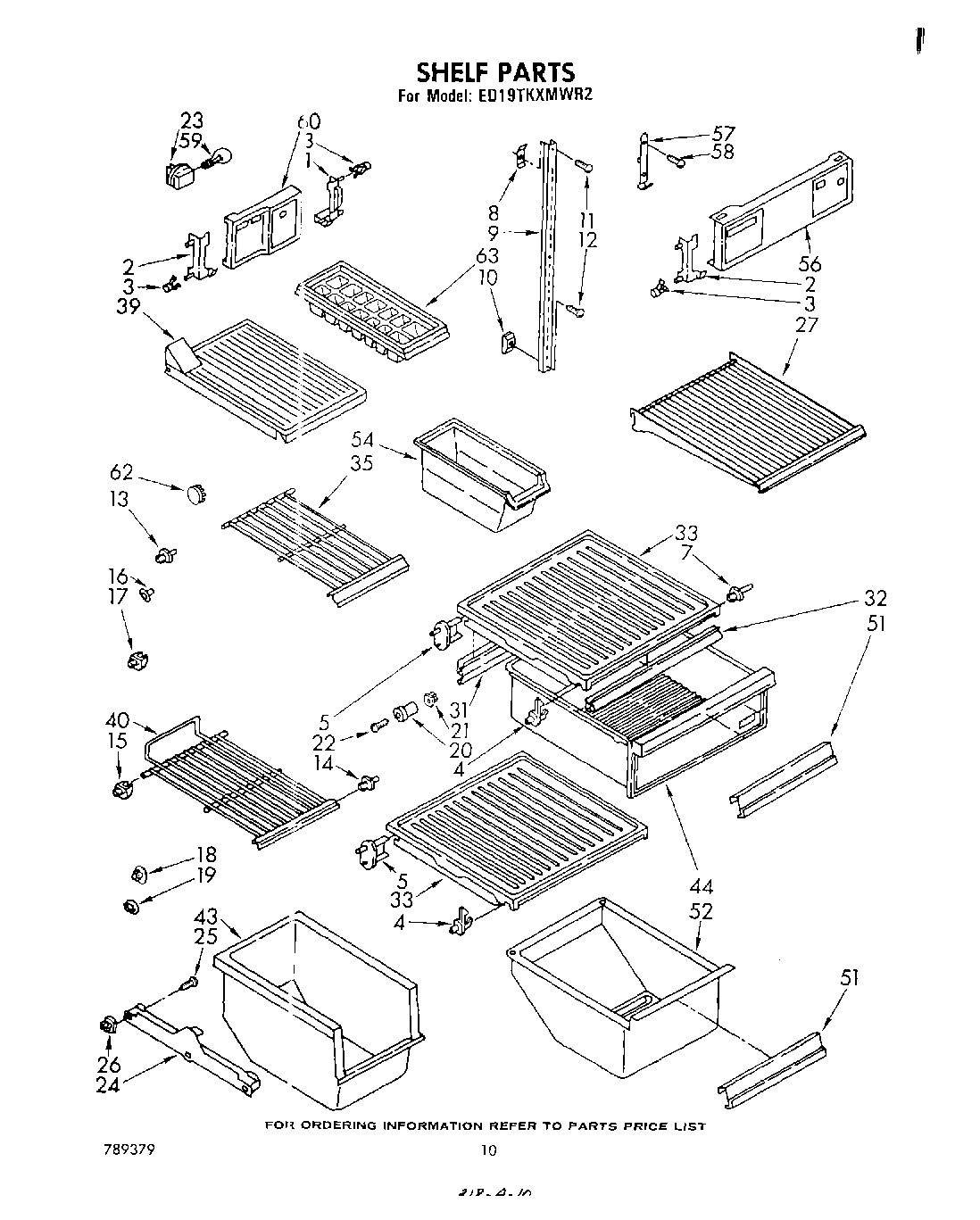

| 1 | Support, Light Lens (R.S.) |
| 2 | Support, Light Lens (L.S.) |
| 3 | Clip, Tubular |
| 4 | Stud, Shelf (2) |
| 5 | Stud, Shelf (2) |
| 7 | Shelf, Stud |
| 8 | Screw, Grommet |
| 9 | Shelfladder (2) |
| 10 | 520965 Whirlpool Refrigerator Support |
| 11 | Screw, 8 x 1-1/4 (3) |
| 12 | Screw, 8-32 x 1-1/4 |
| 12 | Screw (Repair) |
| 13 | Shelf, Stud (2) |
| 14 | Stud, Shelf (2) |
| 15 | Shelf Support |
| 16 | Grommet |
| 17 | Shelf Stud, Saddle |
| 17 | Shelf Stud Saddle (R.S.) |
| 18 | Hole, Plug |
| 19 | Retainer Stud |
| 20 | Stud |
| 21 | Screw Grommet |
| 22 | Screw |
| 23 | 4387478 Whirlpool Refrigerator Light Socket |
| 24 | Slide, Freezer Bin |
| 25 | Screw, 8 x 1 |
| 26 | Grommet |
| 27 | Shelf Cantilever |
| 31 | Crisper Basket, Rear |
| 32 | Crisper Gasket Front |
| 33 | Slide & Cover |
| 35 | Shelf, Freezer |
| 39 | Shelf, Solid |
| 40 | Shelf, Ice Cube Pan |
| 43 | Bin, Freezer |
| 44 | Pan, Crisper |
| 51 | Overlay Pan |
| 52 | Pan, Meat |
| 54 | WP982704 Whirlpool Refrigerator Container |
| 56 | Light Lens |
| 57 | Support, Light Lens |
| 58 | W11624204 Whirlpool Screw |
| 59 | RANGE ONLY 40W 120V APPL BULB |
| 60 | Light Lens, Freezer |
| 62 | Hole, Plug |
| 63 | WP841180A Whirlpool Microwave Glass Turntable Tray |
