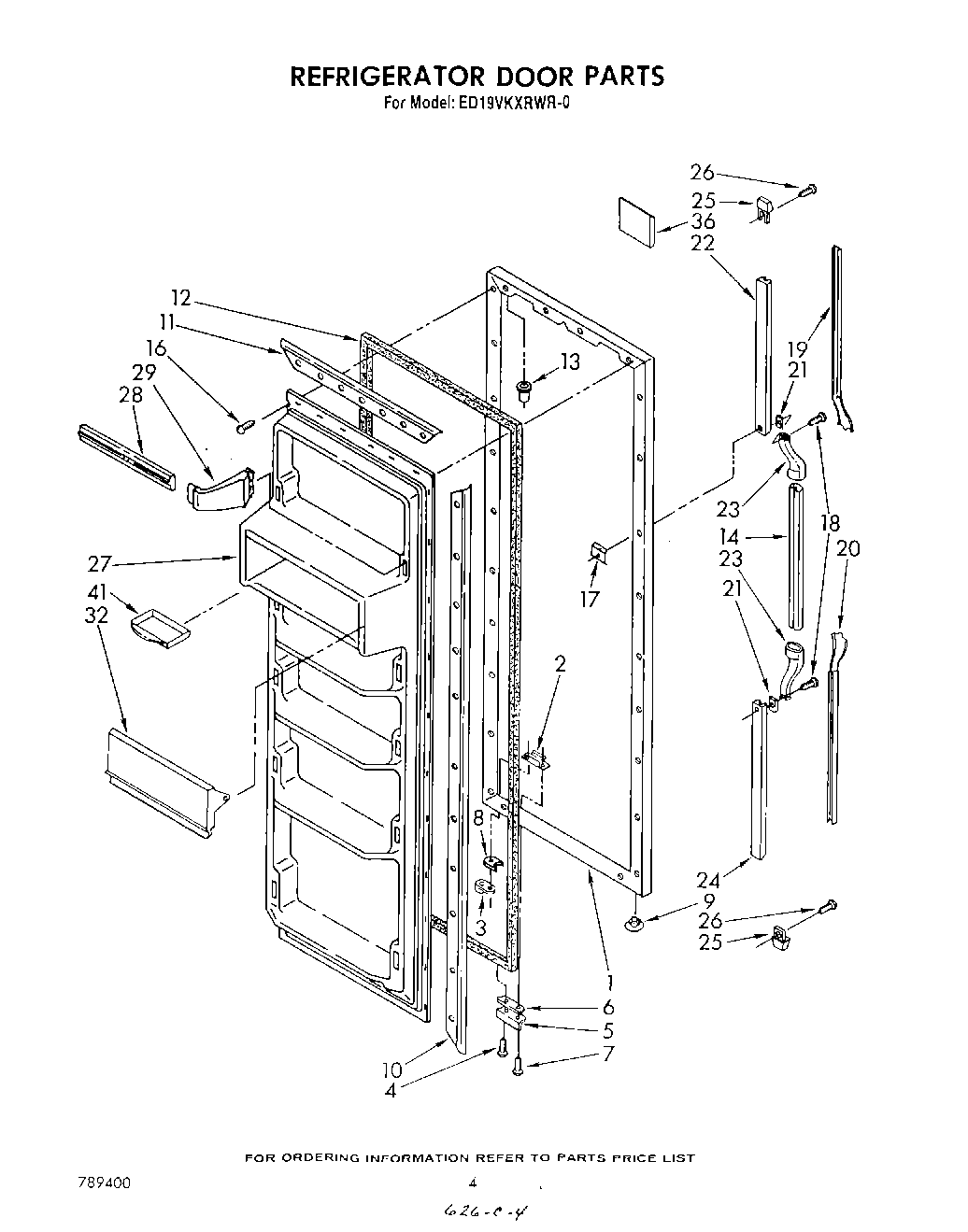

ED19VKXRWR0 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Platinum)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Golden Harvest)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center
14	Handle, Center (For Platinum Model Only)
17	Screw Anchor (2)
19	Insert, Handle (Top) (Platinum)
19	Insert, Handle (Top) (Toast)
19	Insert, Handle (Top) (Almond)
19	Insert, Handle (Top) (Golden Harvest)
19	Insert, Handle (Top) (White)
20	Insert, Handle (Bottom) (Platinum)
20	Insert, Handle (Bottom) (Toast)
20	Insert, Handle (Bottom) (Golden Wheat)
20	Insert, Handle (Bottom) (White)
20	Insert, Handle (Bottom) (Almond)
21	Shim
22	Retainer Insert
23	Center End Cap, Handle
24	Retainer Insert (Bottom)
25	End Cap
26	Screw
27	Panel, Interior
28	Trim, Door Shelf
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Compartment Door
36	Nameplate
