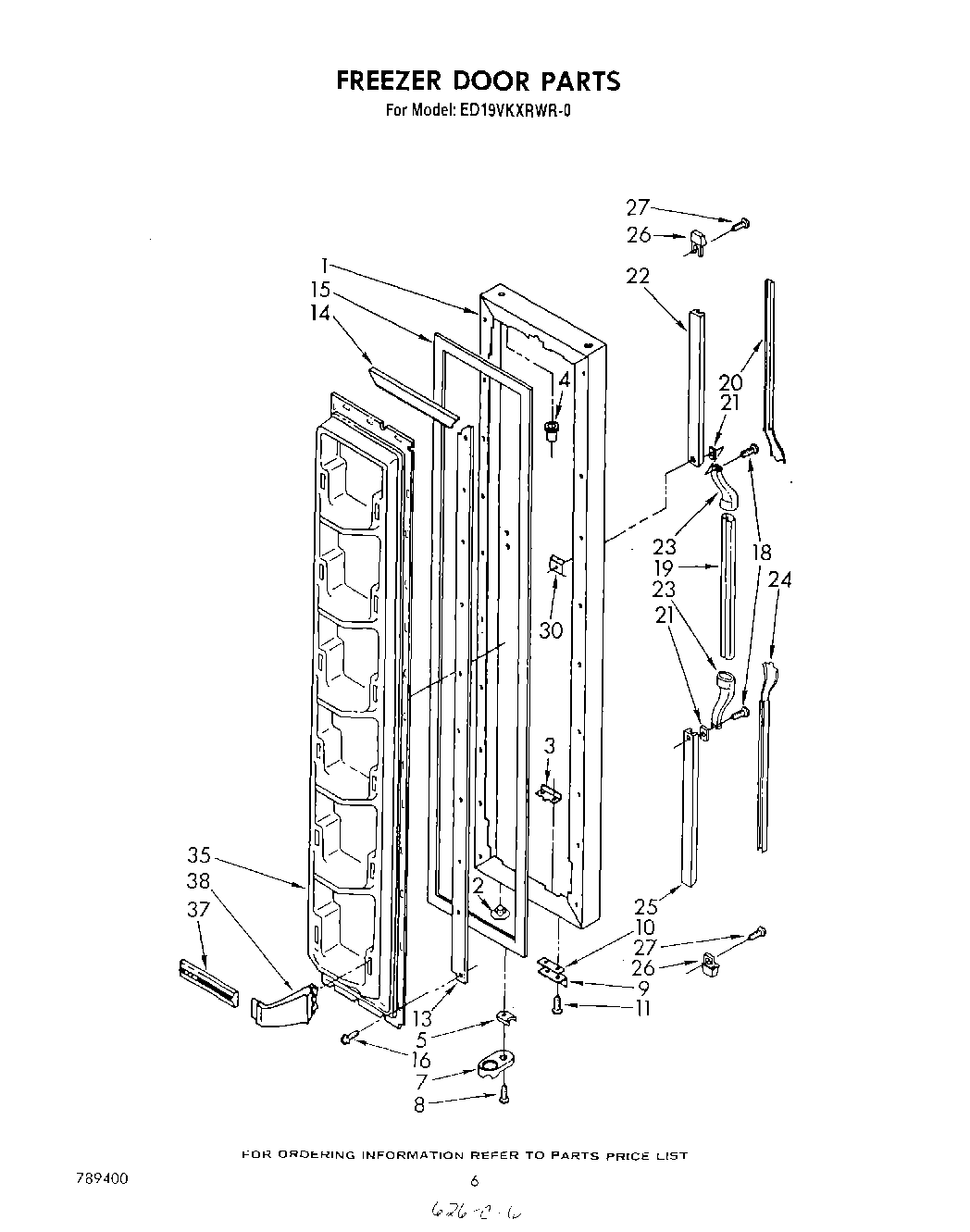

ED19VKXRWR0 04 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Toast)
1	Freezer Door Panel (Platinum)
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Golden Harvest)
1	Freezer, Door Panel (Almond)
2	Hole Plug (2)
3	Tap Plate
4	Cap, Hinge Sleeve (2)
5	WP1104787 Whirlpool Refrigerator Shim
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP489069 Whirlpool Compactor Screw
9	Bracket, Door Stop
10	Shim
11	Screw (Repair)
11	Screw, 89 x 5/8
13	Retainer Side, Gasket
14	Retainer, Top & Bottom Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
16	SCREW
19	Handle, Center (For Platinum Model Only)
19	Handle, Center
20	Insert, Handle (Top) (Almond)
20	Insert, Handle (Top) (White)
20	Insert, Handle (Top) (Platinum)
20	Insert, Handle (Top) (Toast)
20	Insert, Handle (Top) (Golden Harvest)
21	Shim
22	Retainer Insert
23	Center End Cap, Handle
24	Insert, Handle (Bottom) (Platinum)
24	Insert, Handle (Bottom) (Toast)
24	Insert, Handle (Bottom) (Almond)
24	Insert, Handle (Bottom) (White)
24	Insert, Handle (Bottom) (Golden Wheat)
25	Retainer Insert (Bottom)
26	End Cap
27	Screw
30	Screw Anchor (2)
35	Panel, Interior
37	Trim, Door Shelf
38	WP849996 Whirlpool Refrigerator Endcap Trim
