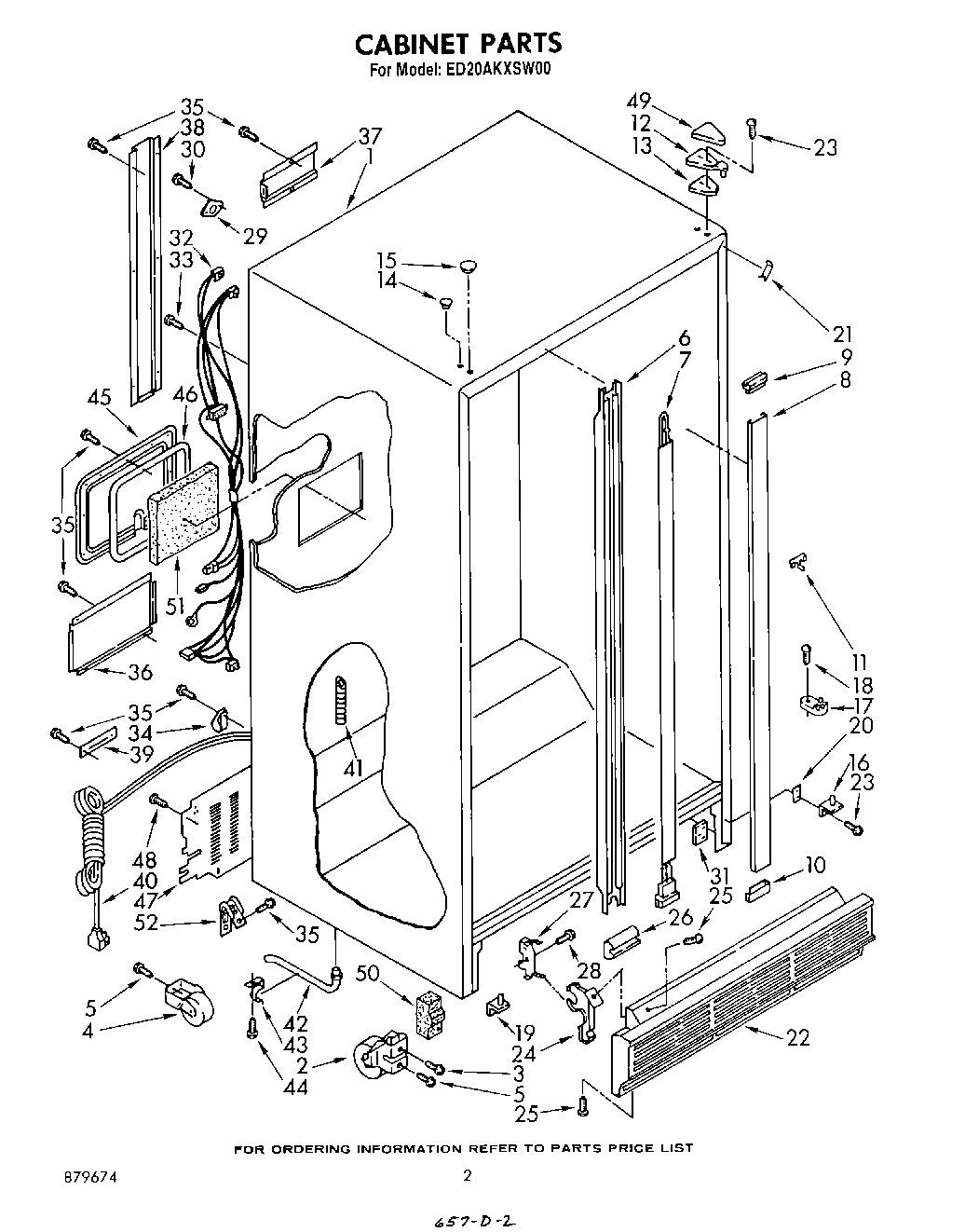

ED20AKXSW00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Mullion Rail
7	Heater, Mullion
8	Front Mullion Rail (Golden Harvest)
8	Front Mullion Rail (Almond)
8	Front Mullion Rail (White)
8	Front Mullion Rail (Toast)
8	Front Mullion Rail (Platinum)
9	Filler Top Mullion (White)
9	Filler Top Mullion (Golden Harvest)
9	Filler Top Mullion (Almond)
9	Filler Top Mullion (Platinum)
9	Filler Top Mullion (Toast)
10	Filler Bottom Mullion (Golden Harvest)
10	Filler Bottom Mullion (White)
10	Filler Bottom Mullion (Platinum)
10	Filler Bottom Mullion (Toast)
10	Filler Bottom Mullion (Almond)
11	Clip, Ground
12	Shim, Hinge Top
13	Shim, Hinge
14	Hole, Plug (Toast)
14	Hole, Plug (Platinum)
14	Hole, Plug (White)
14	Hole Plug (Almond)
14	Hole, Plug (Golden Harvest)
15	Hole Plug (Platinum)
15	Hole Plug (Toast)
15	Hole Plug (Bold)
15	Hole Plug (White)
15	Hole Plug (Almond)
16	Hinge Bottom (R.H)
17	WPW10329686 Whirlpool Door Cam Black
18	WP486579 Whirlpool Air Conditioner Screw
19	Hinge Bottom (L.H)
20	Spacer, Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (Platinum)
21	Filler, Wrapper (White)
21	Filler, Wrapper (Toast)
21	Filler, Wrapper (Golden Harvest)
22	Grille
23	WP999367 Whirlpool Refrigerator Screw
23	Screw (Repair)
24	WP944224 Whirlpool Refrigerator Support
25	Screw, 8-22 x 5/16 (4)
26	Bumper, Grille
27	WPL 989068
28	W11624204 Whirlpool Screw
29	WPL 1114614
31	Tap Plate
32	WPL 1110750
33	WP250830 Whirlpool Refrigerator Screw
34	Clamp
35	WP489069 Whirlpool Compactor Screw
36	Cover, Wiring
37	Wiring Shield, Short
38	Wiring Shield, Long
39	Tube Clamp (2)
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
44	Screw, 8-15 x 3/8
45	Cover, Plug
46	Sealing Gasket
47	Cover, Unit
49	Hinge Cover (Toast)
49	1119787 Whirlpool Refrigerator Hinge Cover
49	Hinge Cover (Golden Harvest)
50	WPL 836372
51	Insulation
52	549193 Whirlpool Refrigerator Power Clamp
