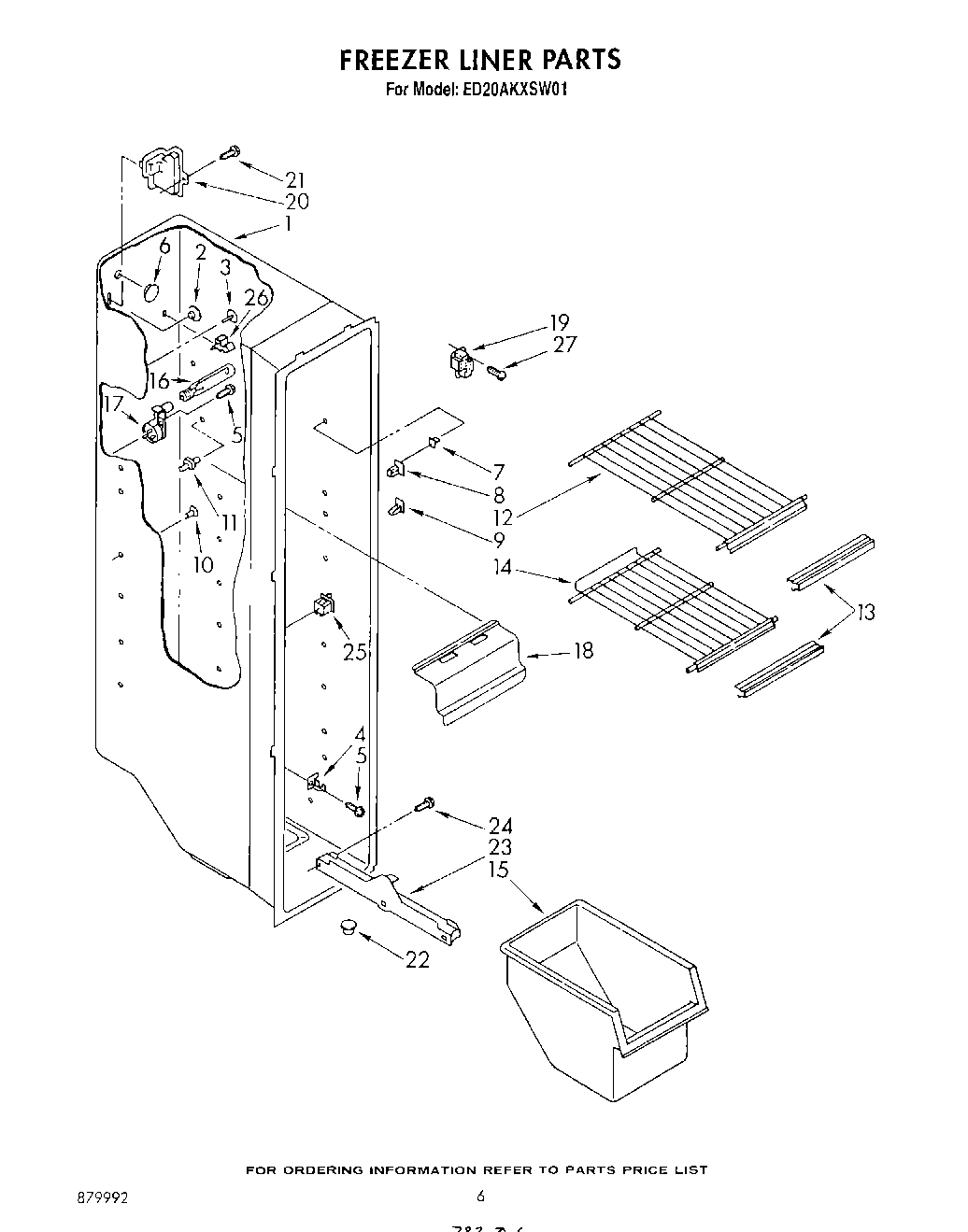

ED20AKXSW01 04 – FREEZER LINERadmin2025-04-26T11:49:30+00:00ED20AKXSW01 04 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Hole Plug (2) |
| 3 | WP941839 Whirlpool Refrigerator Button Plug |
| 4 | Evaporator, Support |
| 5 | W11624204 Whirlpool Screw |
| 6 | WPL 1120224 |
| 7 | Stud, Support |
| 8 | Stud, Front R.S. |
| 9 | Stud, Rear R.S. |
| 10 | Grommet (8) |
| 11 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
| 12 | Shelf |
| 13 | Trim Shelf |
| 14 | Shelf (3) |
| 15 | Freezer Bin |
| 16 | WP548049 Whirlpool Refrigerator Light Bulb |
| 17 | Socket Assembly |
| 18 | Lens, Light |
| 19 | Terminal Block, Multiple |
| 20 | Cover, Wiring |
| 21 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | Fitting, Drain |
| 23 | Slide, Basket (Left Side) |
| 24 | Screw, 8 x 1 |
| 25 | W11384469 Whirlpool Door Switch |
| 26 | 2215823 Whirlpool Refrigerator Clip |
| 27 | SCREW |
| 27 | WP489478 Whirlpool Refrigerator Screw |
