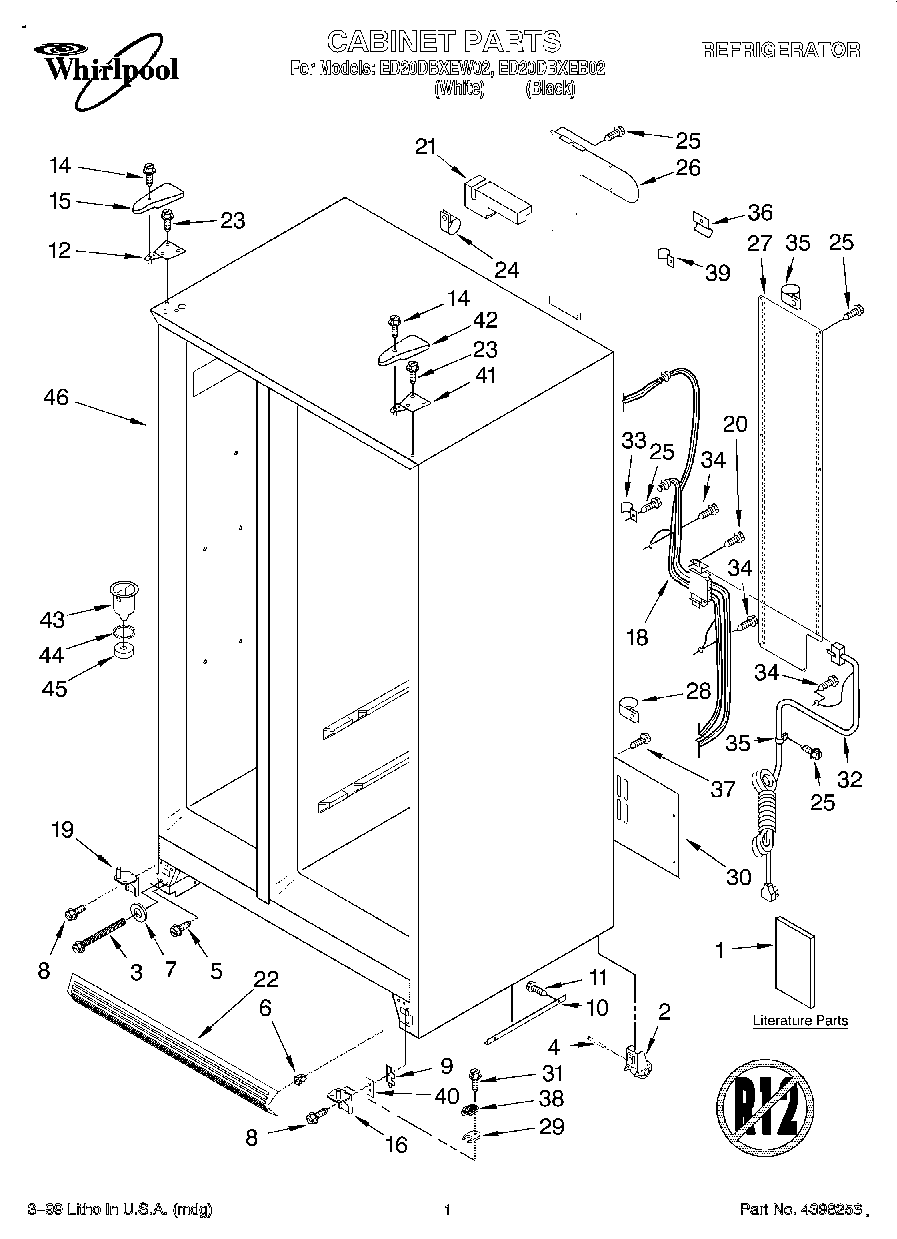

ED20DBXEB02 01 – CABINET, LITERATURE

Products

Position	Product
1	Modular Icemaker Service Sheet
1	WPL LIT4343601
1	Literature Parts (Tech Sheet)
1	WPL LIT4344132
2	Roller (4)
3	Screw, Rear Roller Adjust
4	Pin, Clevis (4)
5	Screw, Front Roller Adjust
6	WPM0117303 Whirlpool Refrigerator Clip
7	Washer
8	WP67006715 Whirlpool Refrigerator Screw
9	Spacer
10	Support (2)
11	Screw
12	Hinge Top (L.H.)
14	Screw
15	Hinge Cover (FC) (White)
15	Hinge Cover (FC) (Black)
16	Hinge Bottom (R.H) (Black)
16	Hinge Bottom (R.H) (White)
18	Wire Harness
19	Hinge Bottom (L.H) (Black)
19	Hinge Bottom (L.H) (White)
20	WP489069 Whirlpool Compactor Screw
21	Air Baffle
22	12321807Q Whirlpool Refrigerator Toe Grille Assembly with Clips
22	Grille (Black)
23	Screw
24	Clamp, Tube
25	WPL 4343759
26	Wire Cover
27	Back Cover
28	Clip, Water Tube
29	Shim, Door Closer (White)
29	Shim, Door Closer (Black)
29	Shim, Door Closer (White)
29	Shim, Door Closer (Black)
30	Cover, Unit
31	Screw
32	Power Cord
33	Tube Clamp
34	Screw
35	WPL 4343661
36	WPM0104106 Whirlpool Refrigerator Clip
37	Screw
38	R0181181 Whirlpool Refrigerator Door Closer Cam Kit
39	WPM0114003 Whirlpool Microwave Speed Clip Clamp
40	Shim, Hinge
41	Hinge Top (R.H.)
42	Hinge Cover (RC) (Black)
42	Hinge Cover (RC) (White)
43	W10815413 Whirlpool Refrigerator Funnel
44	WPM0500703 Whirlpool Refrigerator O-Ring Seal
45	WPB8381501 Whirlpool Refrigerator Door Gasket
