ED20DBXEB02 04 – FREEZER LINER

ED20DBXEB02 04 – FREEZER LINER

Written by

in

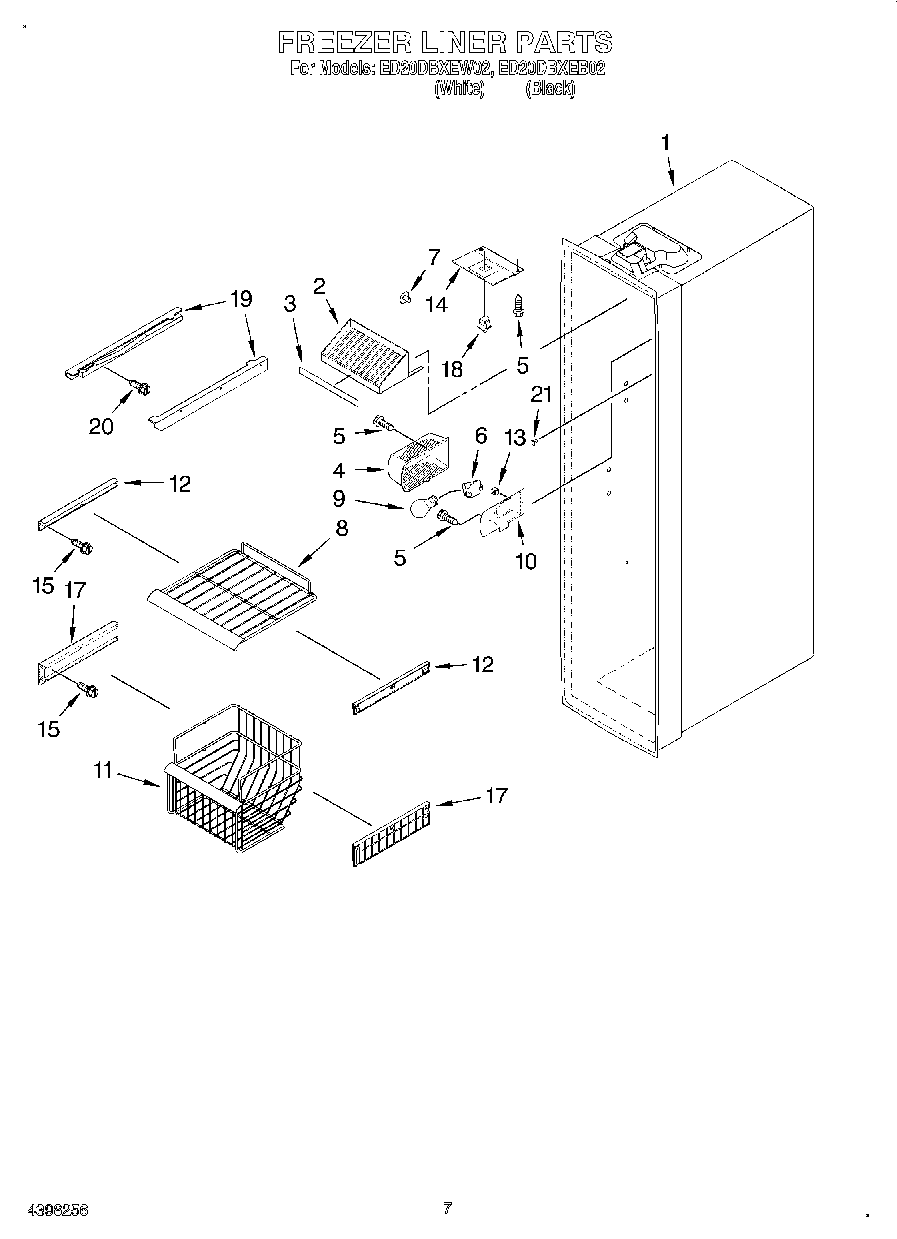

ED20DBXEB02 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Top Shelf
3Insert, Top Shelf
4Light Lens
5WP489464 Whirlpool Refrigerator Screw
6Light Socket
7Support, Stud (2)
8Shelf (3)
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10Plate, Socket
11Basket, Slope
12Shelf Track (Single) (Left Side)
12Shelf Track (Single) (Right Side)
13WPL 4343682
14Cover, Light Switch
15WP98165 Whirlpool Screw
17Shelf Track (Left Side (2))
17Shelf Track (Right Side (2))
18WP4387911 Whirlpool Refrigerator Switch
19Slide, Ice Container (Right Side)
1967005375 Whirlpool Refrigerator Glide, Freezer (Left)
20Screw
21WPL 4343657
