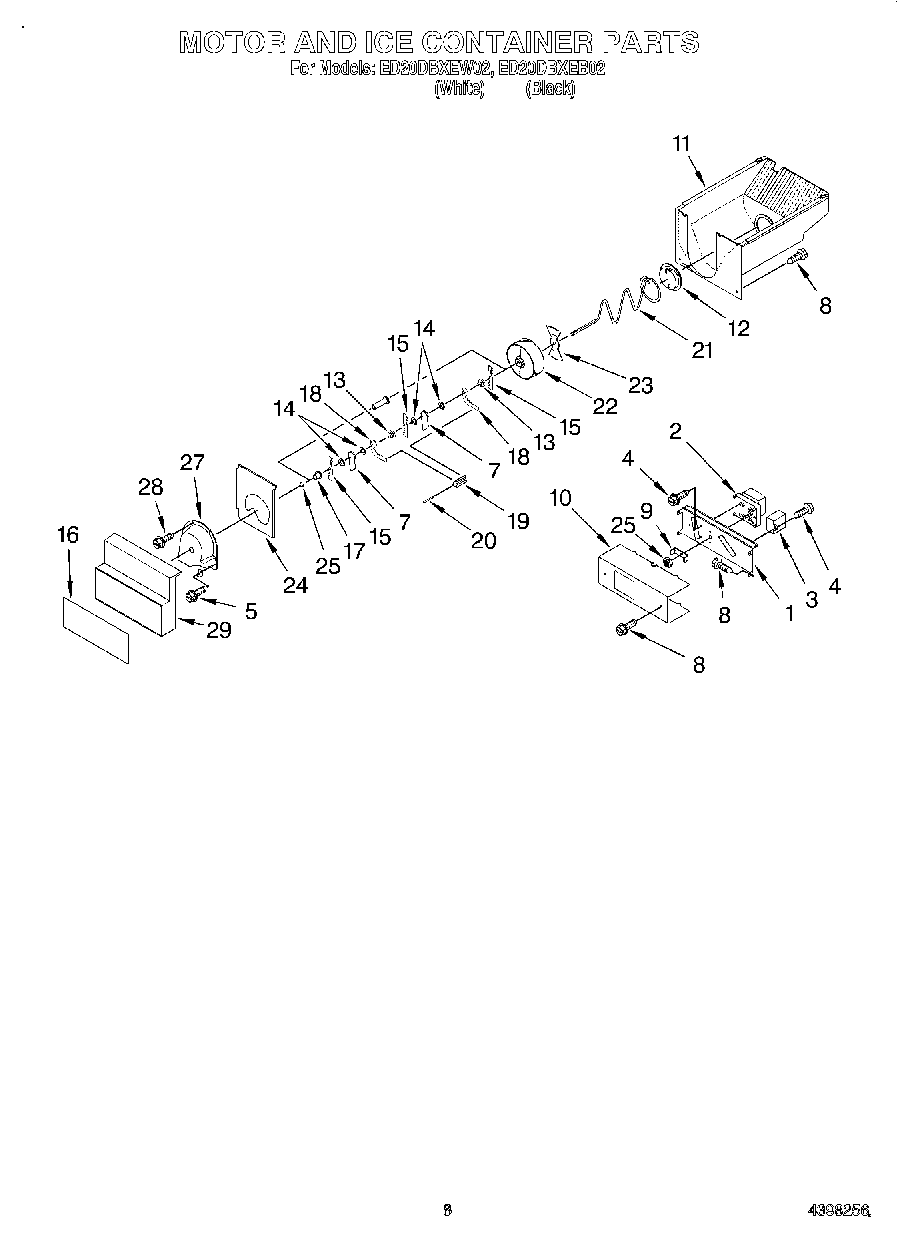

ED20DBXEB02 05 – MOTOR AND ICE CONTAINER

ED20DBXEB02 05 – MOTOR AND ICE CONTAINER

Written by

in

ED20DBXEB02 05 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1Bracket, Motor
2Motor, Dispenser
3WPL 4343851
4WPW10139210 Whirlpool Screw
5Screw
7Damper, Ice
8WP489464 Whirlpool Refrigerator Screw
9WP10114901 Whirlpool Refrigerator Coupling
10Cover, Motor
11Ice Container
12WPD7749401 Whirlpool Drive Gear
13Spacer, Step (2)
14Spacer, Wavered
15Blade, Rotary
16Insert, Cover
17Spacer
18Blade, Fixed (2)
19Block, Blade
20Roll Pin
21Conveyor
22WP67002052 Whirlpool Ice Crusher Blade
23Drive Bar
24Front, Ice Crusher
25Nut, Locking
27Housing, Crusher
28Screw
29Front Cover, Ice Container
