ED20DBXEN00 11 – ICEMAKER, LIT/OPTIONAL

ED20DBXEN00 11 – ICEMAKER, LIT/OPTIONAL

Written by

in

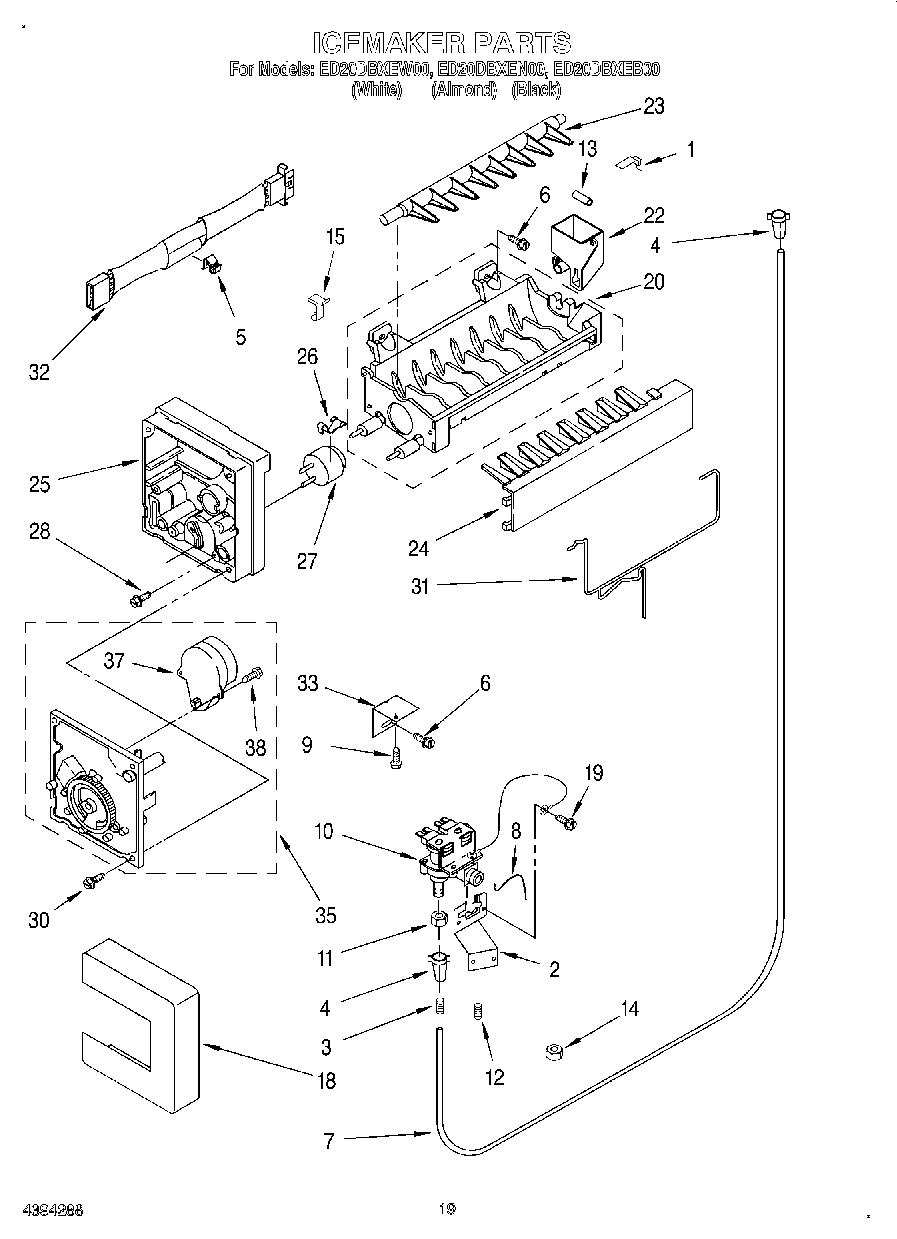

ED20DBXEN00 11 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
NI	4317943 Whirlpool Refrigerator Ice Maker Assembly
	Torx Key
	WPL LIT4344132
	WPL LIT4343601
	Modular Icemaker Service Sheet
	WPL LIT4343656
	WPL LIT4343600
1	WPL 4343703
2	Bracket, Water Valve
3	WPL 4343685
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP489474 Whirlpool Refrigerator Screw
7	W10823511 Whirlpool Refrigerator Water Tube
8	Clip, Water Valve
9	WP489478 Whirlpool Refrigerator Screw
10	WPW10245167 Whirlpool Refrigerator Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Spring
13	Tube, Water Inlet
14	Nut
15	WPL 4343984
18	Cover
19	681390 Whirlpool Refrigerator Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	Harness, Wiring
33	WP2256087 Whirlpool Refrigerator Bracket
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	606755 Whirlpool Refrigerator Bag
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	Ice Container Assembly
100	WPL 876029
100	350942 Whirlpool Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	350930 Whirlpool White Spray Paint
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	Enamel, Black (1 Qt. Uncut)
100	WPL 799833
100	TAPE, VINYL (3/4 X 108“)
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	212643 Whirlpool Refrigerator Permagum Sealer
