ED20DBXEN01 01 – CABINET

ED20DBXEN01 01 – CABINET

Written by

in

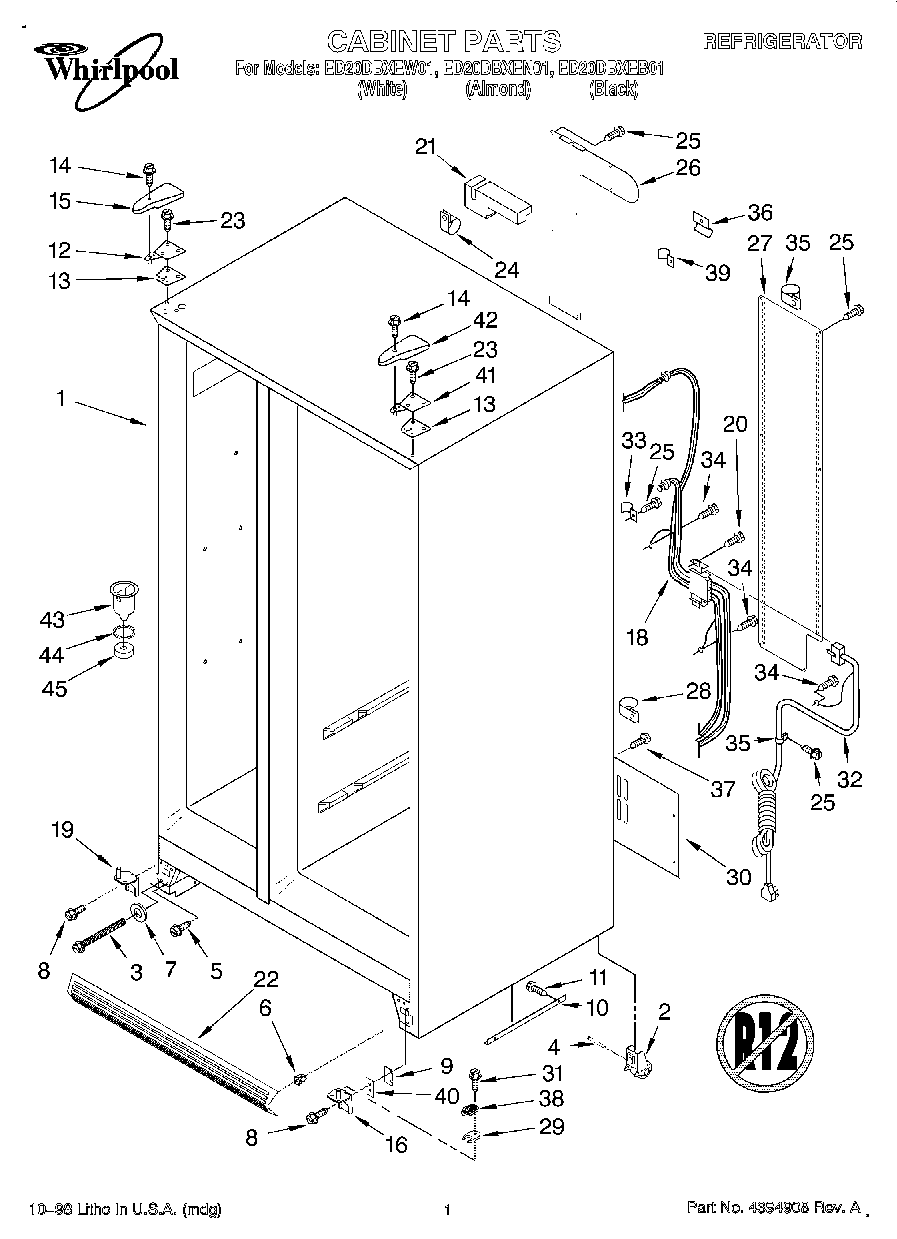

ED20DBXEN01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller (4)
3Screw, Rear Roller Adjust
4Pin, Clevis (4)
5Screw, Front Roller Adjust
6WPM0117303 Whirlpool Refrigerator Clip
7Washer
8WP67006715 Whirlpool Refrigerator Screw
9Spacer
10Support (2)
11Screw
12Hinge Top (L.H.)
13Shim, Hinge Top
14Screw
15Hinge Cover (FC) (White)
15Hinge Cover (FC) (Black)
15Hinge Cover (FC) (Almond)
16Hinge Bottom (R.H) (White)
16Hinge Bottom (R.H) (Black)
18Wire Harness
19Hinge Bottom (L.H) (White)
19Hinge Bottom (L.H) (Black)
20WP489069 Whirlpool Compactor Screw
21Air Baffle
2212321807Q Whirlpool Refrigerator Toe Grille Assembly with Clips
22Grille (Almond)
22Grille (Black)
23Screw
24Clamp, Tube
25WPL 4343759
26Wire Cover
27Back Cover
28Clip, Water Tube
29Shim, Door Closer (White)
29Shim, Door Closer (Black)
29Shim, Door Closer (Black)
29Shim, Door Closer (White)
30Cover, Unit
31WP250830 Whirlpool Refrigerator Screw
32Power Cord
33Tube Clamp
34Screw
35WPL 4343661
36WPM0104106 Whirlpool Refrigerator Clip
37Screw
38R0181181 Whirlpool Refrigerator Door Closer Cam Kit
39WPM0114003 Whirlpool Microwave Speed Clip Clamp
40Shim, Hinge
41Hinge Top (R.H.)
42Hinge Cover (RC) (White)
42Hinge Cover (RC) (Black)
42Hinge Cover (RC) (Almond)
43W10815413 Whirlpool Refrigerator Funnel
44WPM0500703 Whirlpool Refrigerator O-Ring Seal
45WPB8381501 Whirlpool Refrigerator Door Gasket
