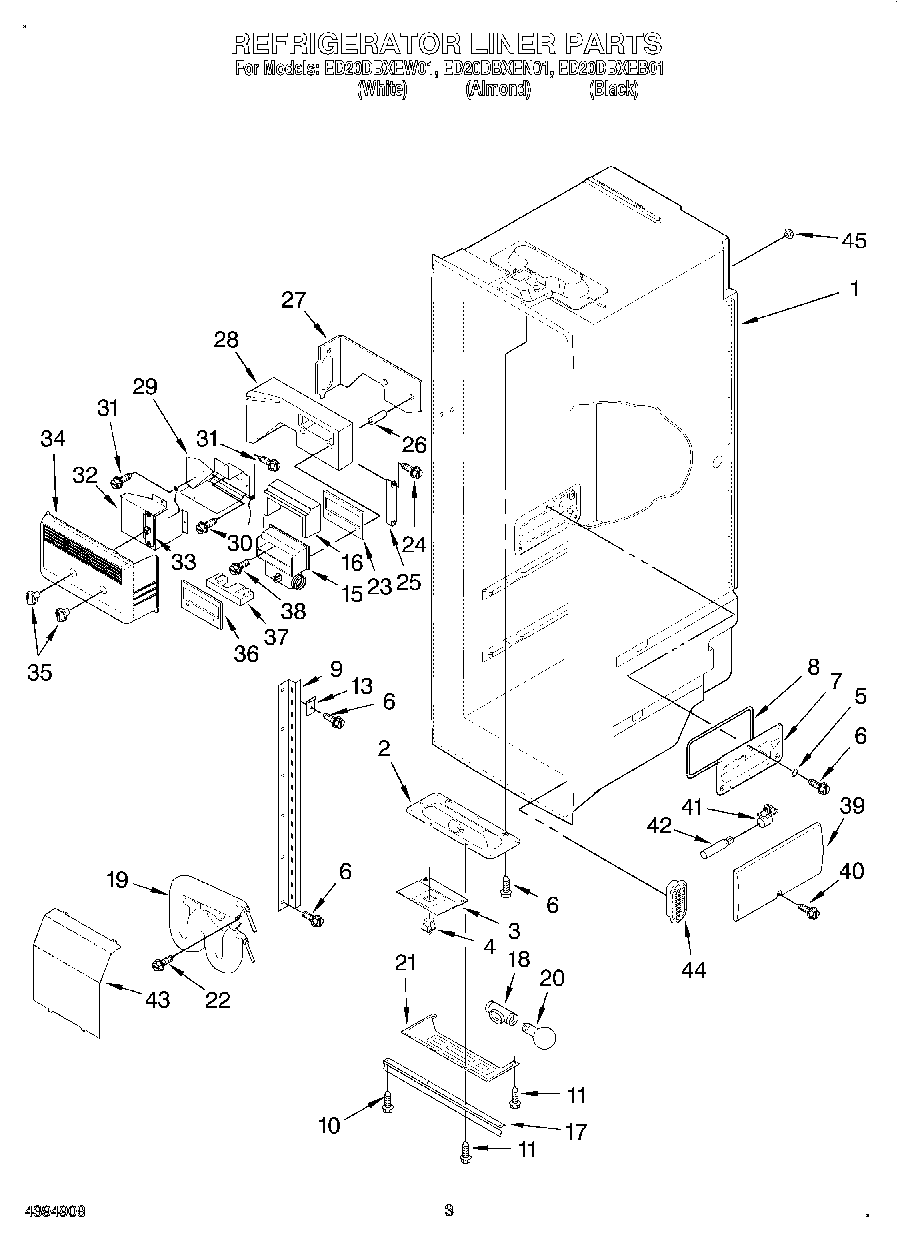

ED20DBXEN01 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	Cover, Light Switch
4	W11384469 Whirlpool Door Switch
5	WPL 4343682
6	WP489478 Whirlpool Refrigerator Screw
7	Housing, Side Light
8	Gasket
9	Shelf Ladder (Left Side)
9	Shelf Ladder (Right Side)
10	WP489464 Whirlpool Refrigerator Screw
11	Screw (4)
13	Bracket Retainer
15	Control, Damper
16	Insulation, Damper
17	Shield, Light
18	Socket, Dual
19	Reservoir
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
21	Light Lens, Top
22	WP98165 Whirlpool Screw
23	Gasket, Damper
24	WP489474 Whirlpool Refrigerator Screw
25	Clamp, Air Duct
26	Spacer, Damper
27	Gasket, Air Duct
28	Air Duct
29	Bracket, Rear
31	WP489399 Whirlpool Refrigerator Screw
32	Thermostat Bracket
33	R0161092 Whirlpool Refrigerator Cold Control Temperature Thermostat
34	Cover, Control
35	Knob, Thermostat
36	Gasket, Front
37	Insert
38	Screw
39	Light Lens, Side
40	WPL 4343749
41	Light Socket
42	WP548049 Whirlpool Refrigerator Light Bulb
43	Cover, Reservior
44	Grille, Air Return
45	Plug, Button
