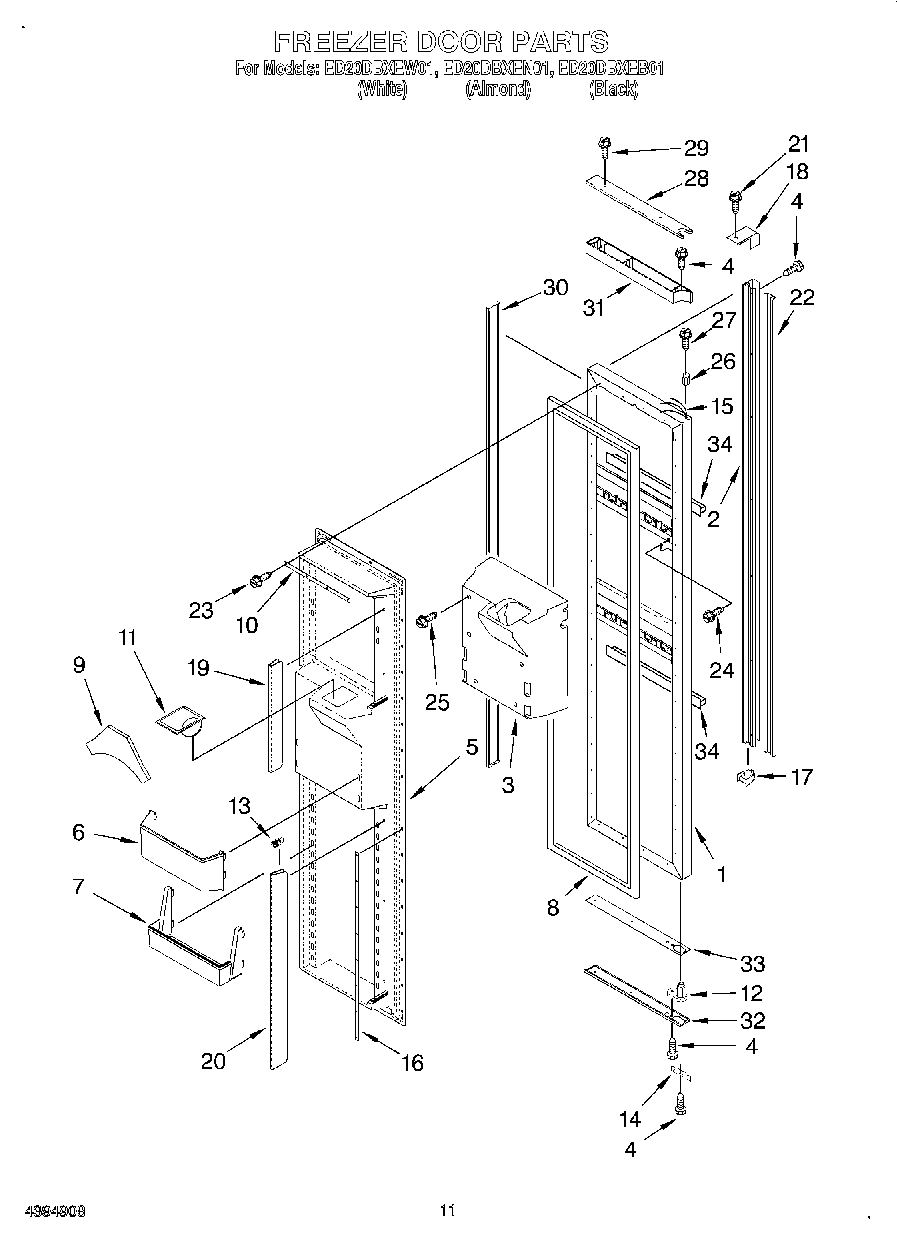

ED20DBXEN01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
1	Freezer Door Panel (Includes Insulation) (Almond)
1	Freezer Door Panel (Includes Insulation) (White)
2	Handle (Silver)
2	Handle (Almond)
2	Handle (White)
3	Insulation, Dispenser
4	WP98165 Whirlpool Screw
5	Interior Panel
6	Trivet, Shelf
7	Shelf Bin (4)
8	Door Gasket, Magnetic (White)
8	Door Gasket, Magnetic (Black)
9	Seal, Ice Chute
10	Retainer (Top & Bottom)
11	Chute, Ice
12	R0181181 Whirlpool Refrigerator Door Closer Cam Kit
13	Clip, Removable Door Dike
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (White)
14	Bracket, Door Stop (Almond)
15	Harness, Door
16	Retainer (Side)
17	Cap, Bottom (Silver)
17	Cap, Bottom (Almond)
17	Cap, Bottom (White)
18	Cap, Top (Silver)
18	Cap, Top (White)
18	Cap, Top (Almond)
19	Removable Door Dike, Top
20	Removable Door Dike, Bottom
21	Screw
22	Insert, Handle (Almond)
22	Insert, Handle (Silver)
22	Insert, Handle (White)
23	WPL 4343811
24	WP489399 Whirlpool Refrigerator Screw
25	Button Plug
26	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
26	Bushing (Black)
27	Screw, Ground
28	Trim, Door (Top) (White)
28	Trim, Door (Top) (Almond)
28	Trim, Door (Top) (Silver)
29	Screw
30	WPL 4343637
30	Trim, Do
30	Trim, Door (Side) (White)
31	WPL 4344006
31	WPL 4344007
31	WPL 4344008
32	WPL 4344035
32	WPL 4344034
32	WPL 4344036
33	WPL 4344037
34	Retainer, Decorative Panel (Black)
34	Retainer, Decorative Panel (Almond)
34	Retainer, Decorative Panel (White)
