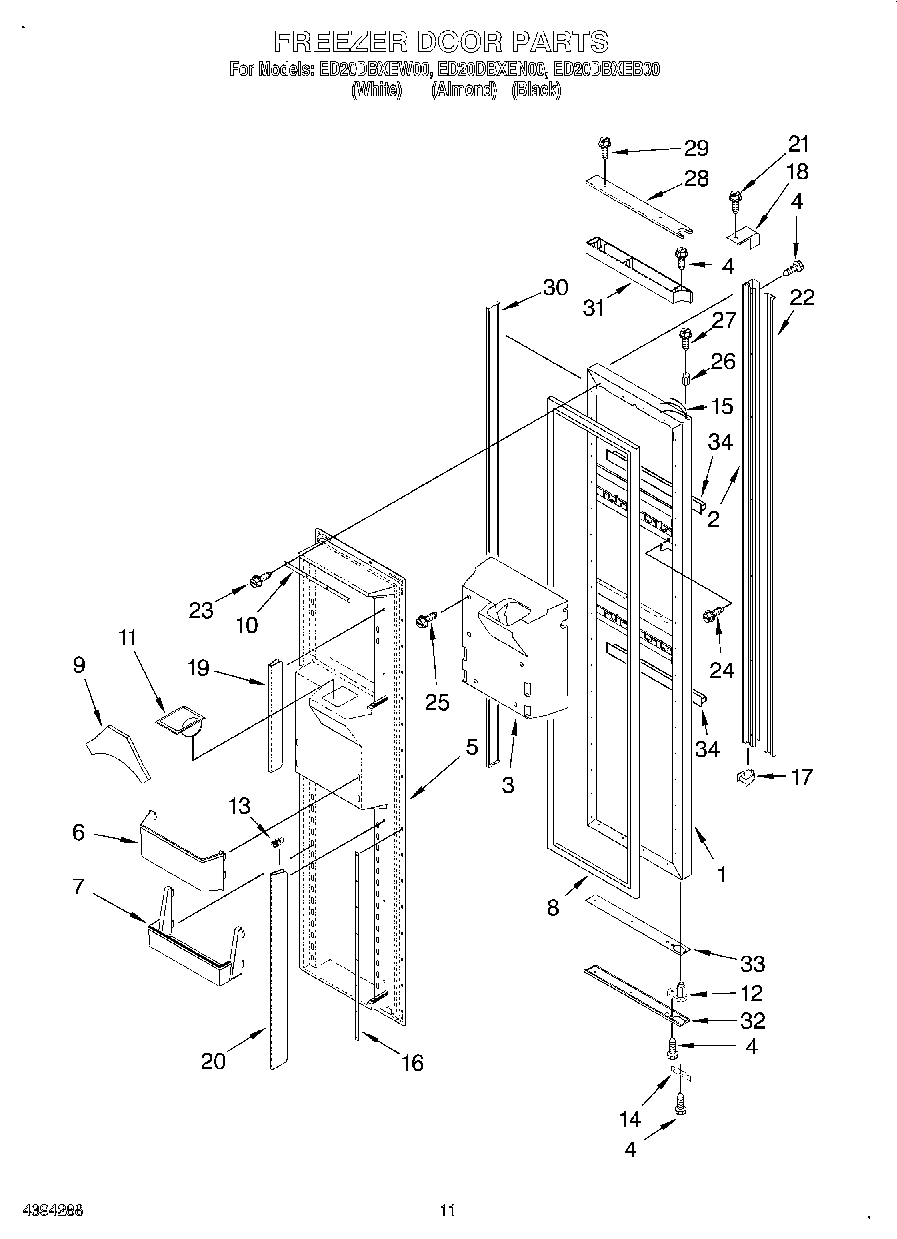

ED20DBXEW00 07 – FREEZER DOORadmin2025-04-26T11:49:55+00:00ED20DBXEW00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) (Black) |
| 1 | Freezer Door Panel (Includes Insulation) (Almond) |
| 1 | Freezer Door Panel (Includes Insulation) (White) |
| 2 | Handle (Silver) |
| 2 | Handle (Almond) |
| 2 | Handle (White) |
| 3 | Insulation, Dispenser |
| 4 | WP98165 Whirlpool Screw |
| 5 | Interior Panel |
| 6 | Trivet, Shelf |
| 7 | Shelf Bin (4) |
| 8 | Door Gasket, Magnetic (White) |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Seal, Ice Chute |
| 10 | Retainer (Top & Bottom) |
| 11 | Chute, Ice |
| 12 | R0181181 Whirlpool Refrigerator Door Closer Cam Kit |
| 13 | Clip, Removable Door Dike |
| 14 | Bracket, Door Stop (Black) |
| 14 | Bracket, Door Stop (White) |
| 14 | Bracket, Door Stop (Almond) |
| 15 | Harness, Door |
| 16 | Retainer (Side) |
| 17 | Cap, Bottom (Silver) |
| 17 | Cap, Bottom (Almond) |
| 17 | Cap, Bottom (White) |
| 18 | Cap, Top (Silver) |
| 18 | Cap, Top (White) |
| 18 | Cap, Top (Almond) |
| 19 | Removable Door Dike, Top |
| 20 | Removable Door Dike, Bottom |
| 21 | Screw |
| 22 | Insert, Handle (Almond) |
| 22 | Insert, Handle (Silver) |
| 22 | Insert, Handle (White) |
| 23 | WPL 4343811 |
| 24 | WP489399 Whirlpool Refrigerator Screw |
| 25 | Button Plug |
| 26 | WP67004977 Whirlpool Refrigerator Door Hinge Bushing |
| 26 | Bushing (Black) |
| 27 | Screw, Ground |
| 28 | Trim, Door (Top) (White) |
| 28 | Trim, Door (Top) (Almond) |
| 28 | Trim, Door (Top) (Silver) |
| 29 | Screw |
| 30 | WPL 4343637 |
| 30 | Trim, Do |
| 30 | Trim, Door (Side) (White) |
| 31 | WPL 4344006 |
| 31 | WPL 4344007 |
| 31 | WPL 4344008 |
| 32 | WPL 4344035 |
| 32 | WPL 4344034 |
| 32 | WPL 4344036 |
| 33 | WPL 4344037 |
| 34 | Retainer, Decorative Panel (Black) |
| 34 | Retainer, Decorative Panel (Almond) |
| 34 | Retainer, Decorative Panel (White) |
