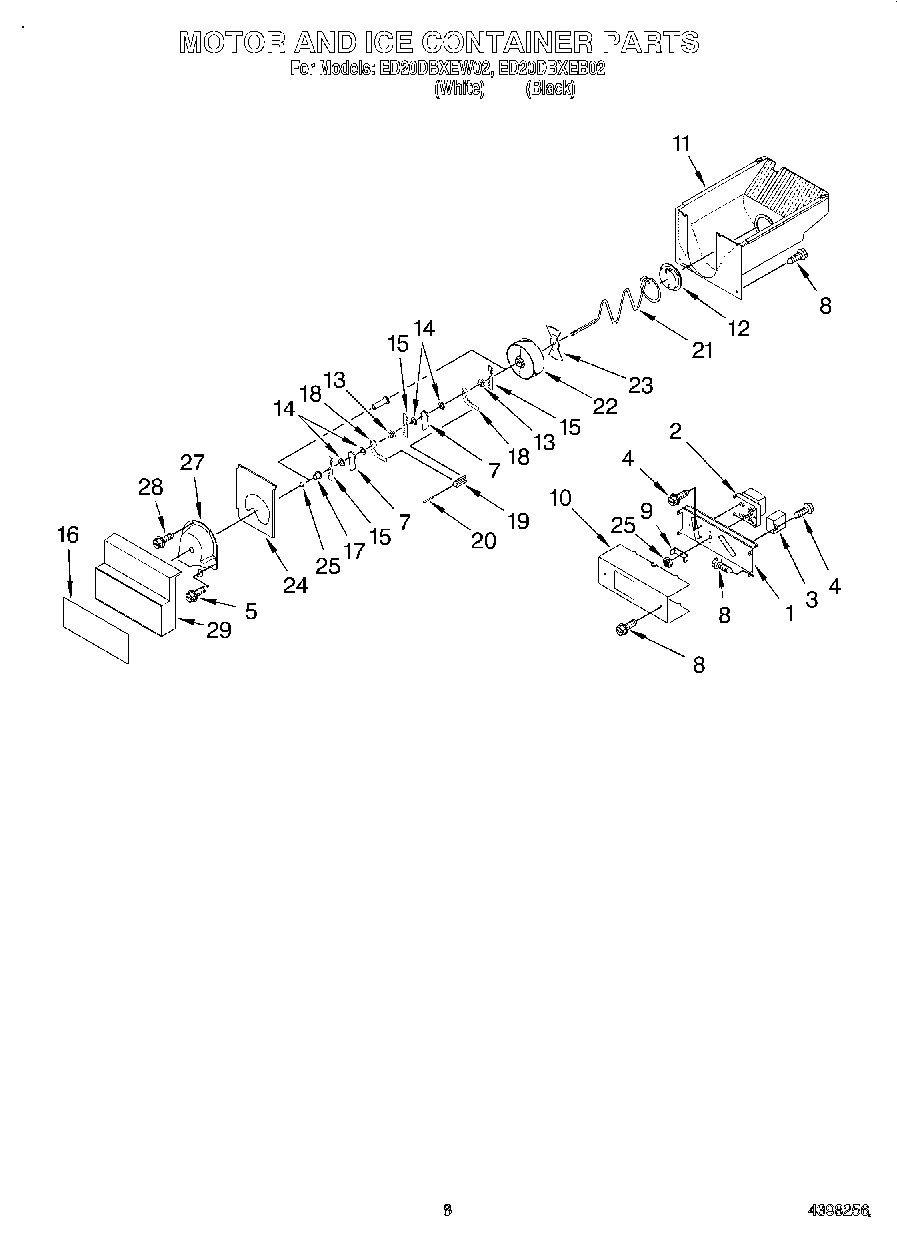

ED20DBXEW02 05 – MOTOR AND ICE CONTAINERadmin2025-04-26T11:49:32+00:00ED20DBXEW02 05 – MOTOR AND ICE CONTAINER
Products
| Position | Product |
|---|
| 1 | Bracket, Motor |
| 2 | Motor, Dispenser |
| 3 | WPL 4343851 |
| 4 | WPW10139210 Whirlpool Screw |
| 5 | Screw |
| 7 | Damper, Ice |
| 8 | WP489464 Whirlpool Refrigerator Screw |
| 9 | WP10114901 Whirlpool Refrigerator Coupling |
| 10 | Cover, Motor |
| 11 | Ice Container |
| 12 | WPD7749401 Whirlpool Drive Gear |
| 13 | Spacer, Step (2) |
| 14 | Spacer, Wavered |
| 15 | Blade, Rotary |
| 16 | Insert, Cover |
| 17 | Spacer |
| 18 | Blade, Fixed (2) |
| 19 | Block, Blade |
| 20 | Roll Pin |
| 21 | Conveyor |
| 22 | WP67002052 Whirlpool Ice Crusher Blade |
| 23 | Drive Bar |
| 24 | Front, Ice Crusher |
| 25 | Nut, Locking |
| 27 | Housing, Crusher |
| 28 | Screw |
| 29 | Front Cover, Ice Container |
