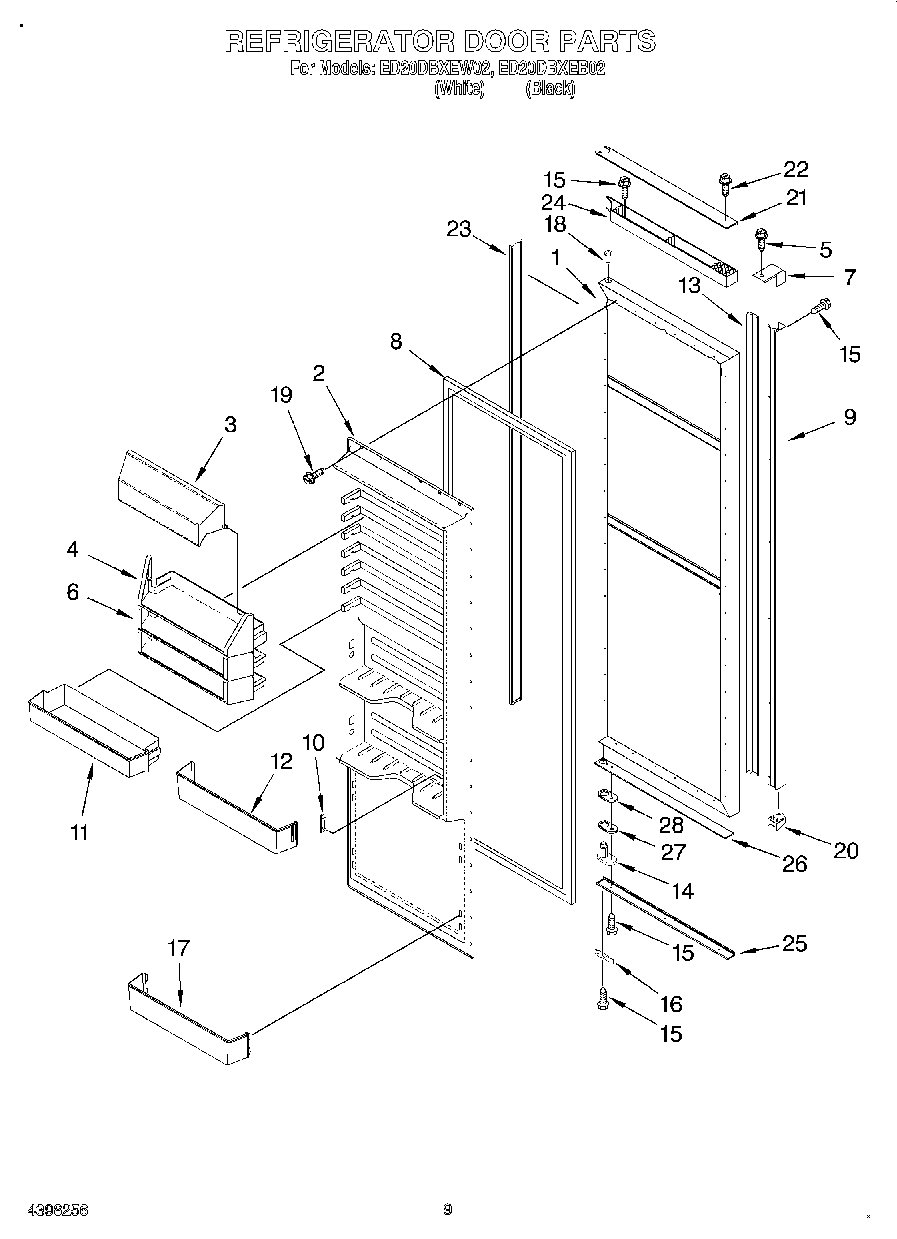

ED20DBXEW02 06 – REFRIGERATOR DOORadmin2025-04-26T11:49:37+00:00ED20DBXEW02 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Insulation) (White) |
| 1 | Refrigerator Door Panel (Includes Insulation) (Black) |
| 2 | Interior Panel |
| 3 | Door, Dairy |
| 4 | Shelf, Dairy |
| 5 | Screw |
| 6 | Shelf Bin (2) |
| 7 | Cap, Handle Top (White) |
| 7 | Cap, Handle Top (Silver) |
| 8 | Door Gasket, Magnetic (Black) |
| 8 | Door Gasket, Magnetic (White) |
| 9 | Door Handle (White) |
| 9 | Door Handle (Silver) |
| 10 | Plug-Trim |
| 11 | Shelf Bin |
| 12 | Shelf Bin (2) |
| 13 | Insert, Handle (White) |
| 13 | Insert, Handle (Silver) |
| 14 | R0181181 Whirlpool Refrigerator Door Closer Cam Kit |
| 15 | WP98165 Whirlpool Screw |
| 16 | Bracket, Door Stop (White) |
| 16 | Bracket, Door Stop (Black) |
| 17 | Shelf Bin (2) |
| 18 | Hinge Sleeve (White) |
| 18 | Hinge Sleeve (Black) |
| 19 | Screw |
| 20 | Cap, Bottom (White) |
| 20 | Cap, Bottom (Silver) |
| 21 | Trim, Door (Top) (White) |
| 21 | Trim, Door (Top) (Black) |
| 22 | Screw |
| 23 | Trim, Door (Side) (White) |
| 23 | Trim, Door (Side) (Silver) |
| 24 | Extension (Black) |
| 24 | Extension (White) |
| 25 | WPL 4344029 |
| 25 | Trim |
| 26 | WPL 4344030 |
| 27 | Shim, Door Closer (White) |
| 27 | Shim, Door Closer (Black) |
| 28 | Shim, Door Closer (Black) |
| 28 | WPL 4378872 |
| 28 | WPL 4378870 |
| 28 | Shim, Door Closer (White) |
