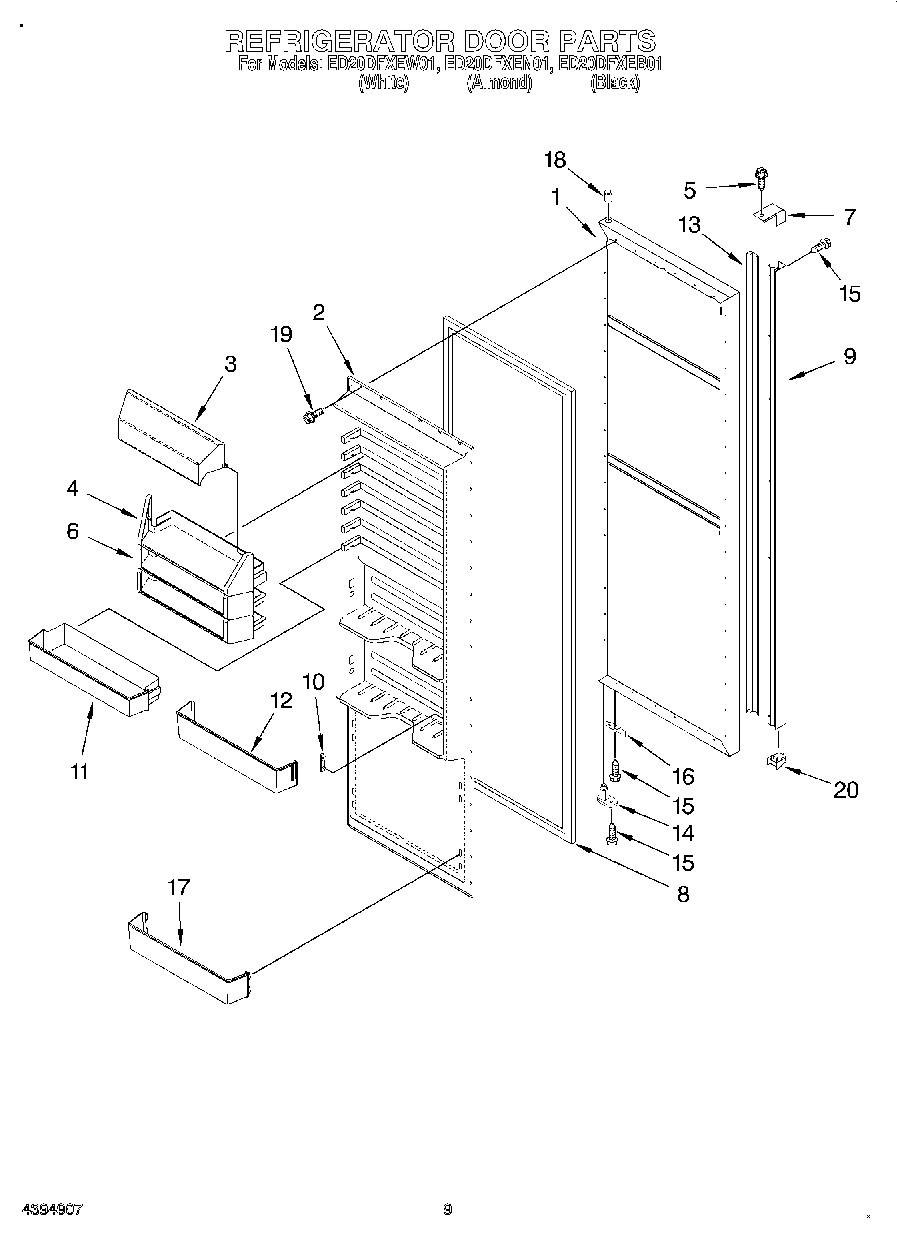

ED20DFXEW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (Almond)
1	Refrigerator Door Panel (Includes Insulation) (White)
1	Refrigerator Door Panel (Includes Insulation) (Black)
2	Interior Panel
3	Door, Dairy
4	Shelf, Dairy
5	Screw
6	Shelf Bin (2)
7	Cap, Handle Top (White)
7	Cap, Handle Top (Almond)
7	Cap, Handle Top (Silver)
8	Door Gasket, Magnetic (Black)
8	Door Gasket, Magnetic (White)
9	Door Handle (White)
9	Door Handle (Almond)
9	Door Handle (Silver)
10	Plug-Trim
11	Shelf Bin
12	Shelf Bin (2)
13	Insert, Handle (White)
13	Insert, Handle (Silver)
13	Insert, Handle (Almond)
14	R0181181 Whirlpool Refrigerator Door Closer Cam Kit
15	WP98165 Whirlpool Screw
16	Bracket, Door Stop (Almond)
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (White)
17	Shelf Bin (2)
18	Hinge Sleeve (White)
18	Hinge Sleeve (Black)
19	WPL 4343811
20	WPL 4378870
20	WPL 4378871
20	Cap, Bottom (White)
20	DOOR PANEL TRIM KIT (White)
20	DOOR PANEL TRIM KITS (Almond)
20	DOOR PANEL TRIM KITS (Silver)
20	Cap, Bottom (Silver)
20	Cap, Bottom (Almond)
20	WPL 4378872
