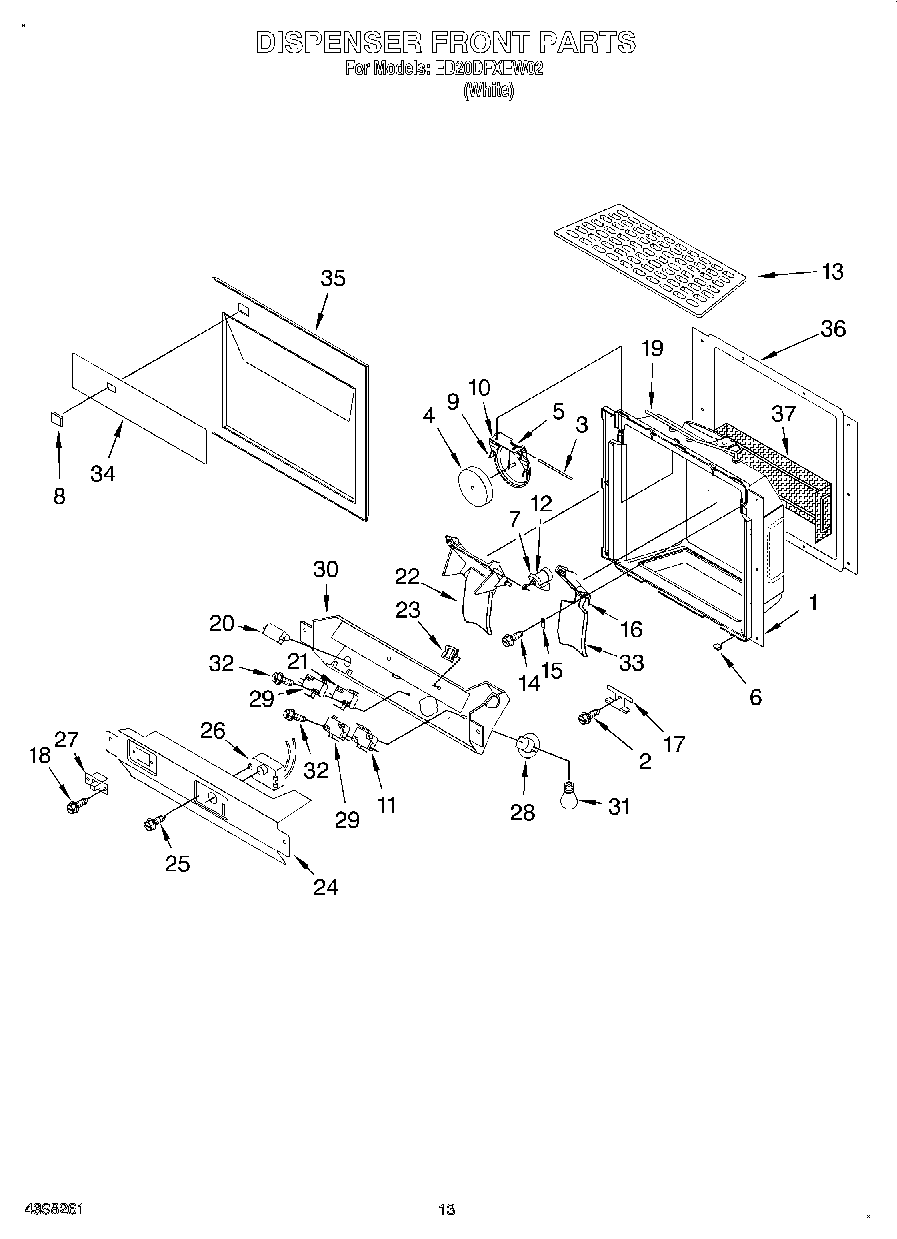

ED20DFXEW02 08 – DISPENSER FRONT

ED20DFXEW02 08 – DISPENSER FRONT

Written by

in

ED20DFXEW02 08 – DISPENSER FRONT

Products

PositionProduct
1Housing, Dispenser (Includes No.37) (White)
2Screw
3Pin, Chute Door
4Insulation, Door
5Spring, Chute Door
6Clip, Front
7Retainer, Door Delay
8Cap, Cube/Crush Switch (White)
9Door, Ice
10Bracket, Chute Door
11Switch
12Mechanism Delay
13Grille, Overflow (White)
14Screw
15Clip, Lever (4)
16Spring, Lever
17Clip, Cover
18Screw
19W10823511 Whirlpool Refrigerator Water Tube
20Light Switch
21Micro Switch
22Lever, Ice Dispenser (White)
23WPL 4343969
24Cover
25Screw
26Switch, Sensor
27Switch, Cube/ Crush
28Lamp Holder
29WP10533003 Whirlpool Refrigerator Limit Switch
30Bracket, Control
31WP22002263 Whirlpool Dryer 10W Light Bulb
32Screw
33Lever, Water Dispenser (White)
34Plaque, Front Cover (White)
35Front Cover, Housing (White)
36Gasket
37Heater, Dispenser
