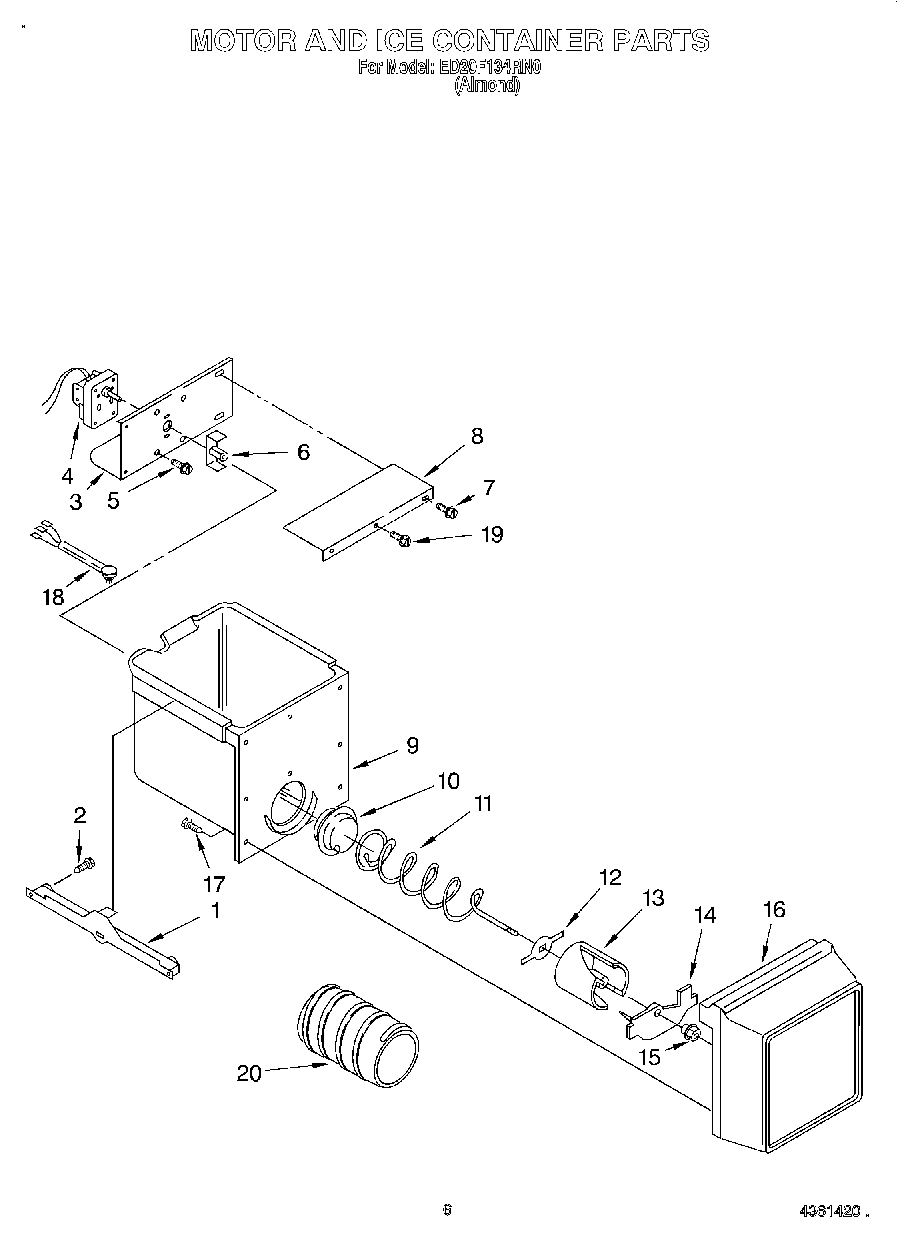

ED20F134RN0 04 – MOTOR AND ICE CONTAINER

ED20F134RN0 04 – MOTOR AND ICE CONTAINER

Written by

in

ED20F134RN0 04 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1W10845583 Whirlpool Refrigerator Track
1W10845585 Whirlpool Refrigerator Track
2718257 Whirlpool Dishwasher Screw
3Bracket, Ice Dispenser
4Motor
5303776 Whirlpool Dishwasher Screw
6COUPLING AUGER MOTOR
7WP489478 Whirlpool Refrigerator Screw
8WPW10284487 Whirlpool Refrigerator Bracket
9WP2196090 Whirlpool Refrigerator Container
10W10749708 Whirlpool Refrigerator Coupling
11Conveyor
124388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
14Baffle
15Nut, Bearing
16Front Cover
17WP488787 Whirlpool Refrigerator Screw
18Wiring Assembly, Ice Dispenser
19WP489128 Whirlpool Refrigerator Screw
204317870 Whirlpool Refrigerator Auger Sleeve
