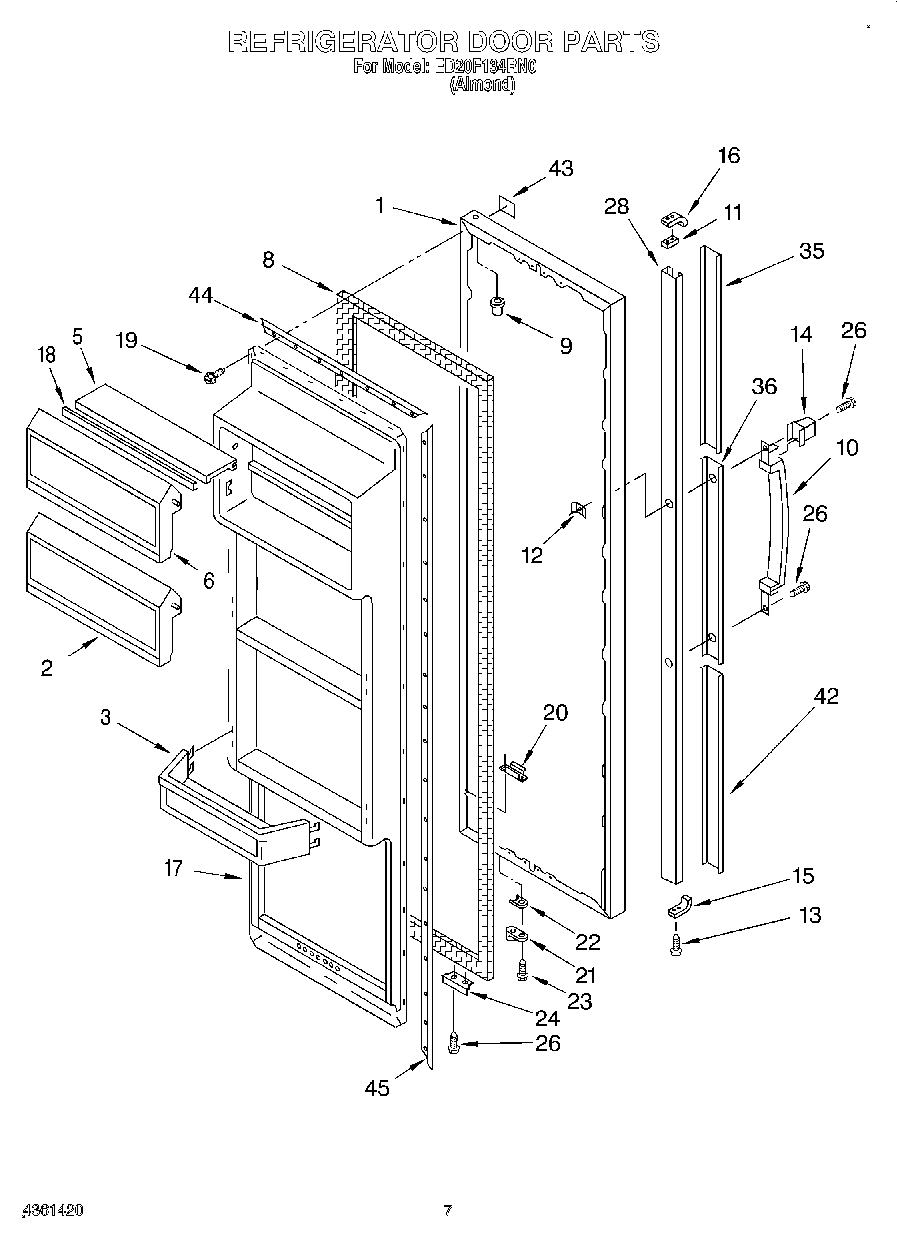

ED20F134RN0 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door
2	Door, Compartment
3	Trim, Shelf (3)
5	Shelf, Compartment
6	Door, Compartment
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle
11	Shim
12	Screw Anchor (2)
13	WP489357 Whirlpool Recessed Screw
14	End Cap, Handle
15	End Cap (Bottom)
16	End Cap (Top)
17	Panel, Interior Door
18	Trim, Interior Door Shelf
20	Tap Plate
21	4318165 Whirlpool Refrigerator Door Closure Cam Kit
22	WP1104787 Whirlpool Refrigerator Shim
23	WP489069 Whirlpool Compactor Screw
24	Bracket, Door Stop
26	Screw, 89 x 5/8
28	Track, Roll
35	Trim, Door-Top
36	Trim, Middle
42	Trim, Door-Bottom
43	Nameplate
44	Gasket Retainer, Top & Bottom
45	Retainer, Gasket
