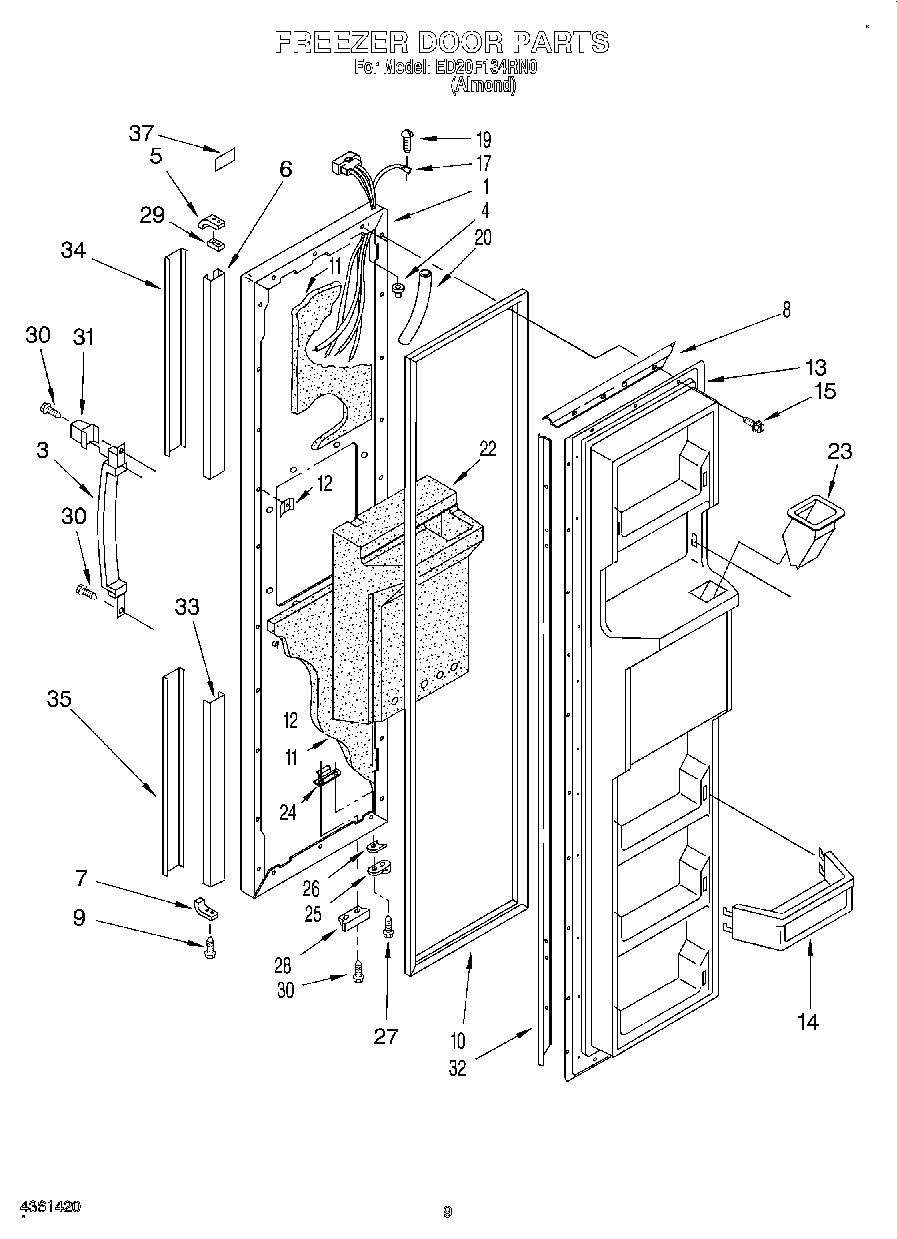

ED20F134RN0 06 – FREEZER DOORadmin2025-04-26T11:50:40+00:00ED20F134RN0 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Also Order Item 11) |
| 3 | Handle |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | End Cap (Top) |
| 6 | Track, Roll-Top |
| 7 | End Cap (Bottom) |
| 8 | Retainer, Gasket |
| 9 | WP489357 Whirlpool Recessed Screw |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | WP939101 Whirlpool Refrigerator Plate |
| 13 | Panel, Interior Door |
| 14 | Trim, Door Shelf (4) |
| 17 | Harness, Door (Includes Illustration 18) |
| 19 | WP489128 Whirlpool Refrigerator Screw |
| 20 | Tube, Door Wiring |
| 22 | Insulation, Dispenser |
| 23 | Chute, Ice |
| 24 | Tap Plate |
| 25 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 26 | WP1104787 Whirlpool Refrigerator Shim |
| 27 | WP489069 Whirlpool Compactor Screw |
| 28 | Bracket, Door Stop |
| 29 | Shim |
| 30 | Screw, 89 x 5/8 |
| 31 | End Cap, Handle |
| 32 | Retainer, Gasket |
| 33 | Track, Roll-Bottom |
| 34 | Trim, Door-Top |
| 35 | Trim, Door-Bottom |
| 37 | Nameplate |
