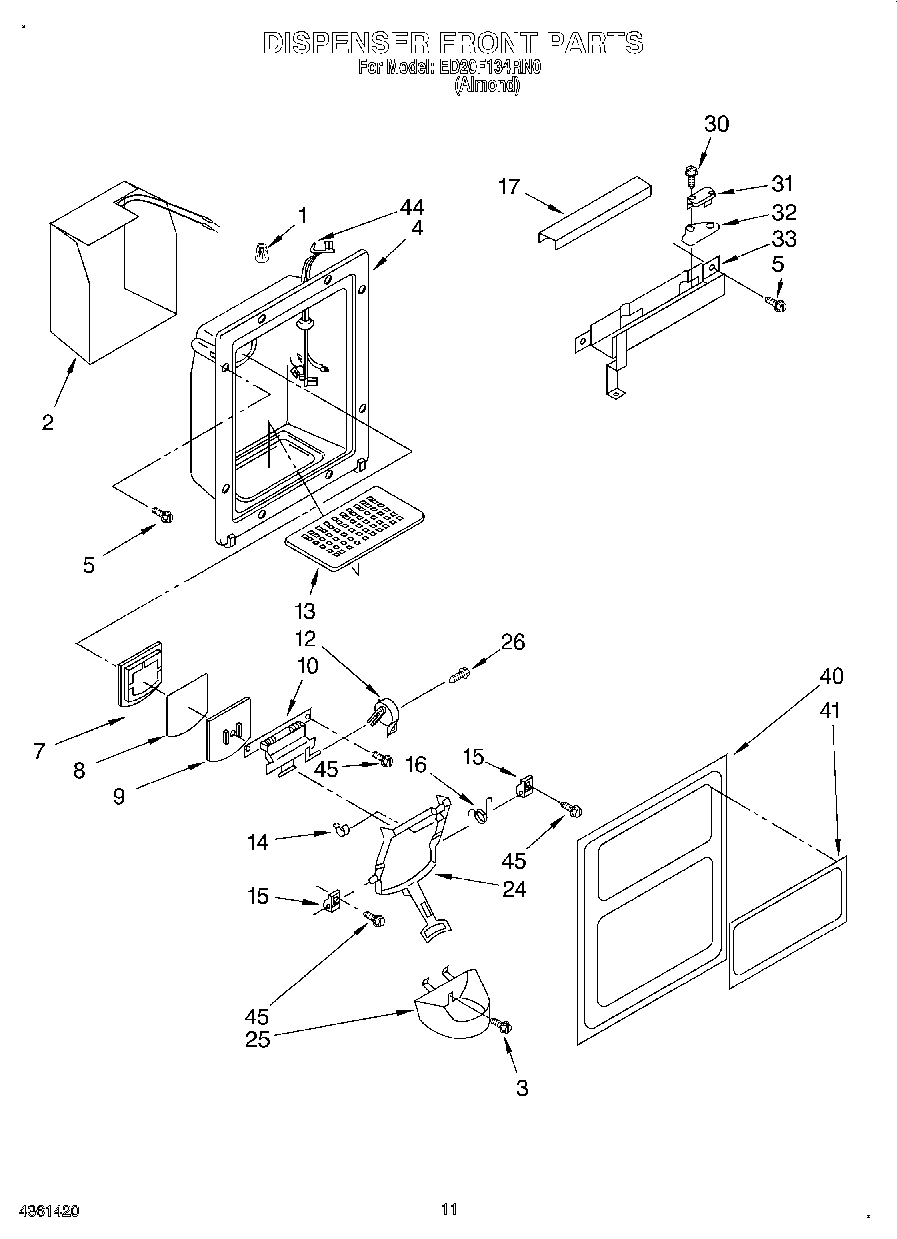

ED20F134RN0 07 – DISPENSER FRONT

Written by

Products

Position	Product
1	Wire Connector
2	Heater, Dispenser
3	Screw
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw, 8-18 x 3/4
30	Screw,
31	814037 Whirlpool Microwave Switch
32	Insulator, Switch (2)
33	Bracket, Control
40	Front Cover, Housing
41	Overlay
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
