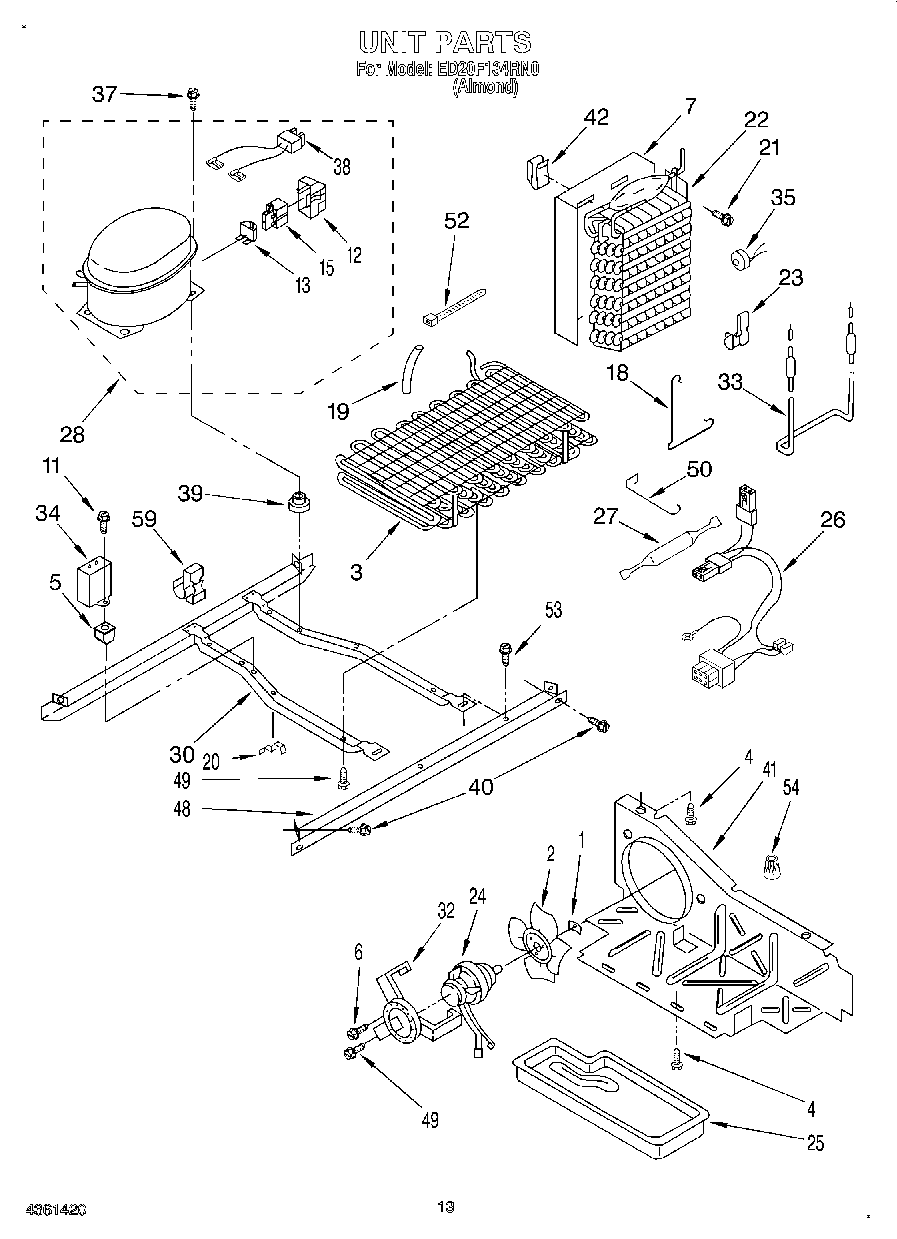

ED20F134RN0 08 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Screw Grommet
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
11	W11693756 Whirlpool Screw Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4388953 Whirlpool Overload Relay
15	Relay (See Overload)
18	Clip, Defrost Heater
19	SLEEVE
20	Clip (2)
21	WP965173 Whirlpool Dishwasher Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assembly, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Running Capacitor (Service)
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
59	VALVE, ACCESS (5/8“)
59	876764 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	Clip, Wire
59	VALVE, ACCESS (1/2“)
59	WP978025 Whirlpool Refrigerator Valve
