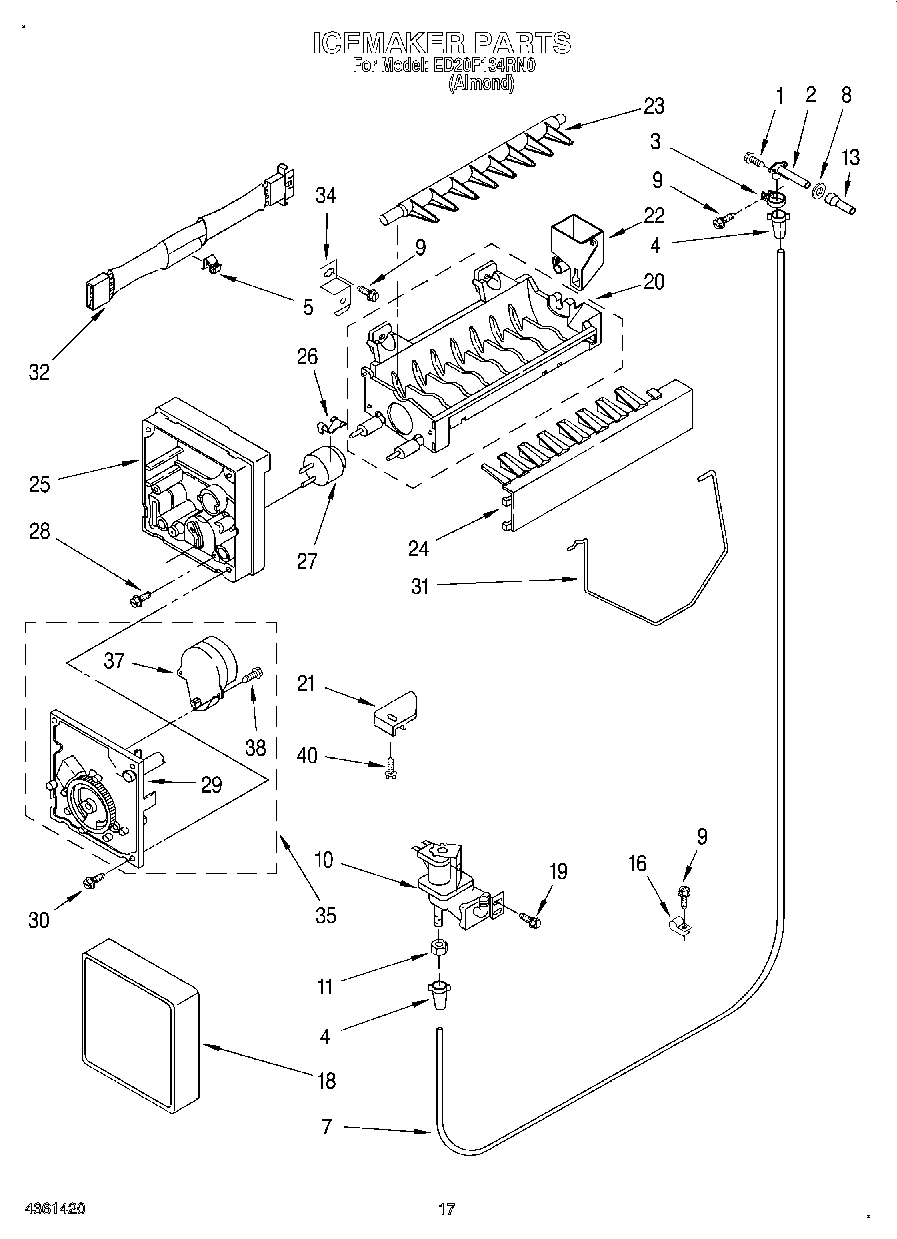

ED20F134RN0 11 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4361420
	WPL LIT2155726
	WPL LIT2155532
	WPL LIT0000000
	Torx Key
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	VALVE-INLT
11	WP627018 Whirlpool Refrigerator Nut
13	Tube, Water Inlet
16	WP488366 Whirlpool Refrigerator Clamp
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W11500948 Whirlpool Refrigerator Bracket
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	Screw, 8-15 x 1/2 (4)
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
34	Clip, Support (2)
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Screw, 8-32 x 27/64
100	350956 Whirlpool Spray Assembly
100	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	350930 Whirlpool White Spray Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	285006 Whirlpool Spray
100	833938 Whirlpool Refrigerator Terminal
100	72032 Whirlpool Touch Up Paint Black
100	799344 Whirlpool Refrigerator Paint
100	WP72107 Whirlpool Touchup
100	Almond (Uncut)
100	Leveler (Thinner)
100	Transformer (115-230 Volt)
100	72113 Whirlpool Touch-Up Paint
100	Golden Harvest
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	212643 Whirlpool Refrigerator Permagum Sealer
100	WPL 72112
100	Platinum (Uncut)
100	Enamal, Toast (1 Qt. Uncut)
100	Paint, Spray (13 Oz.) (Platinum)
100	606755 Whirlpool Refrigerator Bag
100	Golden Harvest (Uncut)
100	876370 Whirlpool Refrigerator Insulation
100	WPL 876029
100	WPL 799833
100	WPL 799832
100	Enamel, Black (1 Qt. Uncut)
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer
100	Toast
