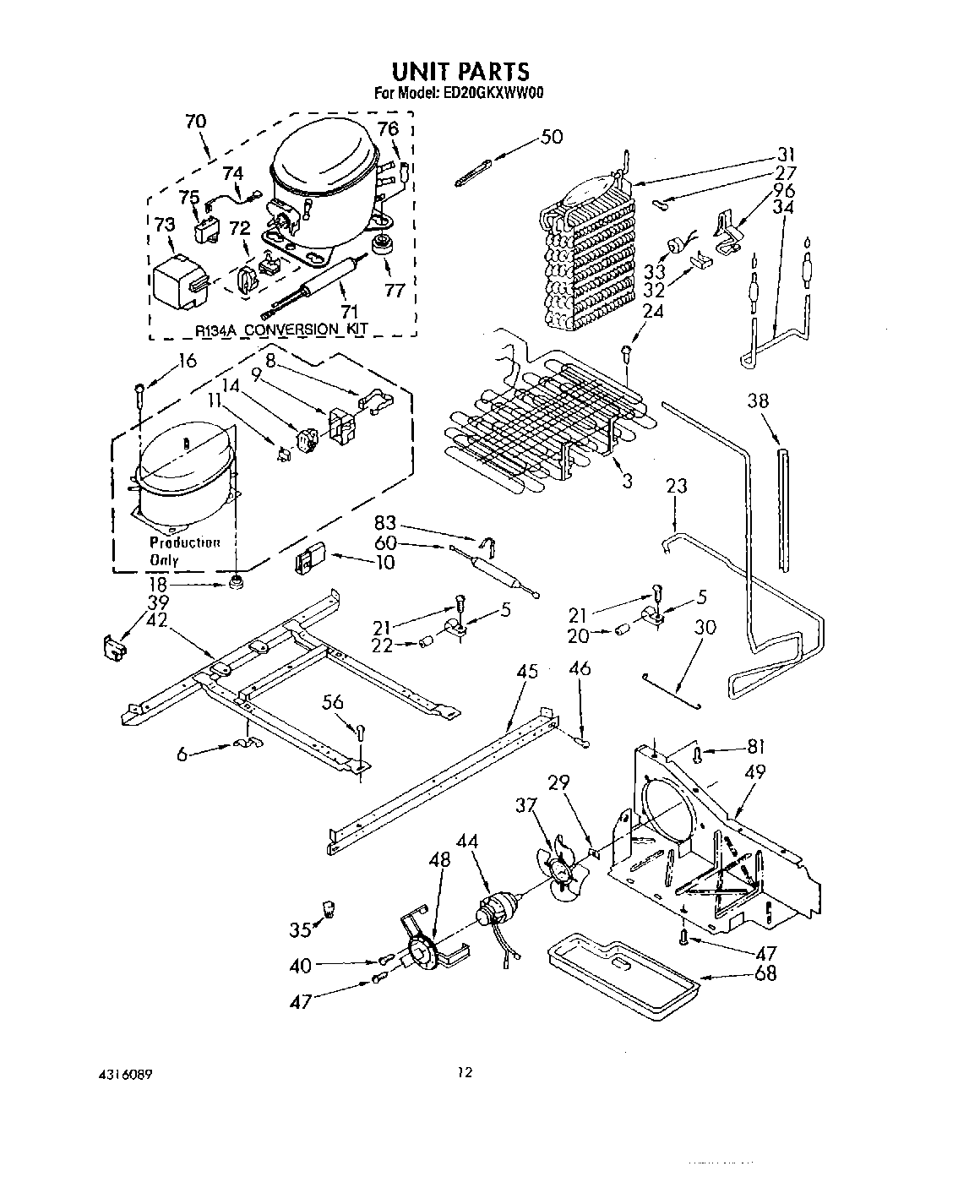

ED20GKXWW00 07 – UNIT

ED20GKXWW00 07 – UNIT

Written by

in

ED20GKXWW00 07 – UNIT

Products

Position	Product
3	Condenser
5	Clamp Tube
6	Clip (2)
8	Strap
9	Cover
10	Housing Plug
11	Overload
14	WP2262181 Whirlpool Refrigerator Start Relay
18	876811 Whirlpool Grommet
20	WP2158826 Whirlpool Refrigerator Dampener
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
27	W11624204 Whirlpool Screw
29	WP486692 Whirlpool Refrigerator Nut
30	1105612 Whirlpool Fan Guard
31	Evaporator
32	Clamp
33	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
34	Heater, Defrost
35	Wire Connector
37	Fan, Blade
38	WP2002171 Whirlpool Refrigerator Sleeve
39	Receptacle, Housing
40	681390 Whirlpool Refrigerator Screw
42	Unit Mounting Frame
44	833697 Whirlpool Condenser Fan Motor
45	Unit Mounting Rail
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Air, Baffle
50	Strap
56	WP489427 Whirlpool Refrigerator Screw
60	W10843121 Whirlpool Refrigerator Tube
68	WPW10614158 Whirlpool Refrigerator Evaporator Tray
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
70	876765 Whirlpool Primary Mounting Kit Refrigerator
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
81	Screw, 8-32 x 1/2
83	Clamp, Dryer
96	VALVE, ACCESS (1/2“)
96	Clamp (4)
96	WP978025 Whirlpool Refrigerator Valve
96	978030 Whirlpool Refrigerator Valve
96	978027 Whirlpool Refrigerator Primary Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	VALVE, ACCESS (5/8“)
96	876764 Whirlpool Refrigerator Primary Valve
