ED20HKXWN00 09 – CONTROL , LIT/OPTIONAL

ED20HKXWN00 09 – CONTROL , LIT/OPTIONAL

Written by

in

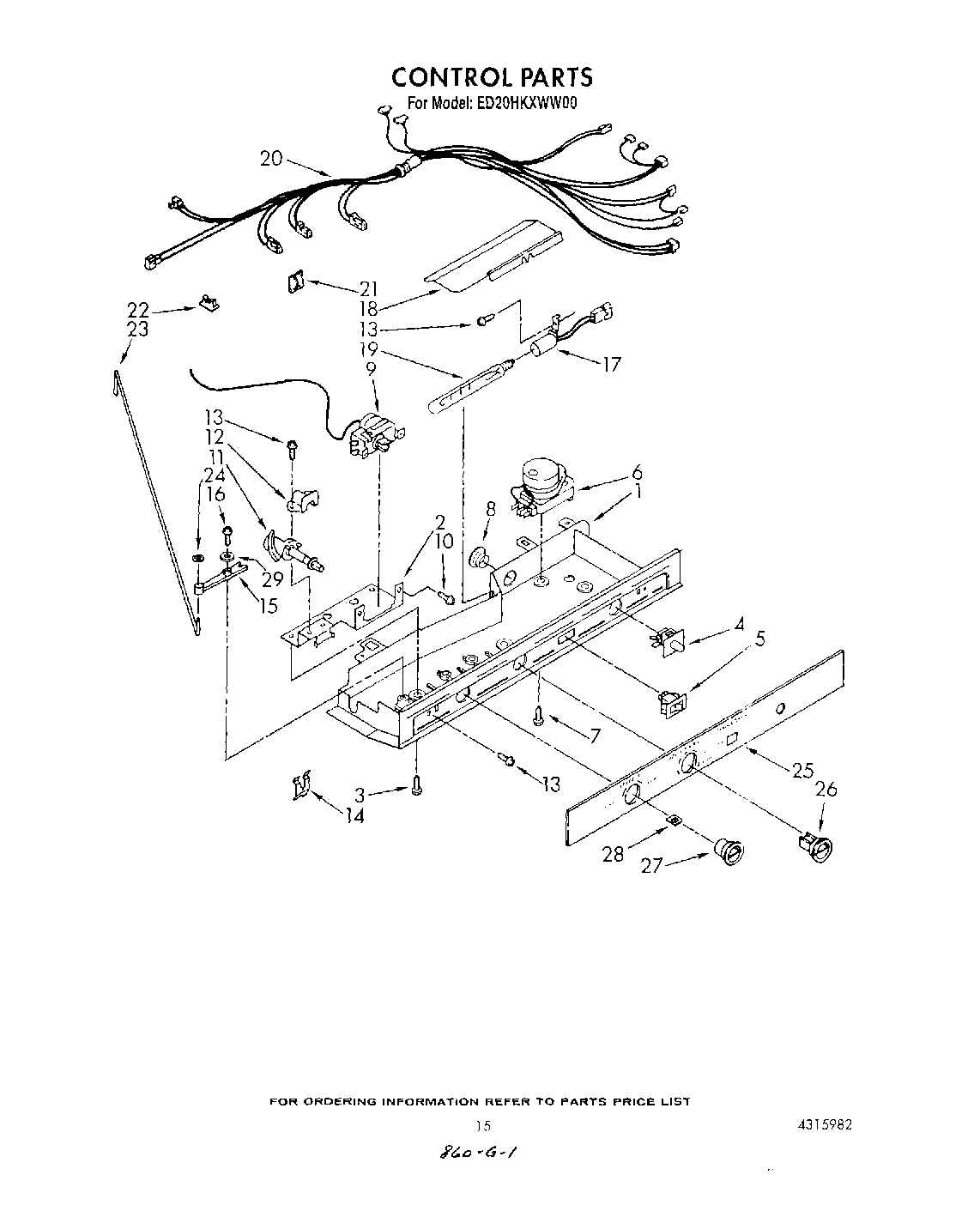

ED20HKXWN00 09 – CONTROL , LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT4315982
	WPL LIT1127820
	WPL LIT1124806
	WPL LIT2148111
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP938213 Whirlpool Refrigerator Power Switch
6	Defrost Timer, (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	Cam Assembly
12	1110560 Whirlpool Refrigerator Bearing
13	W11624204 Whirlpool Screw
14	Retainer, Damper
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	Light Socket
18	Heat Shield
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon Control
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
28	Knob, Retainer
29	799344 Whirlpool Refrigerator Paint
29	WP72107 Whirlpool Touchup
29	Almond (Uncut)
29	350956 Whirlpool Spray Assembly
29	Leveler (Thinner)
29	350930 Whirlpool White Spray Paint
29	Transformer (115-230 Volt)
29	72017 Whirlpool Appliance Touch-Up Paint White
29	212643 Whirlpool Refrigerator Permagum Sealer
29	489203 Whirlpool Refrigerator Washer
29	WP542638 Whirlpool Refrigerator Grease
29	Enamel, Black (1 Qt. Uncut)
29	WPL 799833
29	WPL 876029
29	285006 Whirlpool Spray
29	72032 Whirlpool Touch Up Paint Black
29	WP505587 Whirlpool Refrigerator Sealer
29	WP503695 Whirlpool Refrigerator Sealer
29	876370 Whirlpool Refrigerator Insulation
29	833938 Whirlpool Refrigerator Terminal
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	350942 Whirlpool Spray Paint
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	TAPE, VINYL (3/4 X 108“)
