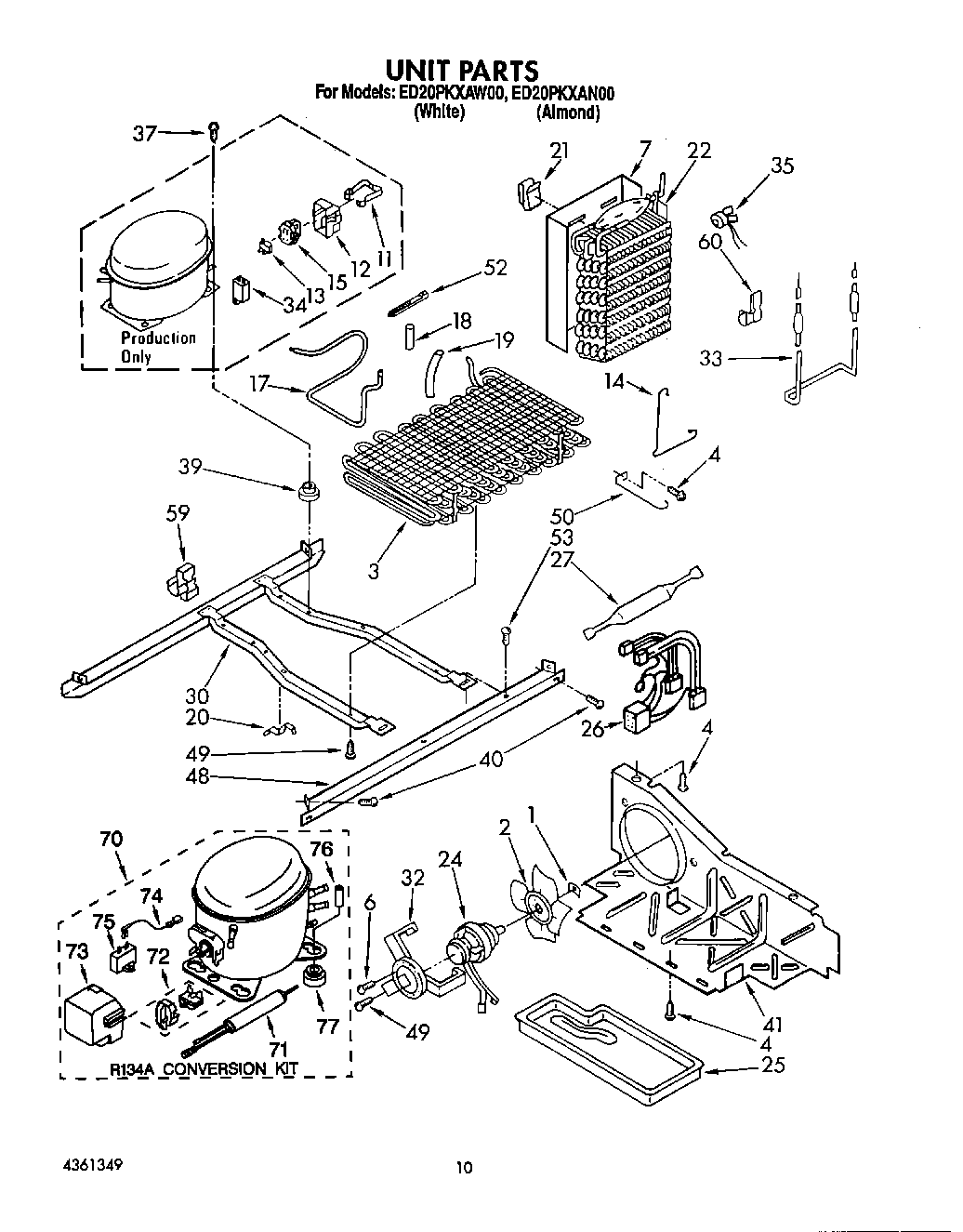

ED20PKXAN00 07 – UNIT

ED20PKXAN00 07 – UNIT

Written by

in

ED20PKXAN00 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
11	case spring
12	Case, Relay
13	WP2149959 Whirlpool Refrigerator Overload
14	Clip, Defrost Heater
15	Relay (SeeOverload)
17	2205764 Whirlpool Refrigerator Tube
18	WP2158826 Whirlpool Refrigerator Dampener
19	SLEEVE
20	Clip (2)
21	Clip, Heat Shield
22	WP2188822 Whirlpool Refrigerator Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assembly, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	WPW10662129 Whirlpool Refrigerator Run Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
59	Clip, Wire
60	Clip
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
70	876765 Whirlpool Primary Mounting Kit Refrigerator
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	876764 Whirlpool Refrigerator Primary Valve
77	978027 Whirlpool Refrigerator Primary Valve
77	978030 Whirlpool Refrigerator Valve
77	VALVE, ACCESS (1/2“)
77	978026 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (5/8“)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	WP978025 Whirlpool Refrigerator Valve
