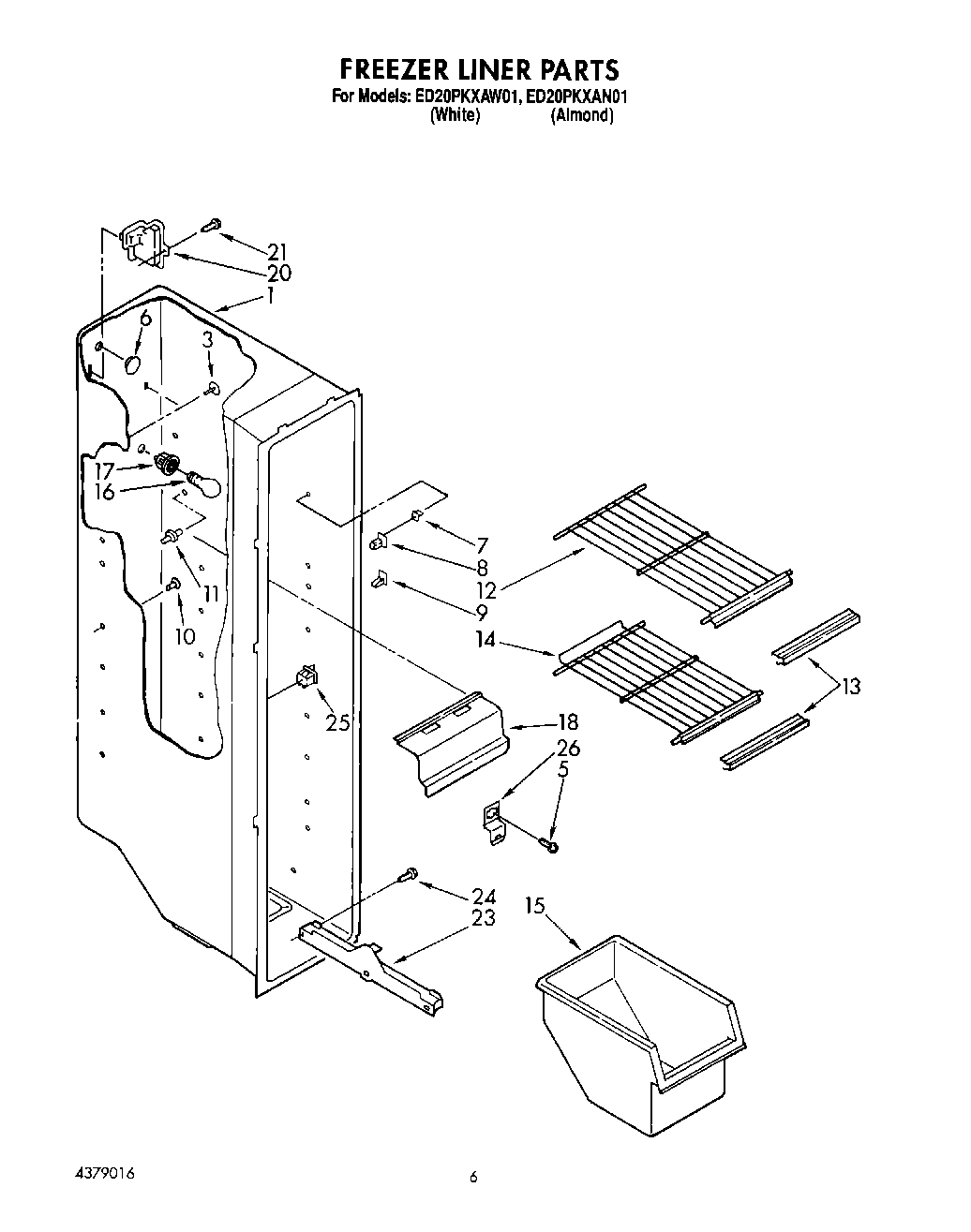

ED20PKXAN01 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	WP941839 Whirlpool Refrigerator Button Plug
5	WP489478 Whirlpool Refrigerator Screw
6	WPL 655411
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf
13	Trim Shelf
14	Shelf (Small 1)
14	Shelf (3)
15	Bin, Freezer
16	RANGE ONLY 40W 120V APPL BULB
17	SOCKET
18	WP2155595 Whirlpool Refrigerator Light Lens
20	Cover, Wiring
21	WP488729 Whirlpool Refrigerator Door Screw
23	Slide, Basket (Left Side)
23	W10845583 Whirlpool Refrigerator Track
24	718257 Whirlpool Dishwasher Screw
25	W11384469 Whirlpool Door Switch
26	Clip, Support (2)
