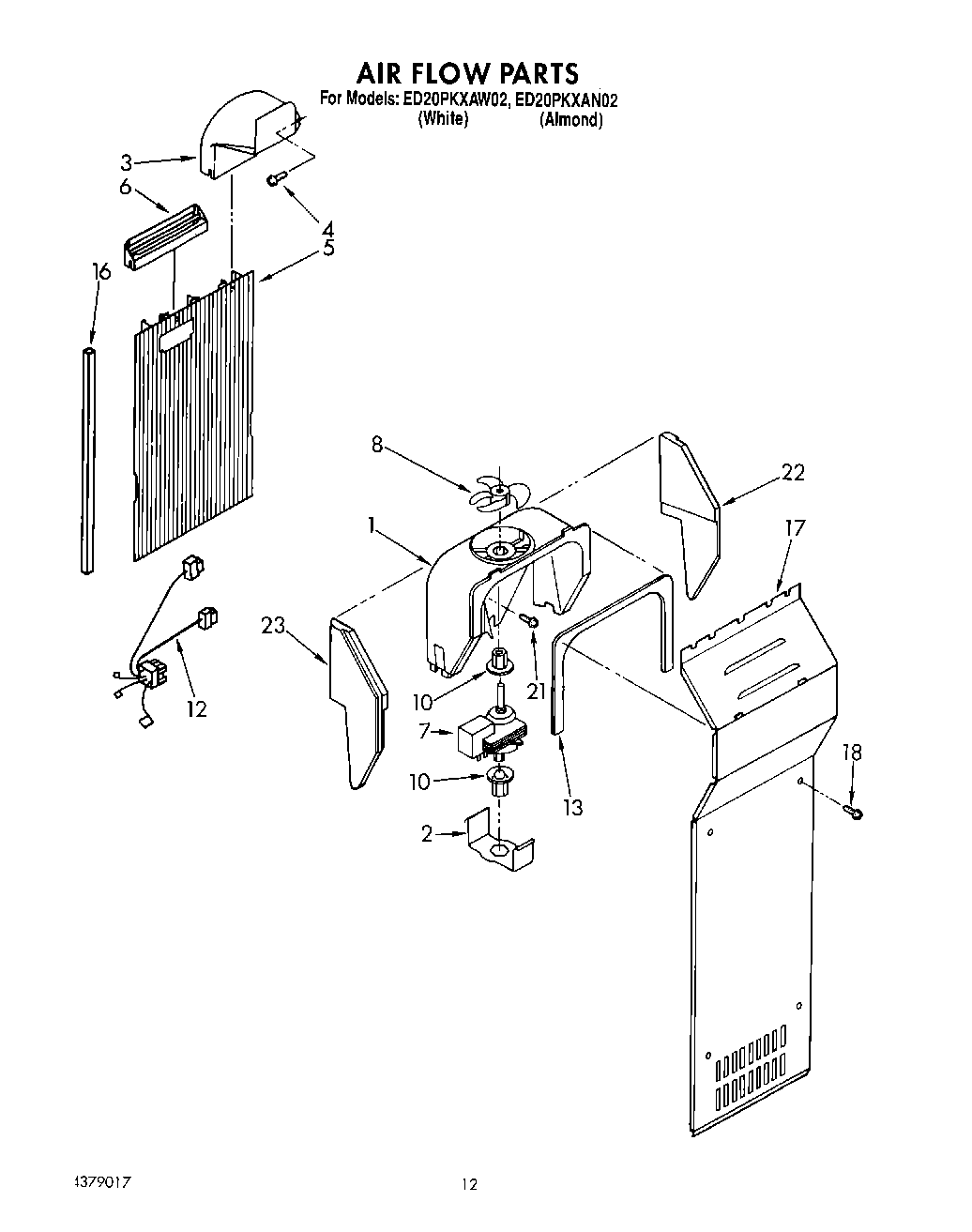

ED20PKXAN02 07 – AIR FLOW, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4379017
	Torx Key
	WPL LIT2155745
	WPL LIT2155531
	WPL LIT2162815
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	4388357 Whirlpool Refrigerator Evaporator Cover
6	Diffuser, Air Duct
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	Grommet, Fan (2)
12	Harness, Fan Evaporator, And Heater, Bi-Metal
13	WP2155789 Whirlpool Refrigerator Gasket
16	WP2304241 Whirlpool Refrigerator Gasket
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
23	WPL 876029
23	285006 Whirlpool Spray
23	72032 Whirlpool Touch Up Paint Black
23	Transformer (115-230 Volt)
23	Leveler (Thinner)
23	WPL 799833
23	Enamel, Black (1 Qt. Uncut)
23	CEMENT, ALUMILASTIC (1 1/4 OZ.)
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	212643 Whirlpool Refrigerator Permagum Sealer
23	350942 Whirlpool Spray Paint
23	TAPE, VINYL (3/4 X 108“)
23	876370 Whirlpool Refrigerator Insulation
23	WP542638 Whirlpool Refrigerator Grease
23	WP505587 Whirlpool Refrigerator Sealer
23	WP503695 Whirlpool Refrigerator Sealer
23	833938 Whirlpool Refrigerator Terminal
23	606755 Whirlpool Refrigerator Bag
23	511873 Whirlpool Refrigerator Paint
23	350930 Whirlpool White Spray Paint
