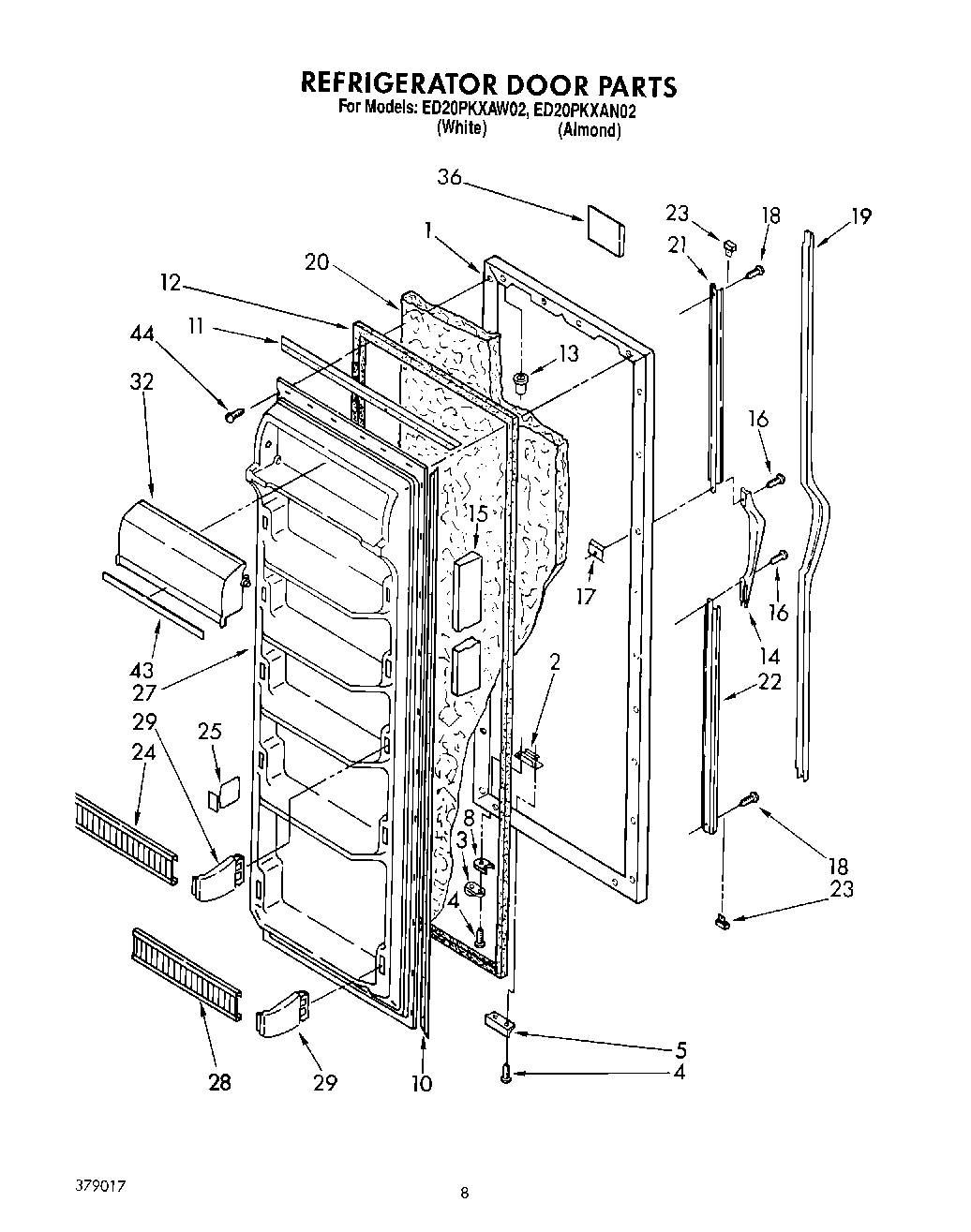

ED20PKXAW02 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond) (Also Order Item 20)
1	Refrigerator Door (White)
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
2	Tap, Plate
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
4	WP999367 Whirlpool Refrigerator Screw
5	Bracket, Door Stop
5	Bracket, Door Stop
8	WP1104787 Whirlpool Refrigerator Shim
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle
15	Reinforcement, Shelf
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP939101 Whirlpool Refrigerator Plate
18	Screw
19	Insert, Handle (Almond)
19	Insert, Handle (White)
20	WPL 876029
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
24	Trim, Door Shelf
25	Divider, Shelf
27	Panel, Interior Door
28	Trim, Door Shelf
29	4388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
32	Door, Compartment
36	Nameplate (Almond Model)
36	Nameplate (White Model)
43	Trim, Compartment Door
