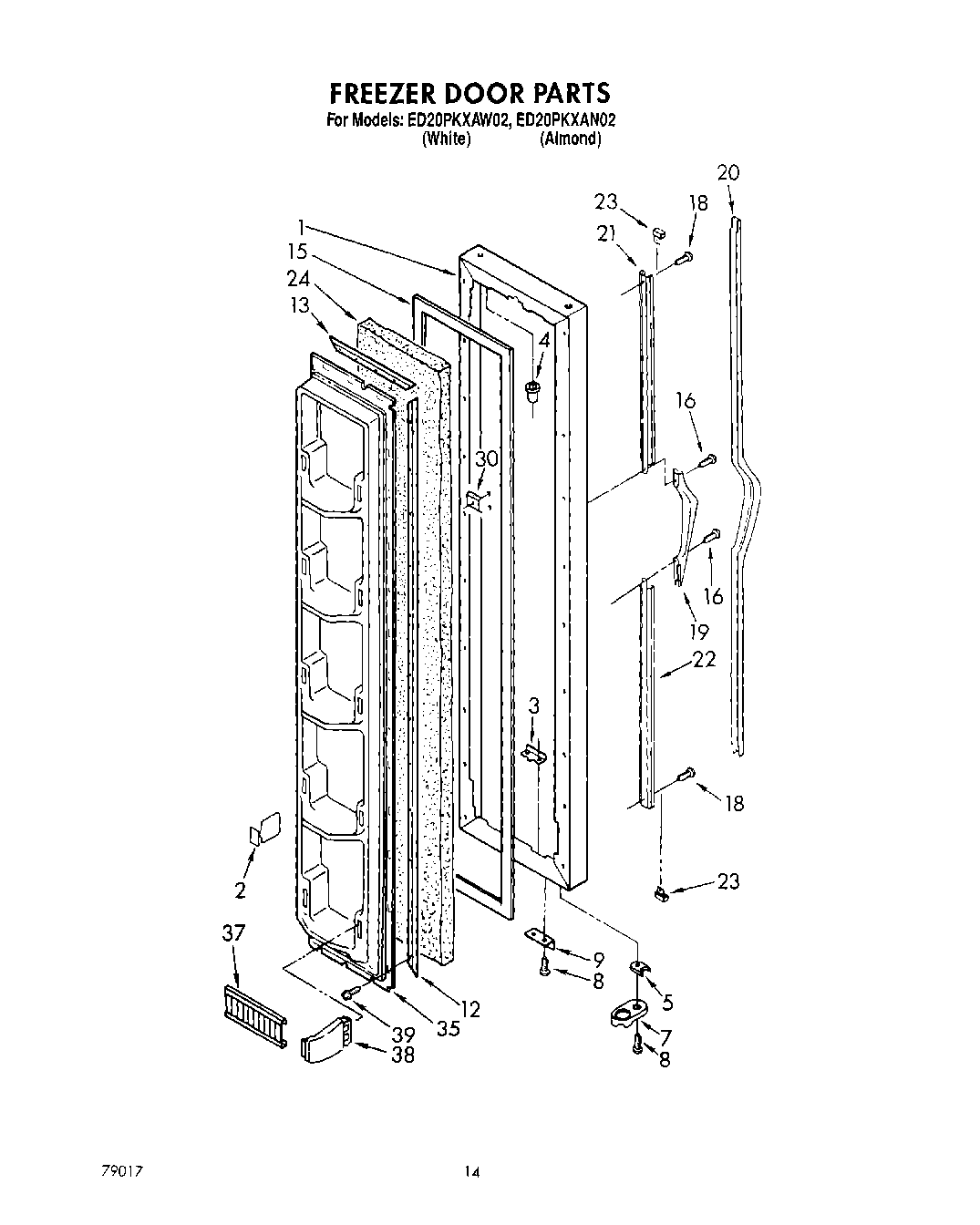

ED20PKXAW02 08 – FREEZER DOORadmin2025-04-26T11:49:42+00:00ED20PKXAW02 08 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Almond) |
| 1 | Freezer, Door Panel (White) |
| 1 | Freezer, Door Panel (Almond (Also Order Item 24)) |
| 1 | Freezer, Door Panel (White) |
| 2 | Divider, Shelf |
| 3 | Tap, Plate |
| 3 | Tap Plate |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | WP1104787 Whirlpool Refrigerator Shim |
| 7 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 8 | WP489069 Whirlpool Compactor Screw |
| 8 | WP999367 Whirlpool Refrigerator Screw |
| 9 | Bracket, Door Stop |
| 9 | Bracket, Door Stop |
| 12 | Retainer, Gasket |
| 13 | Retainer, Gasket |
| 15 | 2188405A Whirlpool Refrigerator Door Gasket |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Screw |
| 19 | Handle |
| 20 | Insert, Handle (Almond) |
| 20 | Insert, Handle (White) |
| 21 | Retainer, Top |
| 22 | Retainer, Bottom |
| 23 | Cap, Handle (2) |
| 24 | WPL 876029 |
| 30 | WP939101 Whirlpool Refrigerator Plate |
| 35 | Panel, Interior Door |
| 37 | Trim, Door Shelf |
| 38 | WP2196100 Whirlpool Shelf Retainer Bar Support |
